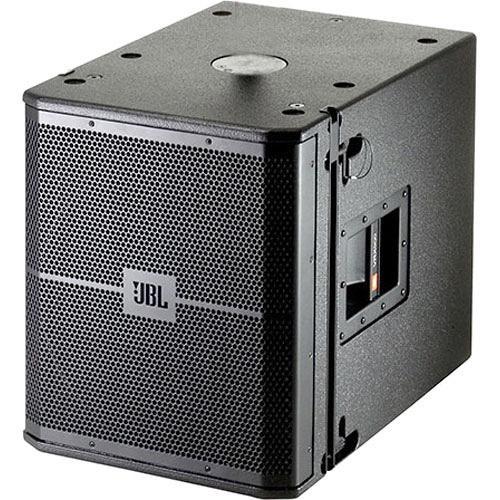

User Manual for JBL VRX915S 15" High-Powered Flying Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL VRX915S 15" High-Powered Flying Subwoofer
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL VRX915S 15" High-Powered Flying Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The white version of the JBL VRX915S 15" High-Powered Flying Subwoofer can be placed on the ground or suspended from the ceiling or appropriately strong Truss in a flown configuration. The subwoofer features a 2268H neodymium magnet that pushes a a patented 15" differential drive woofer. The entire unit is housed in a birch plywood enclosure with a DuraFlex finish with heavy bracing, an acoustic foam lined interior, and covered by a 16-gauge steel grill. This front-loaded, vented enclosure is designed so a minimum front area is exposed to the audience. Multiple units can be daisy chained together to create larger systems. The subwoofer was designed specifically for use in arrays with the VRX932LA Line Array Speaker and VRX-AF Array Frame, but can also be used with other VRX918S subwoofers in a subwoofer dedicated array. The unit can be used in a variety of applications, but is specifically designed for installed applications such as at a nightclub. - 15" Differential Drive
- JBL has included an 15" Differential Drive woofer so you get the extended low-frequency output your busy professional life requires.
- Integral Rigging Hardware
- This subwoofer is designed for flying orientation and to be used with the VRX932LA line arrays and optional array frame.
- Reduced Distortion
- The VRX918S features a large port area so you get a reduced distortion output.
- Satellite Speaker Mounting
- The VRX918S comes with a 20 mm threaded pole socket to ensure a solid, secure satellite speaker mounting.
- Rugged Housing
- The VRX918S is covered by a heavy-duty 16-gauge protective screen-backed steel grill and a DuraFlex enclosure for optimal protection.
In the Box JBL VRX915S 15" High-Powered Flying Subwoofer (White) Power Cord 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VRX915S 15" High-Powered Flying Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL VRX915S 15" High-Powered Flying Subwoofer can be downloaded in PDF format at the link stated below.
Technical parametersJBL VRX918S Specs | | | Configuration | Passive Subwoofer | | Enclosure Type | Bass-Reflex Subwoofer | | Total Power Capacity | 800 W RMS
1600 W Program
3200 W Peak | | System Impedance | 4 Ohms | | | | LF Driver | 1 x 15" / 387 mm Woofer | | | | Frequency Response | 35 Hz to 250 Hz
40 Hz to 250 Hz ±3 dB | | Maximum SPL | 126 dB SPL (Continuous) | | Speaker Sensitivity | 91 dB | | | | Audio I/O | 2 x speakON NL4 Input | | | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 19.5 x 16.5 x 23.5" / 496.0 x 420.0 x 597.0 mm | | Weight | 57 lb / 26 kg | | | | Package Weight | 62.0 lb | | Box Dimensions (LxWxH) | 28.0 x 22.0 x 21.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
