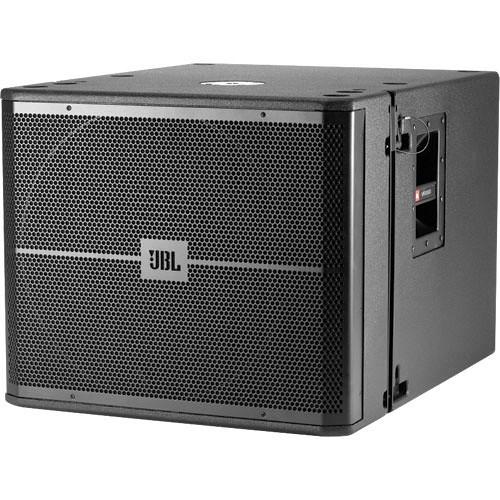

User Manual for JBL VRX918SP 18" Powered Flying Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL VRX918SP 18" Powered Flying Subwoofer
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL VRX918SP 18" Powered Flying Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description If your tour needs the most powerful low frequencies, the VRX918SP 18" Powered Flying Subwoofer from JBL is the obvious choice. This powered subwoofer uses the Drivepack DPC-2 designed by Crown to provide 1500W of peak power to the 18", 2268H Differential Drive woofer for extended low-frequency output. The VRX918S uses internal rigging hardware for connection with optional line-arrays and array frames. A 20mm threaded pole socket is provided for secure satellite speaker mounting. - 18", 2268FF dual voice coil, neodymium magnet Differential Drive woofer is powered by JBL Drivepack DPC-2 amplifier module designed by Crown provides 1500W of peak power
- Distortion is reduced with large port area
- 20mm threaded socket provided for secure satellite speaker placement
UPC: 050036903509 In the Box JBL VRX918SP 18" Powered Flying Subwoofer 120VAC North America NEMA 5-15 Edison Type AC Plug to PowerCon Connector 240V Europe CEE 7/7 Schuko Type AC plug to PowerCon Connector Neutrik (P/N NAC3FCB) PowerCon Connector 5-Year Warranty User Manual PDF 3.3mbetxruvcubfbaxysqryccvs Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VRX918SP 18" Powered Flying Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL VRX918S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1500 W Peak | | Amplifier Class | Class-D | | System Impedance | 2 x 2 Ohms | | | | LF Driver | 1 x 18" / 457.2 mm Woofer | | | | Frequency Range | 31 Hz to 220 Hz | | Maximum SPL | 126 dB | | | | Audio I/O | 1 x XLR Input
1 x XLR Thru | | | | Crossover | 80 / 120 Hz | | Filters | Low-Pass:
80 Hz / 120 Hz
High-Pass:
80 Hz High-Pass is selectable on Thru Output | | | | Construction Material | Plywood | | Dimensions | 20.0 x 23.5 x 29.5" / 508.0 x 297.0 x 749.0 mm | | Weight | 85 lb / 38.5 kg | | | | Package Weight | 98.3 lb | | Box Dimensions (LxWxH) | 32.5 x 25.0 x 22.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
