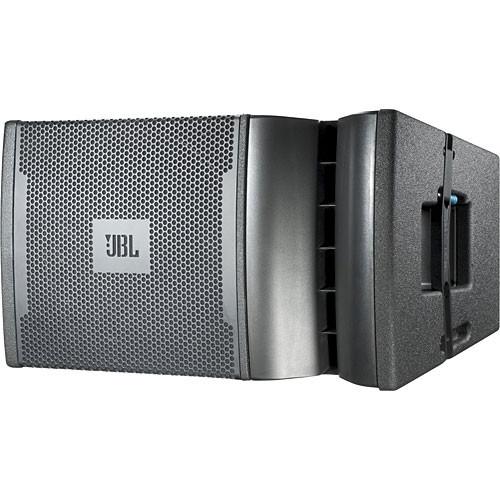

User Manual for JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL VRX932LAP 12" 2-Way Line Array
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL VRX932LAP 12" 2-Way Line Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System in black is designed for playback and sound reinforcement in small to mid sized venues. The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design. The VRX932LAP can be used in arrays of up to five units and works perfectly for entertainers and A/V professionals. If you're in a venue that requires a line array but not very long-throw characteristics, then this fast and easy setup is perfect for your presentation. - Crown Technology
- JBL and Crown worked together to create the built-in DrivePack DPC-2 Amplifier so you get 1750W of power, system optimization and EQ functionality.
- JBL Differential Drive
- JBL's exclusive neodymium Differential Drive woofer gives you high power capacity and still remains its lightweight profile.
- Latest Compression Drivers
- Three 2408J Annular Ring Diaphragm HF drivers are the latest in JBL technology.
- Array Coherence
- With the constant curvature waveguide you get unprecedented array coherence.
- Easy Configuration
- If you're looking to add speakers to form an array the integral rigging hardware provides you with an incredibly simple connection of enclosures and optional array frame.
UPC: 050036903493 In the Box JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black) Product Instructions 5-Year Warranty User Manual PDF 3.3mbzscuudetdxzvyxfcwuxyu Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL VRX932LA Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1750 W Peak
875 W RMS | | System Impedance | LF:
2 x 2 Ohms
HF:
4 Ohms | | | | HF Driver | 3 x Compression Driver | | HF Voice Coil | 1.5" / 3.81 cm | | LF Driver | 1 x 12" / 304.8 mm Woofer | | LF Voice Coil | Dual | | Magnet | HF:
Neodymium | | | | Frequency Response | 75 Hz to 20 kHz | | Maximum SPL | 136 dB | | | | AC Power Connector | 1 x powerCON Input | | | | Construction Material | Plywood | | Dimensions | 13.8 x 23.5 x 17.5" / 34.9 x 59.7 x 44.4 cm | | Weight | 52 lb / 24 kg | | | | Package Weight | 63.4 lb | | Box Dimensions (LxWxH) | 26.0 x 21.5 x 18.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
