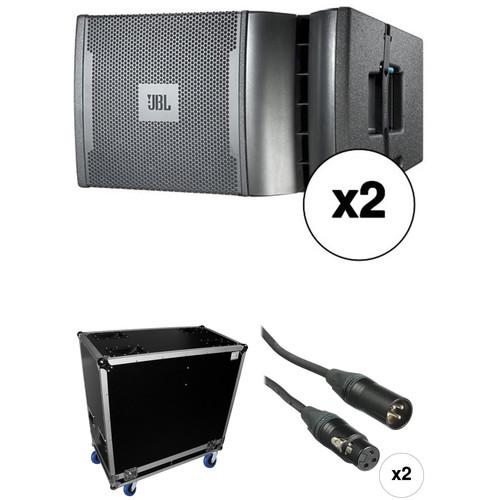

User Manual for JBL VRX932LAP Dual 12" Line Array Loudspeaker System with Case and Cables Kit Click to enlarge the picture
Contents of the user manual for the JBL VRX932LAP Dual 12" Line Array
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL VRX932LAP Dual 12" Line Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The black JBL VRX932LAP Dual 12" Line Array Loudspeaker System with Case and Cables Kit from includes a pair of VRX932LAP 2-way line array speakers with DSP, ProX ATA flight case with casters, and two XLR cables. The kit enables you to comfortably carry and quickly connect your speakers as well as protect them during storage or transport. - 2 x JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black) The JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System in black is designed for playback and sound reinforcement in small to mid sized venues. The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design. The VRX932LAP can be used in arrays of up to five units and works perfectly for entertainers and A/V professionals. If you're in a venue that requires a line array but not very long-throw characteristics, then this fast and easy setup is perfect for your presentation.
- Crown Technology
- JBL and Crown worked together to create the built-in DrivePack DPC-2 Amplifier so you get 1750W of power, system optimization and EQ functionality.
- JBL Differential Drive
- JBL's exclusive neodymium Differential Drive woofer gives you high power capacity and still remains its lightweight profile.
- Latest Compression Drivers
- Three 2408J Annular Ring Diaphragm HF drivers are the latest in JBL technology.
- Array Coherence
- With the constant curvature waveguide you get unprecedented array coherence.
- Easy Configuration
- If you're looking to add speakers to form an array the integral rigging hardware provides you with an incredibly simple connection of enclosures and optional array frame.
UPC: 050036903493 - ProX ATA Flight Case for Two JBL-VRX932LAP Speakers (Black) Store and protect your gear with the black ATA Flight Case for Two JBL-VRX932LAP Speakers from ProX. This tough case is made from black finished 3/8" plywood, with hard rubber lining, heavy-duty ball corners, and industrial rivets. The case can be carried with its recessed, spring-loaded handles or rolled on its 4" casters. To save space and avoid snags, the case closes with recessed, butterfly twist latches.
-
- 3/8 "reinforced layering plywood w/ Matte Black finished laminate
- Inside lined with durable hard foam rubber
- Heavy duty ball corners
- Industrial rivets
- Recessed spring-loaded handles
- Recessed butterfly twist latches
- 4 inch Swivel casters w/ brakes on 2 wheels
- Stackable 4x caster dish on top of each case
UPC: 022099559375 - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - 2 x VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black) wwqrrxaxdfvazedcvzrtaqzc
- Product Instructions
- 5-Year Warranty
- ProX - ATA Flight Case for Two JBL-VRX932LAP Speakers (Black)
- 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VRX932LAP Dual 12" Line Array Loudspeaker System with Case and Cables Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black)
| | | Configuration | Active 2-Way | | Total Power Capacity | 1750 W Peak
875 W RMS | | System Impedance | LF:
2 x 2 Ohms
HF:
4 Ohms | | | | HF Driver | 3 x Compression Driver | | HF Voice Coil | 1.5" / 3.81 cm | | LF Driver | 1 x 12" / 304.8 mm Woofer | | LF Voice Coil | Dual | | Magnet | HF:
Neodymium | | | | Frequency Response | 75 Hz to 20 kHz | | Maximum SPL | 136 dB | | | | AC Power Connector | 1 x powerCON Input | | | | Construction Material | Plywood | | Dimensions | 13.8 x 23.5 x 17.5" / 34.9 x 59.7 x 44.4 cm | | Weight | 52 lb / 24 kg | | | | Box Dimensions (LxWxH) | 26.0 x 21.5 x 18.0" | - ProX ATA Flight Case for Two JBL-VRX932LAP Speakers (Black)
| Type | Case | | Interior Dimensions | 23.5 x 17.5 x 14" / 59.7 x 44.5 x 35.6 cm | | Carrying/Transport Options | Side Handle | | Type of Closure | Latch | | Number of Casters | 4 | | Material of Construction | Aluminum, Plywood, Rubber, Steel | | Exterior Dimensions (W x H x D) | 30.5 x 19.5 x 31" / 77.5 x 49.5 x 78.7 cm | | Weight | 70 lb / 31.8 kg | | | | Box Dimensions (LxWxH) | 32.0 x 30.0 x 21.0" | - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
