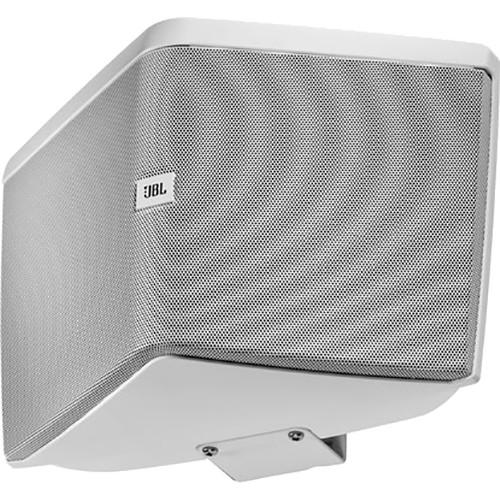

Product description The white Wide-Coverage Speaker with 5 1/4" LF, Dual Tweeters, and HST Technology from JBL offers dual tweeters with a CMMD treat, polyurethane surround, a neodymium magnet, and fluid-cooling. This technology provides the speaker with a high output, low distortion, and humidity resistance. There is a well-damped woofer that incorporates a CMMD ceramic metal matrix diaphragm for a high stiffness-to-weight ratio, high output, resistance to humidity, and long-term durability. The Wide-Coverage Speaker also features noise cancelling technology, allowing it to provide a flatter resulting frequency response and a more consistent sound character throughout the room. Note: The Control HST is designed for wall mounting only; do not mount to a pole. - Dual splayed tweeters for high output, low distortion, and humidity resistance
- Wall facing woofer with a CMMD ceramic metal matrix diaphragm
- Noise cancelling allows the speaker to provide a flatter resulting frequency response and a more consistent sound character
UPC: 691991000782 In the Box JBL Wide-Coverage Speaker with 5 1/4" LF, Dual Tweeters, and HST Technology (White) Mounting U-Bracket Limited 5-Year Warranty Brochure PDF 1.8mbcqtaqeawzzsfscatudyutfwwzrwyaa Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Wide-Coverage Speaker with 5 1 4" LF, Dual Tweeters, and HST Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL CONTROL HST-WH Specs | Frequency Range | At -10 dB: 50 Hz to 20 kHz | | Frequency Response ± 3dB | 68 Hz to 18 kHz | | Coverage Pattern | 180° H x 160° V (1 kHz to 2 kHz, nominal)
160° H x 150° V (ave, 1 kHz to 16 kHz) | | Directivity Factor | 5.4 (1 k to 16 kHz) | | Directivity Index | 7.2 dB (1 k to 16 kHz) | | Power Rating | 100 W (400 W peak), 2 hr
75 W (300 W peak), 100 hr | | Sensitivity | 2.83 V @ 3.3' / 1.0 m: 88 dB (Ave. 80 Hz to 20 kHz) | | Maximum SPL | Direct 8 ohms: 108 dB (peaks of 114 dB)
60 W Tap: 97 dB @ 60 W | | Crossover Network | 1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF | | Nominal Impedance | 8 ohms | | Transformer Taps | 70 V: 60 W, 30 W, 15 W, 7.5W
100 V: 60 W, 30 W, 15 W | | Low Frequency Driver | CMMD ceramic metal matrix diaphragm cone, 1.0" / 25.0 mm voice coil | | High Frequency Drivers | 2 x splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid cooling | | Input Connections | Removable locking euro-block 4-pin connector with screw-down terminals for bare wire
2 x pins for input, 2 x pins for parallel loop-thru
Max wire: 12 AWG (0.1 in² / 2.5 mm²) | | Approvals and Compliance | IP54 per IEC529
Exceeds Mil Spec 810 for humidity, salt spray, temperature, UV, and ASTM G85 for salt spray | | Enclosure | Fiberglass-reinforced ABS | | Attachment | 4 x M6 points for included U-bracket
Additional M6 insert points provided for additional safety cable | | Grille | Aluminum grille | | Dimensions | 14.25 x 10.1 x 7.2" / 36.2 x 25.6 x 18.4 cm
Cabinet depth: 8.2" / 20.8 cm with included bracket | | Weight | 7.9 lb / 3.6 kg With bracket: 9.5 lb / 4.3 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 16.9 x 13.3 x 11.2" |
