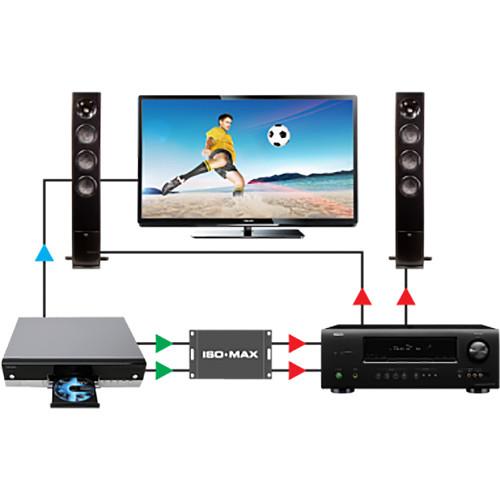

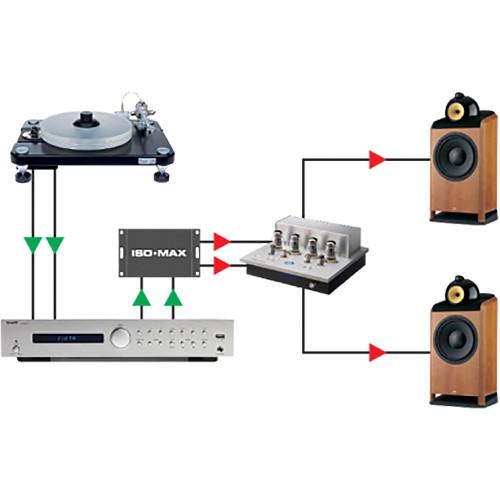

Product description The Jensen Transformers Iso-Max CI-2RR - 2-Channel Ground Isolator is a passive, unbalanced stereo isolator, which prevents and eliminates hum and buzz caused by ground loops. It ensures that music is faithfully delivered without distortion, coloration or artifact, when used with audiophile systems, home theaters, computer sound cards or any other unbalanced audio signals. The CI-2RR features a pair of high-performance Jensen transformers, which deliver pristine audio from 10 Hz to 40 kHz, with low distortion across all frequencies. Furthermore, the transformers are shielded in a MuMETAL can to protect against external magnetic fields and prevent "spectral contamination" due to ultrasonic and RF interference. Easy to set up, with no power required, the Jensen Transformers Iso-Max CI-2RR comes with gold-plated RCA connectors to ensure optimal transfer of the audio signal. The unit is equipped with a rugged steel enclosure that is fitted with screw-down flanges for easy installation in racks or for mounting under shelves and cabinetry. - Key Features
-
- Passive, unbalanced, stereo ground isolator
- Eliminates hum and buzz caused by ground loops
- For use with audiophile systems, home theaters, Hi-Z recording sound cards, car audio systems, and more
- Two Jensen high-performance transformers
- Pristine audio with extended frequency-response from 10 Hz to 40 kHz
- Low distortion – less than 1 dB of deviation, less than 0.05% harmonic distortion, and less than 2° phase-shift at all frequencies
- Transformers are shielded in a MuMETAL can to protect against external magnetic fields and prevent "spectral contamination" due to ultrasonic and RF interference
- Standard, gold-plated RCA connectors
- Rugged, steel enclosure fitted with screw-down flanges for easy installation in racks, under shelves or for attaching to cabinetry
- Plug-and-play, easy to use, no power required
UPC: 676101041398 In the Box Jensen Transformers Iso-Max CI-2RR - 2-Channel Ground Isolator (RCA In/Out) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max CI-2RR - 2-Channel Ground Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers CI-2RR Specs | Type | Passive isolator | | Channels | 2 (stereo) | | Connectors | 2 x RCA, gold-plated, female, unbalanced (inputs)
2 x RCA, gold-plated, female, unbalanced (outputs) | | Frequency Response | 10 Hz to 40 kHz | | Input Impedance | Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 47.0 kOhms
Typical: 48.6 kOhms
Maximum: 50.0 kOhms | | Insertion Loss | 1 kHz, +4 dBu, test circuit 1
Typical: 0.82 dB
Maximum: 1.00 dB | | Magnitude Response | 20 Hz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -0.15 dB
Typical: -0.03 dB
Maximum: ±0.0 dB
20 kHz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -1.0 dB
Typical: -0.70 dB
Maximum: ±0.0 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, +4 dBu, test circuit 1
Typical: +1.4 / -0°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1
Typical: <0.001%
20 Hz, +4 dBu, test circuit 1
Typical: 0.04%
Maximum: 0.10% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: +17 dBu
Typical: +19 dBu | | Common Mode Rejection Ratio | 60 Hz, test circuit 2
Typical: 95 dB
3 kHz, test circuit 2
Typical: 85 dB
| | Output Impedance | Zo, 1 kHz, test circuit 1
Typical: 4.65 kOhms | | Source Impedance | Minimum: 0 Ohm
Typical: 600 Ohms
Maximum: 2 kOhms
(Allowable output impedance of device driving the ISO-MAX input) | | Load Impedance | Minimum: 10 kOhms
Typical: 47 kOhms
Maximum: ∞
(Allowable input impedance of device loading the ISO-MAX output) | | Load Capacitance | Minimum: 0 pF
Typical: 50 pF
Maximum: 100 pF
(Allowable cable and input capacitance loading the ISO-MAX output) | | Optimal Cable Length | Input
Typical: 9.8' / 3 m
Maximum: 26.2' / 8 m | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Maximum: 24 V RMS, 34 V peak
(Input to output, any input to any output shield or any shield to case, 60 Hz) | | Dimension (L x W x H) | 4.32 x 2.6 x 1.45" / 109.70 x 66.00 x 36.80 mm | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 4.8 x 3.4 x 2.3" |
