Product description

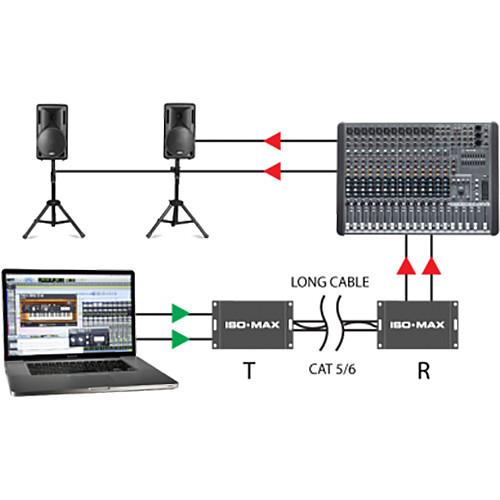

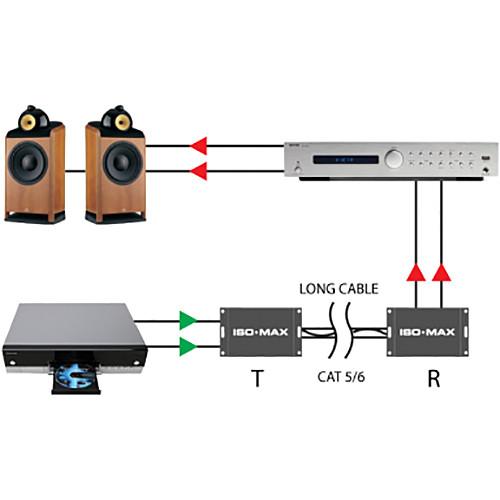

The Jensen Transformers Iso-Max CI-RJ2R is a 2-channel, RCA to Cat5 extender that allows you to transmit a stereo analog audio signal up to 238', while eliminating hum and buzz caused by ground loops and magnetic fields. It includes both a transmitter and receiver module, and ensures that audio is faithfully delivered over pre-wired network cables throughout a facility without any distortion, coloration, or artifact.The Iso-Max CI-RJ2R's receiver features a pair of high-performance Jensen transformers which isolate the input of the connected device and reduce common-mode noise by as much as 124 dB. The set delivers a flat frequency response from 5 Hz to 20 kHz, and can withstand signals in excess of +19 dBv at 20 Hz, without discernible distortion.Easy to set up with no power required, the Iso-Max CI-RJ2R comes with RCA input/output connectors and RJ45 connectors that are compatible with standard Cat5 or Cat6 Ethernet cable. The Expand ports allow you to connect a second set of CI-RJ2R transmitter/receiver modules (available separately), for transmitting a total of four audio channels over the same Ethernet cable. The units are equipped with a rugged steel enclosure fitted with screw-down flanges for easy installation in racks or for mounting under shelves and cabinetry.
    • Stereo, analog audio baluns set with RCA inputs/outputs—includes receiver and transmitter modules
    • Extend audio signal up to 328'
    • Ethernet RJ45 connectors—compatible with standard Cat5 or Cat6 balanced twisted pair Ethernet cable
    • Two Jensen high-performance transformers inside receiver module
    • Eliminates hum and buzz caused by ground loops and magnetic fields
    • Rejects noise by as much as 124 dB
    • Flat frequency response from 5 Hz to 20 kHz
    • Handles signals in excess of +19 dBv at 20 Hz, without discernible distortion
    • Expand ports let you connect a second set of CI-RJ2R transmitter/receiver modules (available separately), for transmitting/receiving a total of four audio channels
    • Rugged steel enclosures fitted with screw-down flanges for easy installation in racks, under shelves, or for attaching to cabinetry
    • Plug-and-play, easy to use, no power required
UPC: 676101041718 In the Box Jensen Transformers Iso-Max CI-RJ2R 2-Channel RCA to Cat5 TX/RX Extender (RCA In/Out)
  • CI-RJ2R-T Transmitter
  • CI-RJ2R-R Receiver
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Jensen Transformers Iso-Max CI-RJ2R 2-Channel RCA to Cat5 TX RX Extender in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Jensen Transformers CI-RJ2R Specs

    Type Passive interface
    Channels 2
    Connectors Transmitter:
    2 x RCA, female, unbalanced (inputs)
    1 x Ethernet RJ45 (output)
    1 x Ethernet RJ45 (expand)

    Receiver:
    2 x RCA, female, unbalanced (outputs)
    1 x Ethernet RJ45 (input)
    1 x Ethernet RJ45 (expand)
    Frequency Response 5 Hz to 20 kHz
    Input Impedance Zi, 1 kHz, -10 dBV
    Typical: 22 kOhms
    Voltage Gain 1 kHz, -10 dBV
    Minimum: -2.0 dB
    Typical: -3.0 dB
    Maximum: -1 dB
    Magnitude Response 20 Hz, -10 dBV
    Minimum: -0.15 dB
    Typical: -0.03 dB
    Maximum: ± 0.0 dB

    20 kHz, -10 dBV
    Minimum: -0.35 dB
    Typical: -0.20 dB
    Maximum: ± 0.0 dB
    Deviation from Linear Phase 20 Hz to 20 kHz, -10 dBV
    Typical: +1.4 / -0°
    Maximum: ± 2.0°
    Distortion (THD) 1 kHz, +2 dBV
    Typical: < 0.001%

    20 Hz, +2 dBV
    Typical: 0.04%
    Maximum: 0.10%
    Maximum Input Level 1% THD
    Minimum: +14 dBV
    Typical: +17 dBV
    Common Mode Rejection Ratio 60 Hz
    Typical: 115 dB

    3 kHz
    Minimum: 80 dB
    Typical: 90 dB
    Output Impedance 1 kHz
    Typical: 5.3 kOhms
    Optimal Cable Length 25' / 8 m (375 pF)
    Typical: 0 dB

    50' / 15 m (750 pF)
    Typical: 0 dB

    100' / 30 m (1.5 nF)
    Typical: -0.2 dB

    250' / 80 m (3.75 nF)
    Typical: -1.0 dB

    350' / 100 m (5.25 nF)
    Typical: -1.7 dB

    (Cable length effect on 20 kHz response in dB, cable at 15 pF per foot)
    Temperature Range 32 to 158°F / 0 to 70°C
    (Operation or storage)
    Voltage Difference Minimum: 250 V RMS
    (Transmitter-to-receiver ground references, 60 Hz, 1 minute test duration)
    Dimensions (L x W x H) 4.32 x 2.6 x 1.45" / 109.7 x 66.0 x 36.8 mm, each
    Package Weight 1.535 lb
    Box Dimensions (LxWxH) 7.9 x 5.45 x 3.55"
