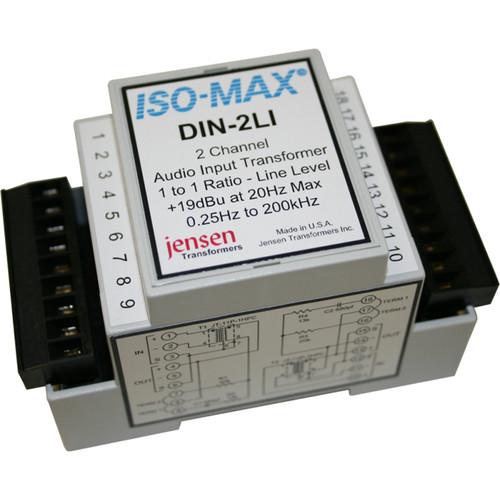

Product description Ideal for use in performance venues, broadcast houses, and broad-scale AV installations, the Jensen Transformers Iso-Max DIN-2LI is a passive, 2-channel line-input isolator, which prevents and eliminates hum and buzz by isolating the input of the connected device. Designed to work with professional, balanced audio systems, it is also capable of attenuating electromagnetic interference (EMI) and radio frequency interference (RFI) problems. The unit is plug-and-play with no power required, and snaps into place onto a standard 35mm DIN rail, for easy installation in a NEMA electrical enclosure. The DIN-2LI features a pair of high-performance Jensen transformers with internal Faraday shields, which eliminate ground loops and reduce common-mode noise by as much as 124 dB. The unit delivers a flat frequency-response from 5 Hz to 40 kHz, and can withstand signals in excess of +19 dB at 20 Hz, without discernible distortion. Connections to and from the Jensen Transformers Iso-Max DIN-2LI are made via removable screw-down wire terminals. The module comes equipped with a gray, molded assembly made from UL94-VO flame-retardant Noryl. - Key Features
-
- Passive, 2-channel line-input isolator for professional, balanced audio systems
- Isolates the input of the connected device

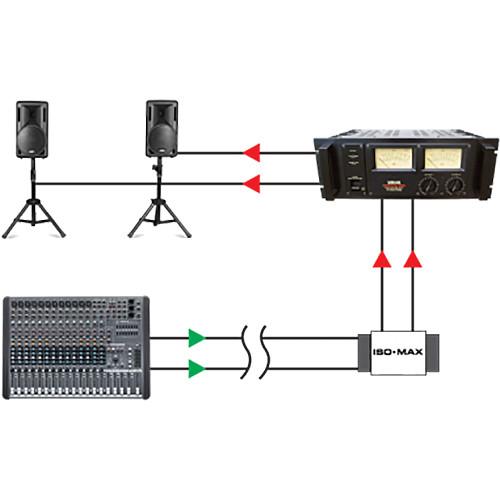

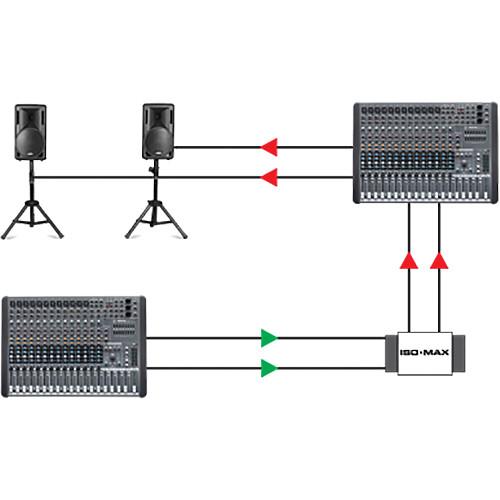

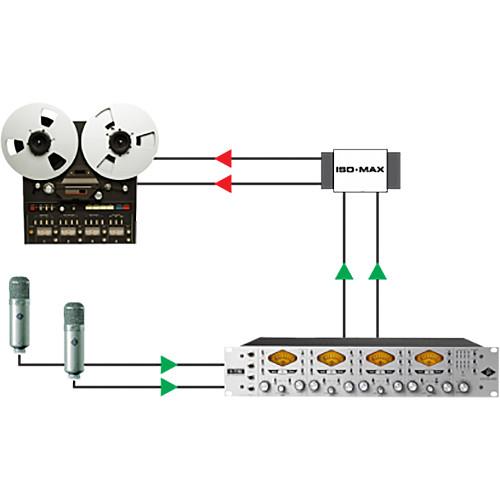

- Connects between the source and the input destination to eliminate hum and buzz caused by ground loops
- Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) problems
- Snaps into place onto a standard 35 mm DIN rail for easy installation in a NEMA electrical enclosure
- Two Jensen high-performance transformers with internal Faraday shields improve rejection of high-frequency buzz by a factor of 100 to 1000 (40 dB to 60 dB) over traditional transformers
- Ruler-flat frequency-response from 5 Hz to 40 kHz
- Handles signals in excess of +19 dB at 20 Hz, without discernible distortion
- Rejects noise by as much as 124 dB
- Connections to and from the module are made via removable screw-down wire terminals
- Made from gray, molded assembly made from UL94-VO flame retardant Noryl
- Plug-and-play, easy to use, no power required
UPC: 676101041749 In the Box Jensen Transformers Iso-Max DIN-2LI - 2-Channel Line-Input Isolator (DIN Rail) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max DIN-2LI - 2-Channel Line-Input Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers DIN-2LI Specs | Type | Passive line-input isolator | | Channels | 2 | | Format | For standard 35 mm DIN rail in National Electrical Manufacturers Association (NEMA) electrical enclosure | | Connectors | Removable, screw-down wire terminals | | Frequency Response | 5 Hz to 40 kHz | | Input Impedance | Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 13.0 kOhms
Typical: 14.1 kOhms
Maximum: 15.0 kOhms | | Voltage Gain | 1 kHz, +4 dBu, test circuit 1
Minimum: -3.2 dB
Typical: -3.0 dB
Maximum: -2.8 dB | | Magnitude Response | 20 Hz, +4 dBu, test circuit 1, ref 1 kHz, Rs = 600 Ohms
Minimum: -0.15 dB
Typical: -0.03 dB
Maximum: ±0.0 dB
20 kHz, +4 dBu, test circuit 1, ref 1 kHz, Rs = 600 Ohms
Minimum: -0.35 dB
Typical: -0.20 dB
Maximum: ±0.0 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, +4 dBu, test circuit 1, Rs = 600 Ohms
Typical: +1.4 / -0°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1, Rs = 600 Ohms
Typical: <0.001%
20 Hz, +4 dBu, test circuit 1, Rs = 600 Ohms
Typical: 0.04%
Maximum: 0.10% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1, Rs = 600 Ohms
Minimum: +17 dBu
Typical: +19 dBu | | Common Mode Rejection Ratio | 60 Hz, test circuit 2
Typical: 124 dB
3 kHz, test circuit 2
Minimum: 85 dB
Typical: 95 dB
60 Hz, test circuit 3
Typical: 95 dB
3 kHz, test circuit 3
Typical: 85 dB
(600 Ohms balanced source) | | Output Impedance | Zo, 1 kHz, test circuit 1, Rs = 600 Ohms
Typical: 3.2 kOhms | | Optimal Cable Length | Output
Typical: 3.3' / 1 m
Maximum: 9.8' / 3 m | | Turn Ratio | Minimum: 0.999:1
Typical: 1.000:1
Maximum: 1.001:1 | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Minimum: 250 V RMS
(Primary or secondary to shield and case, 60 Hz, 1 minute test duration) | | Construction | Gray, molded assembly made from UL94-VO flame-retardant Noryl | | Dimension (L x W x H) | 3.85 x 2.06 x 2.30" / 97.80 x 52.30 x 58.40 mm | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.8 x 3.3 x 3.3" |
