Product description Ideal for use in performance venues, broadcast houses, and broad-scale A/V installations, the Jensen Transformers Iso-Max DIN-LOF is a passive, single-channel line output isolator designed to drive balanced and unbalanced audio signals over long distances, while eliminating hum caused by ground loops. The unit is plug-and-play with no power required, and snaps into place onto a standard 35mm DIN rail, for easy installation in a NEMA electrical enclosure.The DIN-LOF features a high-performance Jensen transformer with internal Faraday shield that isolates the input from the output to reduce common-mode noise by as much as 94 dB. Furthermore, a choice of connection point options allows you to optimize the grounding circuitry to suit your specific installation needs. The unit is capable of withstanding input levels in excess of +21 dB at 20 Hz, without discernible distortion. It delivers an extra-high output level of +21 dBu with a flat frequency response from 10 Hz to 50 kHz.Connections to and from the Iso-Max DIN-LOF are made via removable screw-down wire terminals. The module comes equipped with a gray molded assembly made from UL94-VO flame-retardant Noryl. - Key Features
-
- Passive, single-channel line output isolator for broadcast, A/V, and performance venue installations

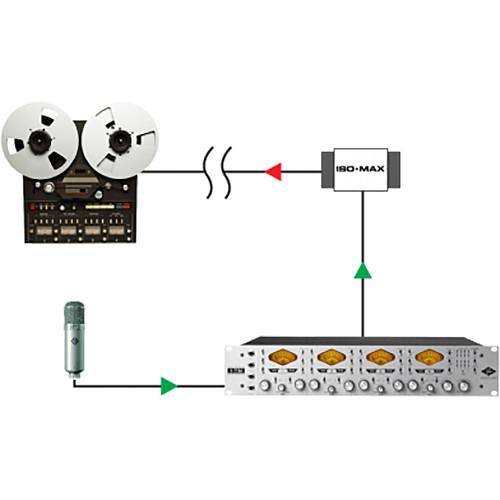

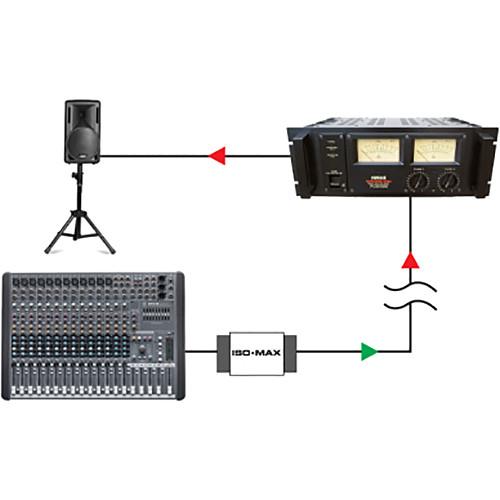

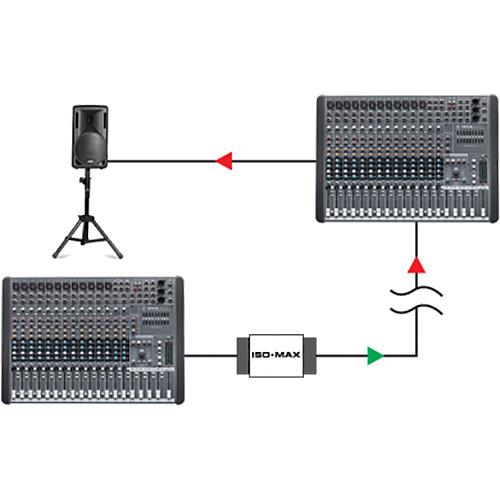

- Drives balanced and unbalanced signals over long distances
- High output at + 21 dBu
- Provides galvanic isolation between input and output to eliminate hum caused by ground loops
- Rejects noise by as much as 94 dB
- Snaps into place onto a standard 35mm DIN rail for easy installation in a NEMA electrical enclosure
- Jensen high-performance transformer
- Flat frequency response from 10 Hz to 50 kHz
- Handles signals in excess of +21 dB at 20 Hz without discernible distortion, with almost zero insertion loss
- Choice of connection point options allows you to optimize grounding scheme to suit your installation
- Connections to and from the module are made via removable screw-down wire terminals
- Made from gray molded assembly made from UL94-VO flame retardant Noryl
- Plug-and-play, easy to use, no power required
UPC: 676101041770 In the Box Jensen Transformers Iso-Max DIN-LOF Single-Channel Line Output Isolator (High Output, DIN Rail) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max DIN-LOF Single-Channel Line Output Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers DIN-LOF Specs | Type | Passive, line output isolator | | Channels | 1 | | Format | For standard 35 mm DIN rail in National Electrical Manufacturers Association (NEMA) electrical enclosure | | Connectors | Removable, screw-down wire terminals | | Frequency Response | 10 Hz to 50 kHz | | Input Impedance | 20 Hz to 20 kHz, 0 dBu, test circuit 3
Minimum: 705 Ohms
Typical: 716 Ohms
Maximum: 725 Ohms | | Voltage Gain | 1 kHz, 0 dBu, test circuit 1, Rs = 0 Ohm
Minimum: -1.8 dB
Typical: -1.6 dB
Maximum: -1.4 dB | | Magnitude Response | 20 Hz, 0 dBu, test circuit 1, ref 1 kHz, Rs = 0 Ohm
Minimum: -0.10 dB
Typical: -0.03 dB
Maximum: ± 0.00 dB
20 kHz, 0 dBu, test circuit 1, ref 1 kHz, Rs = 0 Ohm
Minimum: -0.10 dB
Typical: ± 0.00 dB
Maximum: +0.10 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, 0 dBu, test circuit 1, Rs = 0 Ohm
Typical: +0.3 / -0°
Maximum: ± 1.0° | | Bandwidth | LF -3 dB re 1 kHz, test circuit 1, Rs = 0 Ohm
Typical: 0.20 Hz
HF -3 dB re 1 kHz, test circuit 1, Rs = 0 Ohm
Typical: 15 MHz | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1, Rs = 0 Ohm
Typical: < 0.001%
20 Hz, +4 dBu, test circuit 1, Rs = 0 Ohm
Typical: 0.035%
Maximum: 0.15% | | Maximum Output Level | At 20 Hz, 1% THD, test circuit 1, Rs = 0 Ohm
Minimum: +19 dBu
Typical: +21 dBu | | Common Mode Rejection Ratio | 60 Hz, test circuit 2
Typical: 94 dB
3 kHz, test circuit 2
Minimum: 75 dB
Typical: 83 dB | | Output Impedance | 20 Hz to 20 kHz, 0 dBu, test circuit 4
Typical: 116 Ohms | | Turn Ratio | Minimum: 0.999:1
Typical: 1.000:1
Maximum: 1.001:1 | | Optimal Cable Length | Input
Typical: 164' / 50 m
Maximum: 656' / 200 m
Output
No limitations | | Temperature Range | 32 to 158°F / 0 to 70°C (operation or storage) | | Voltage Difference | Winding to Winding
Minimum: 250 V RMS (60 Hz, 1 minute test duration)
Winding to Frame
Minimum: 500 V RMS (60 Hz, 1 minute test duration) | | Construction | Gray, molded assembly made from UL94-VO flame-retardant Noryl | | Dimension (L x W x H) | 3.85 x 1.42 x 2.30" / 97.8 x 36.06 x 58.4 mm | | | | Package Weight | 0.53 lb | | Box Dimensions (LxWxH) | 4.7 x 3.4 x 2.4" |
