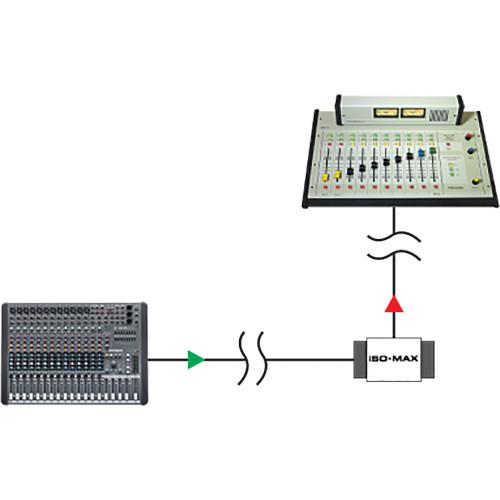

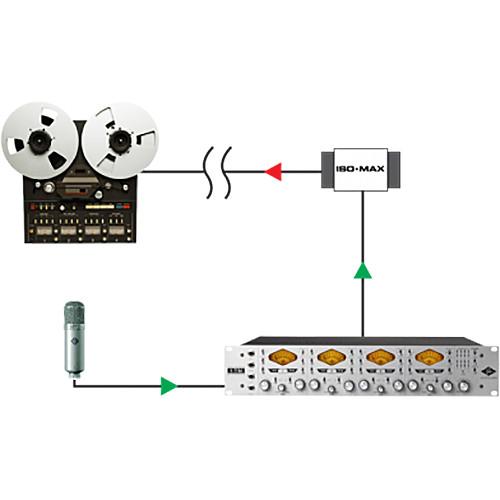

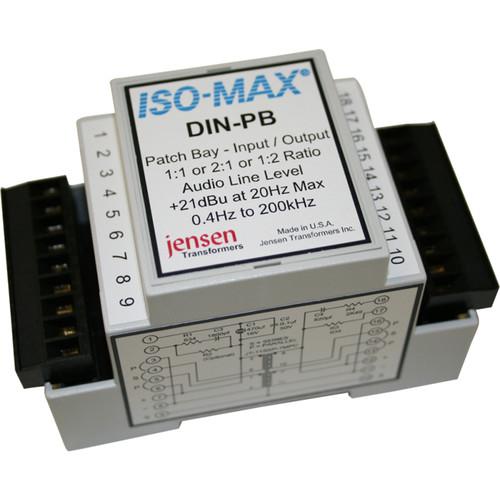

Product description Ideal for use in performance venues, broadcast houses, and broad-scale AV installations, the Jensen Transformers Iso-Max DIN-PB is a passive, single-channel universal line isolator which can be inserted anywhere in the signal chain to prevent and eliminate hum and buzz caused by ground loops. Designed to work with professional, balanced audio systems, it is also capable of attenuating electromagnetic interference (EMI) and radio frequency interference (RFI) problems. The unit is plug-and-play with no power required, and snaps into place onto a standard 35mm DIN rail, for easy installation in a NEMA electrical enclosure. The DIN-PB features a specially designed Jensen multi-tap isolation transformer that provides galvanic isolation between the input and output, reducing common-mode noise by as much as 125 dB. The unit delivers a flat frequency-response from 1 Hz to 200 kHz, and can withstand signals in excess of +24 dB, without discernible distortion. Connections to and from the Jensen Transformers Iso-Max DIN-PB are made via removable screw-down wire terminals. The module comes equipped with a gray, molded assembly made from UL94-VO flame-retardant Noryl. - Key Features
-
- Passive, single-channel universal line isolator
- Snaps into place onto a standard 35mm DIN rail for easy installation in a NEMA electrical enclosure
- Eliminates hum and buzz caused by ground loops
- Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) problems
- Specially designed Jensen multi-tap isolation transformer provides galvanic isolation between the input and output
- May be used anywhere in the signal chain
- Transformer provide unity gain, signal boost or level attenuation depending on configuration
- Ruler-flat frequency-response from 1 Hz to 200 kHz
- Handles signals in excess of +24 dB without discernible distortion
- Rejects noise by as much as 125 dB
- Connections to and from the module are made via removable screw-down wire terminals
- Made from gray, molded assembly made from UL94-VO flame retardant Noryl
- Plug-and-play, easy to use, no power required
UPC: 676101041756 In the Box Jensen Transformers Iso-Max DIN-PB - Single-Channel Universal Line Isolator (DIN Rail) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max DIN-PB - Single-Channel Universal Line Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers DIN-PB Specs | Type | Passive line isolator | | Channels | 1 | | Format | For standard 35 mm DIN rail in National Electrical Manufacturers Association (NEMA) electrical enclosure | | Connectors | Removable, screw-down wire terminals | | Frequency Response | 1 Hz to 200 kHz | | Input Impedance | Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 743 Ohms
Typical: 750 Ohms
Maximum: 757 Ohms | | Voltage Gain | 1 kHz, +4 dBu, test circuit 1
Minimum: -2.1 dB
Typical: -1.9 dB
Maximum: -1.7 dB | | Magnitude Response | 20 Hz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -0.2 dB
Typical: -0.06 dB
Maximum: ±0.0 dB
20 kHz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -1.0 dB
Typical: -0.02 dB
Maximum: +0.1 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, +4 dBu, test circuit 1
Typical: +0.6 / -0°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1
Typical: <0.001%
20 Hz, +4 dBu, test circuit 1
Typical: 0.025%
Maximum: 0.10% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: +19 dBu
Typical: +21 dBu | | Common Mode Rejection Ratio | Input
60 Hz, test circuit 2
Typical: 125 dB
3 kHz, test circuit 2
Minimum: 75 dB
Typical: 95 dB
Output
60 Hz, test circuit 3
Typical: 110 dB
3 kHz, test circuit 3
Typical: 80 dB
(600 Ohms balanced source) | | Output Impedance | Zo, 1 kHz, test circuit 5
Typical: 750 Ohms
(Rs= 600 Ohms) | | Turn Ratio | Minimum: 0.999:1
Typical: 1.000:1
Maximum: 1.001:1
(Primary to secondary) | | Optimal Cable Length | Input
Typical: 164' / 50 m
Maximum: 656' / 200 m
Output
Typical: 98' / 30 m
Maximum: 328' / 100 m | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Minimum: 250 V RMS
(Any input to any output shield or any shield to case, 60 Hz) | | Construction | Gray, molded assembly made from UL94-VO flame-retardant Noryl | | Dimension (L x W x H) | 3.85 x 2.06 x 2.30" / 97.80 x 52.30 x 58.40 mm |
