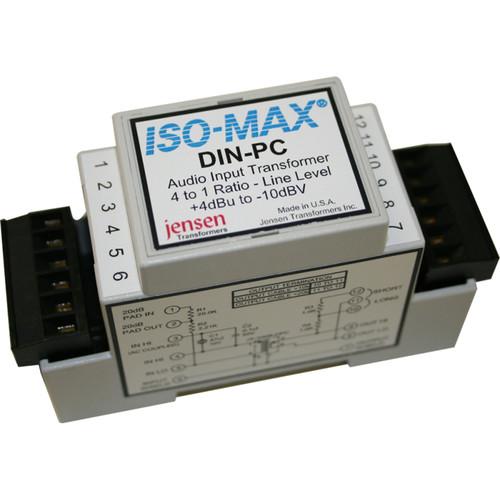

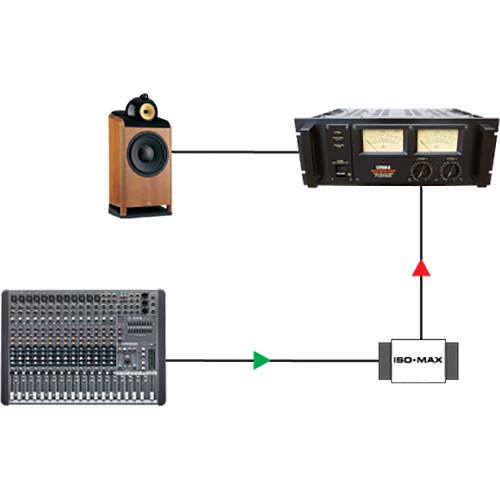

Product description The Jensen Transformers Iso-Max DIN-PC is a single-channel, "pro-to-consumer" line isolator designed to convert a +4 dBu balanced line-level signal to a consumer -10 dBV unbalanced line-level signal, while eliminating hum and buzz caused by ground loops. Ideal for large-scale installations such as performance venues, broadcast houses or AV systems, it allows engineers to connect the balanced output from a mixing desk to the unbalanced input of a hand-held video recorder, laptop, and more. The DIN-PC features a Jensen high-performance transformer that provides galvanic isolation between the input and output, reducing common-mode noise by as much as 120 dB. The unit delivers a flat frequency-response from 10 Hz to 140 kHz, and can withstand signals in excess of +21 dBu down to 20 Hz, without discernible distortion. Connections to and from the Jensen Transformers Iso-Max DIN-PC are made via removable screw-down wire terminals. The module comes equipped with a gray, molded assembly made from UL94-VO flame-retardant Noryl. - Key Features
-
- Converts a professional +4 dBu balanced line-level signal to a consumer -10 dBV unbalanced line-level signal

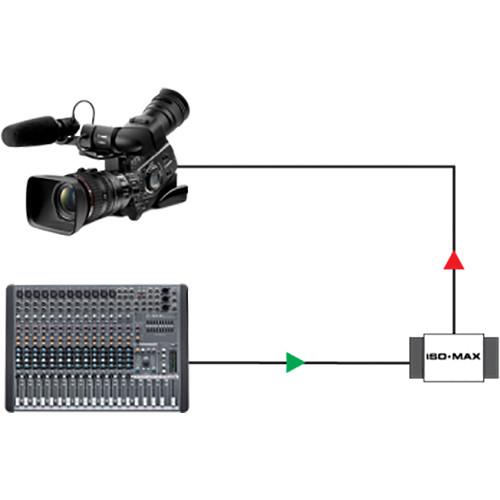

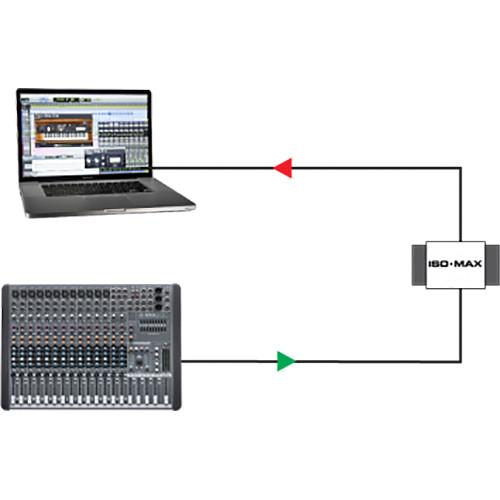

- Connect the balanced output from a mixing desk to the unbalanced input of a hand-held video recorder, laptop, and more
- Passive, single-channel line isolator
- Eliminates hum and buzz caused by ground loops
- Snaps into place onto a standard 35mm DIN rail for easy installation in a NEMA electrical enclosure
- Jensen high-performance transformer provide galvanic isolation between the input and output
- Ruler-flat frequency-response from 10 Hz to 140 kHz
- Handles signals in excess of +21 dBu at 20 Hz, without discernible distortion
- Rejects noise by as much as 120 dB
- Connections to and from the module are made via removable screw-down wire terminals
- Made from gray, molded assembly made from UL94-VO flame retardant Noryl
- Plug-and-play, easy to use, no power required
UPC: 676101041848 In the Box Jensen Transformers Iso-Max DIN-PC - Single-Channel Pro-to-Consumer Line Isolator (DIN Rail) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max DIN-PC - Single-Channel Pro-to-Consumer Line Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers DIN-PC Specs | Type | +4 dBu balanced line-level signal to -10 dBV unbalanced line-level signal converter
Passive line isolator | | Channels | 1 | | Format | For standard 35 mm DIN rail in National Electrical Manufacturers Association (NEMA) electrical enclosure | | Connectors | Removable, screw-down wire terminals | | Frequency Response | 10 Hz to 140 kHz | | Input Impedance | Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 39.4 kOhms
Typical: 41.5 kOhms
Maximum: 43.6 kOhms | | Voltage Gain | 1 kHz, +4 dBu, test circuit 1
Minimum: -13.4 dB
Typical: -12.9 dB
Maximum: -12.4 dB | | Magnitude Response | 20 Hz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -0.15 dB
Typical: -0.04 dB
Maximum: ±0.0 dB
20 kHz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -0.15 dB
Typical: -0.03 dB
Maximum: +0.1 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, +4 dBu, test circuit 1
Typical: +0.6 / -0.1°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1
Typical: <0.001%
20 Hz, +4 dBu, test circuit 1
Typical: 0.015%
Maximum: 0.05% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: +19 dBu
Typical: +21 dBu | | Common Mode Rejection Ratio | Balanced Source, 50 Ohms
60 Hz, test circuit 2
Typical: 120 dB
3 kHz, test circuit 2
Minimum: 70 dB
Typical: 85 dB
Unbalanced Source, 600 Ohms
60 Hz, test circuit 3
Typical: 90 dB
3 kHz, test circuit 3
Typical: 55 dB
| | Output Impedance | Zo, 1 kHz, test circuit 1
Typical: 225 Ohms | | Optimal Cable Length | Output
Typical: 3.2' / 1.0 m
Maximum: 19.6' / 6.0 m | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Minimum: 250 V RMS(Primary to secondary to shield and case, 60 Hz, 1 minute test duration)
| | Construction | Gray, molded assembly made from UL94-VO flame-retardant Noryl | | Dimension (L x W x H) | 3.85 x 1.42 x 2.30" / 97.80 x 36.06 x 58.40 mm | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.75 x 3.25 x 2.25" |
