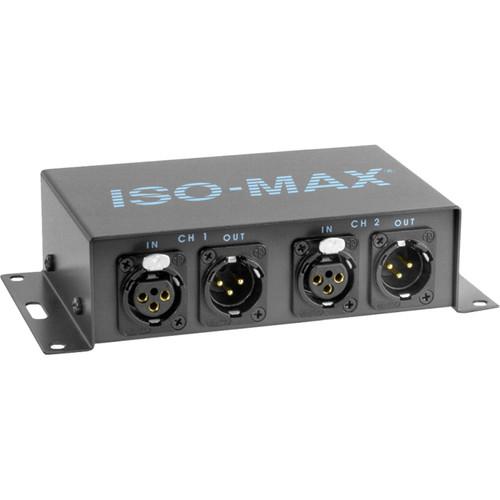

User Manual for Jensen Transformers Iso-Max MS-2XX - 2-Channel Mic Splitter Click to enlarge the picture
Contents of the user manual for the Jensen Transformers Iso-Max MS-2XX - 2-Channel
- Product category: Splitters & Combiners Jensen Transformers
- Brand: Jensen Transformers
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jensen Transformers Splitters & Combiners
|
User manual for the Jensen Transformers Iso-Max MS-2XX - 2-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jensen Transformers product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jensen Transformers user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jensen Transformers product will considerably shorten its lifespan!
|
Product description Designed for use in recording studios, broadcast houses or performance venues, the Jensen Transformers Iso-Max MS-2XX is a passive, two-channel mic splitter that lets you distribute a microphone signal to two consoles at the same time, while attenuating radio frequency interference (RFI) such as AM radio broadcast frequencies. The MS-2XX features two premium Jensen mic bridging transformers, which eliminate ground loops and reduce common-mode noise by as much as 130 dB. An 8-position DIP switch lets you optimize grounding and RF filtering to suit your specific installation needs. The unit delivers a flat frequency-response from 5 Hz to 100 kHz, with low distortion down to 20 Hz. It also passes 48V phantom power for use with condenser microphones. Easy to set up with no power required, the MS-2XX is equipped with a rugged, flanged-steel enclosure, gold-plated XLR connectors, and is well suited to stand up to the rigors of live use. - Key Features
-
- Passive, two-channel mic splitter – lets you take a microphone signal and send it to two consoles at the same time
- High attenuation of RFI (radio frequency interference)
- Two premium Jensen mic bridging transformers equipped with dual Faraday internal shields and external MuMETAL cans
- Stereo isolator sends mic signal to two outputs
- 8-position DIP switch lets you optimize grounding and RF filtering to suit your specific installation needs
- Ruler-flat frequency response from 5 Hz to 100 kHz
- Delivers low distortion down to 20 Hz
- Removable, screw-down terminal block provides direct output and phantom power return for condenser mics – passes 48V phantom
- Standard, gold-plated 3-pin XLR-female input and XLR-male isolated output connectors
- Rugged, flanged-steel enclosure for easy mounting in a rack or inside a NEMA enclosure
- Plug and play, easy to use, no power required
UPC: 676101041565 In the Box Jensen Transformers Iso-Max MS-2XX - 2-Channel Mic Splitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max MS-2XX - 2-Channel Mic Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers MS-2XX Specs | Type | Passive mic splitter | | Channels | 2 | | Connectors | 2 x 3-pin XLR-female, gold-plated (inputs)
2 x 3-pin XLR-male, gold-plated (outputs) | | Frequency Response | 5 Hz to 100 kHz | | Input Impedance | Zi, 1 kHz, -20 dBu, test circuit 1
Minimum: 1 kOhm
Typical: 1.08 kOhms
Maximum: 1.15 kOhms | | Insertion Loss | 1 kHz, -20 dBu, test circuit 1
Minimum: -0.90 dB
Typical: -0.82 dB
Maximum: -0.70 dB | | Magnitude Response | 20 Hz, -20 dBu, test circuit 1
Minimum: -0.25 dB
Typical: -0.09 dB
Maximum: ±0.0 dB
20 kHz, -20 dBu, test circuit 1
Minimum: -0.25 dB
Typical: -0.10 dB
Maximum: +0.1 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, -20 dBu, test circuit 1
Typical: +1.7 / -0°
Maximum: ± 3.0° | | Distortion (THD) | 1 kHz, -20 dBu, test circuit 1
Typical: <0.001%
20 Hz, -20 dBu, test circuit 1
Typical: 0.036%
Maximum: 0.15% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: 0 dBu
Typical: +2.0 dBu | | Common Mode Rejection Ratio | 60 Hz, test circuit 2 / 3
Typical: 130 dB / 155 dB
3 kHz, test circuit 2 / 3
Minimum: 80 dB / 65 dB
Typical: 95 dB / 80 dB
(600 Ohms balanced / unbalanced source) | | Source Impedance | Recommended
Minimum: 0 Ohm
Typical: 150 Ohms
Maximum: 500 Ohms
(Output impedance of device driving ISO-MAX input) | | Load Impedance | Recommended
Minimum: 1.0 kOhms
Typical: 1.5 kOhms
(Input impedance of device loading ISO-MAX output) | | Output Impedance | Typical: 231 Ohms
(Zo, 1 kHz, test circuit 1) | | Optimal Cable Length | Input
Typical: 26' / 8 m
Maximum: 98' / 30 m
Output
Typical: 98' / 30 m
Maximum: 328' / 100 m | | Temperature Range | Minimum: 32° F / 0° C
Maximum: 158° F / 70° C
(Operation or storage) | | Voltage Difference | Maximum: 24 V RMS, 34 V peak
(Input to output, any input to any output shield or any shield to case, 60 Hz)
Not intended for use in circumstances where the DC or peak AC voltage between input and output connections exceeds 34 V or where its failure could cause injury or death | | Dimension (L x W x H) | 6.94 x 3.50 x 1.71" / 176.30 x 88.90 x 43.40 mm | | | | Package Weight | 1.81 lb | | Box Dimensions (LxWxH) | 7.8 x 5.6 x 3.4" |
