User Manual for Jensen Transformers Iso-Max PB-2XX 2-Channel Universal Line Isolator Click to enlarge the picture
Contents of the user manual for the Jensen Transformers Iso-Max PB-2XX 2-Channel Universal
- Product category: Level Matching Transformers Jensen Transformers
- Brand: Jensen Transformers
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jensen Transformers Level Matching Transformers
 |
User manual for the Jensen Transformers Iso-Max PB-2XX 2-Channel Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jensen Transformers product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jensen Transformers user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jensen Transformers product will considerably shorten its lifespan!
|

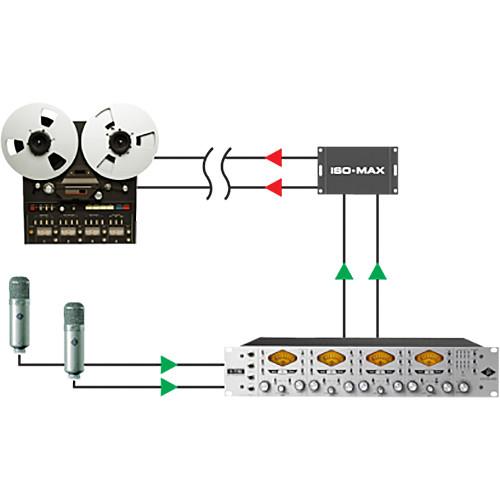

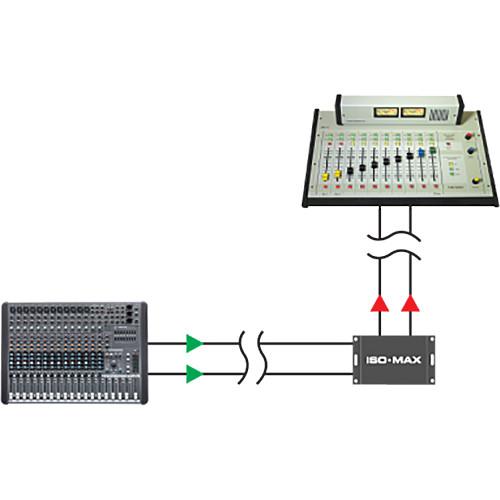

Product description Designed to be used anywhere in the signal chain, the Jensen Transformers Iso-Max PB-2XX is a passive, 2-channel universal line isolator that provides galvanic isolation between its inputs and outputs, to eliminate hum and buzz caused by ground loops. It also attenuates electromagnetic interference (EMI) and radio frequency interference (RFI) problems, making it an ideal tool for use in recording studios, broadcast houses or performance venues. The PB-2XX features a pair of specially designed Jensen multi-tap isolation transformers, which eliminate ground loops and reduce common-mode noise by as much as 125 dB. An 8-position DIP switch lets you optimize grounding and RF filtering to suit your specific installation needs. The unit delivers a flat frequency-response from 1 Hz to 200 kHz, and can withstand signals in excess of +24 dB, without discernible distortion. Easy to set up, with no power required, the PB-2XX comes with a removable screw-down barrier strip for quick installation in NEMA enclosures and 19" racks. The device is equipped with a rugged, flanged-steel enclosure, gold-plated XLR connectors, and is well-suited to stand up to the rigors of live use. - Key Features
-
- Passive, two-channel universal line isolator
- Eliminates hum and buzz caused by ground loops
- Reduces electromagnetic interference (EMI)
- High attenuation of radio frequency interference (RFI)
- Two specially designed Jensen multi-tap isolation transformers provide galvanic isolation between the inputs and outputs
- May be used anywhere in the signal chain
- Transformers provide unity gain, signal boost or level attenuation depending on configuration
- Ruler-flat frequency response from 1 Hz to 200 kHz
- Handles signals in excess of +24 dB without discernible distortion
- Rejects noise by as much as 125 dB
- 8-position DIP switch lets you optimize grounding and RF filtering to suit your specific installation needs
- Removable, screw down barrier strip for easy installation in NEMA enclosures and 19” racks
- Standard, gold-plated 3-pin XLR-female input and XLR-male output connectors
- Rugged, flanged-steel enclosure
- Plug-and-play, easy to use, no power required
UPC: 676101041626 In the Box Jensen Transformers Iso-Max PB-2XX 2-Channel Universal Line Isolator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max PB-2XX 2-Channel Universal Line Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers PB-2XX Specs | Type | Passive line isolator | | Channels | 2 | | Connectors | 2 x 3-pin XLR-female, gold-plated (inputs)
2 x 3-pin XLR-male, gold-plated (outputs) | | Frequency Response | 1 Hz to 200 kHz | | Input Impedance | Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 743 Ohms
Typical: 750 Ohms
Maximum: 757 Ohms | | Voltage Gain | 1 kHz, +4 dBu, test circuit 1
Minimum: -2.1 dB
Typical: -1.9 dB
Maximum: -1.7 dB | | Magnitude Response | 20 Hz, +4 dBu, test circuit 1
Minimum: -0.2 dB
Typical: -0.06 dB
Maximum: ±0.0 dB
20 kHz, +4 dBu, test circuit 1
Minimum: -1.0 dB
Typical: -0.02 dB
Maximum: +0.1 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, +4 dBu, test circuit 1
Typical: +0.6 / -0°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1
Typical: <0.001%
20 Hz, +4 dBu, test circuit 1
Typical: 0.025%
Maximum: 0.10% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: +19 dBu
Typical: +21 dBu | | Common Mode Rejection Ratio | Input, 60 Hz, test circuit 2
Typical: 125 dB
Input, 3 kHz, test circuit 2
Minimum: 75 dB
Typical: 95 dB
Output, 60 Hz, test circuit 3
Typical: 110 dB
Output, 3 kHz, test circuit 3
Typical: 80 dB
(600 Ohms balanced / unbalanced source) | | Output Impedance | 1 kHz, test circuit 1
Typical: 750 Ohms | | Turn Ratio | Primary to secondary
Minimum: 0.999:1
Typical: 1.000:1
Maximum: 1.001:1 | | Optimal Cable Length | Input
Typical: 164' / 50 m
Maximum: 656' / 200 m
Output
Typical: 98' / 30 m
Maximum: 328' / 100 m | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Maximum: 250 V RMS
(Input to output, any input to any output shield or any shield to case, 60 Hz) | | Dimension (L x W x H) | 6.94 x 3.50 x 1.71" / 176.30 x 88.90 x 43.40 mm | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 7.8 x 5.4 x 3.5" |
