Product description The Jensen Transformers Iso-Max PI-2XR is a passive, 2-channel line-input isolator which prevents and eliminates hum and buzz by isolating the input of the connected device. It also attenuates electromagnetic interference (EMI) and radio frequency interference (RFI) problems, making it an ideal tool for use in recording studios, broadcast houses or performance venues. The PI-2XR features a pair of high-performance Jensen transformers with internal Faraday shields, which eliminate ground loops and reduce common-mode noise by as much as 124 dB. An 8-position DIP switch lets you optimize grounding and RF filtering to suit your specific installation needs. The unit delivers a flat frequency-response from 5 Hz to 40 kHz, and can withstand signals in excess of +19 dB at 20 Hz, without discernible distortion. Easy to set up, with no power required, the PI-2XR comes with a removable screw-down barrier strip for quick installation in NEMA enclosures and 19" racks. It features a pair of gold-plated XLR input connectors and a pair of RCA connectors for applications with unbalanced audio systems. The device is equipped with a rugged, flanged-steel enclosure and is well-suited to stand up to the rigors of live use. - Key Features
-
- Passive, two-channel line-input isolator
- Isolates the input of the connected device
- Connects between the source and the input destination to eliminate hum and buzz caused by ground loops
- Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) problems
- Two Jensen high-performance transformers with internal Faraday shields improve rejection of high-frequency buzz by a factor of 100 to 1000 (40 dB to 60 dB) over traditional transformers
- Ruler-flat frequency-response from 5 Hz to 40 kHz
- Handles signals in excess of +19 dB at 20 Hz, without discernible distortion
- Rejects noise by as much as 124 dB

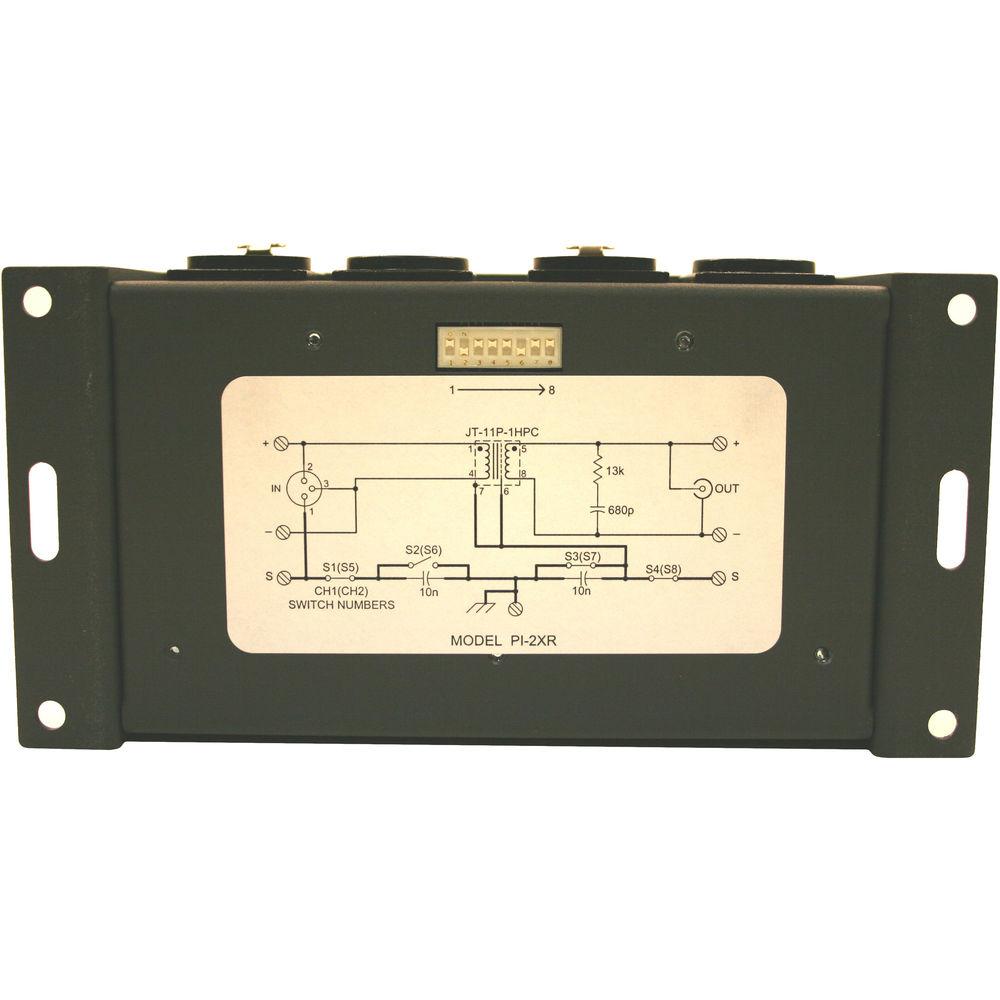

- 8-position DIP switch lets you optimize grounding and RF filtering to suit your specific installation needs

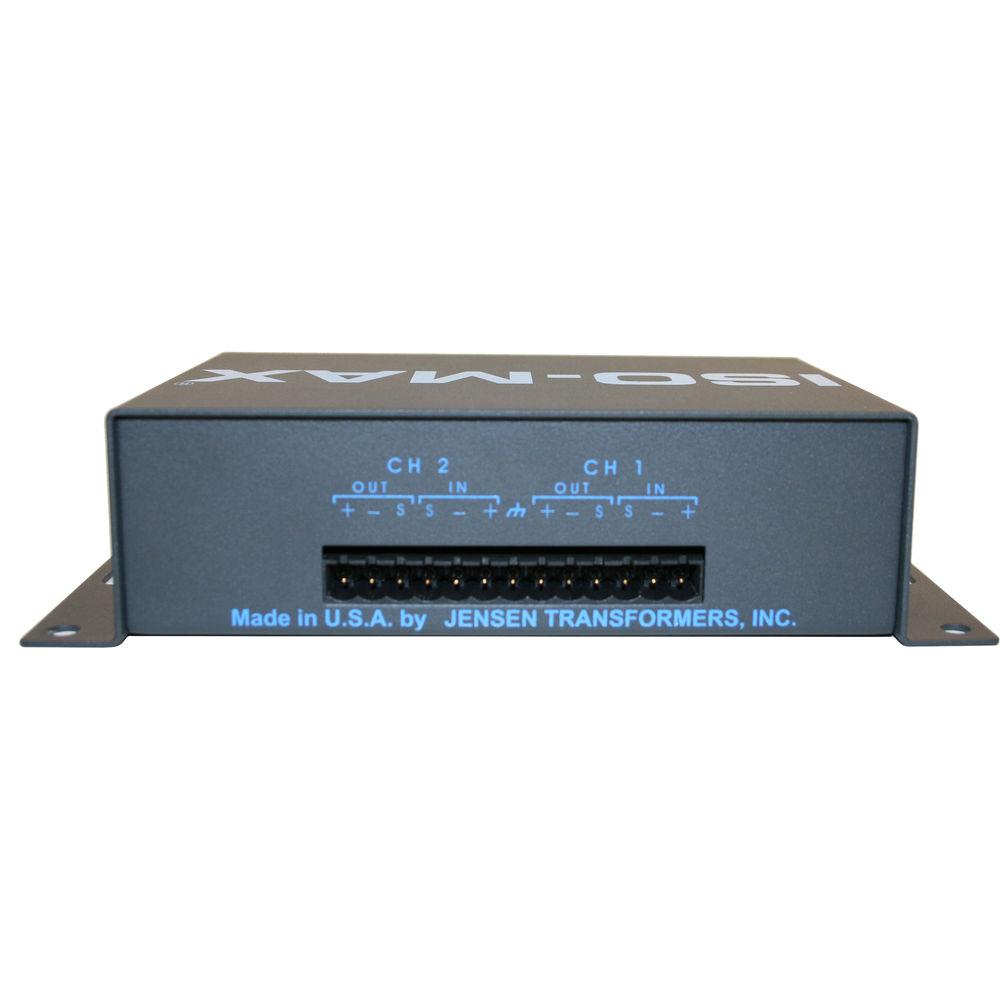

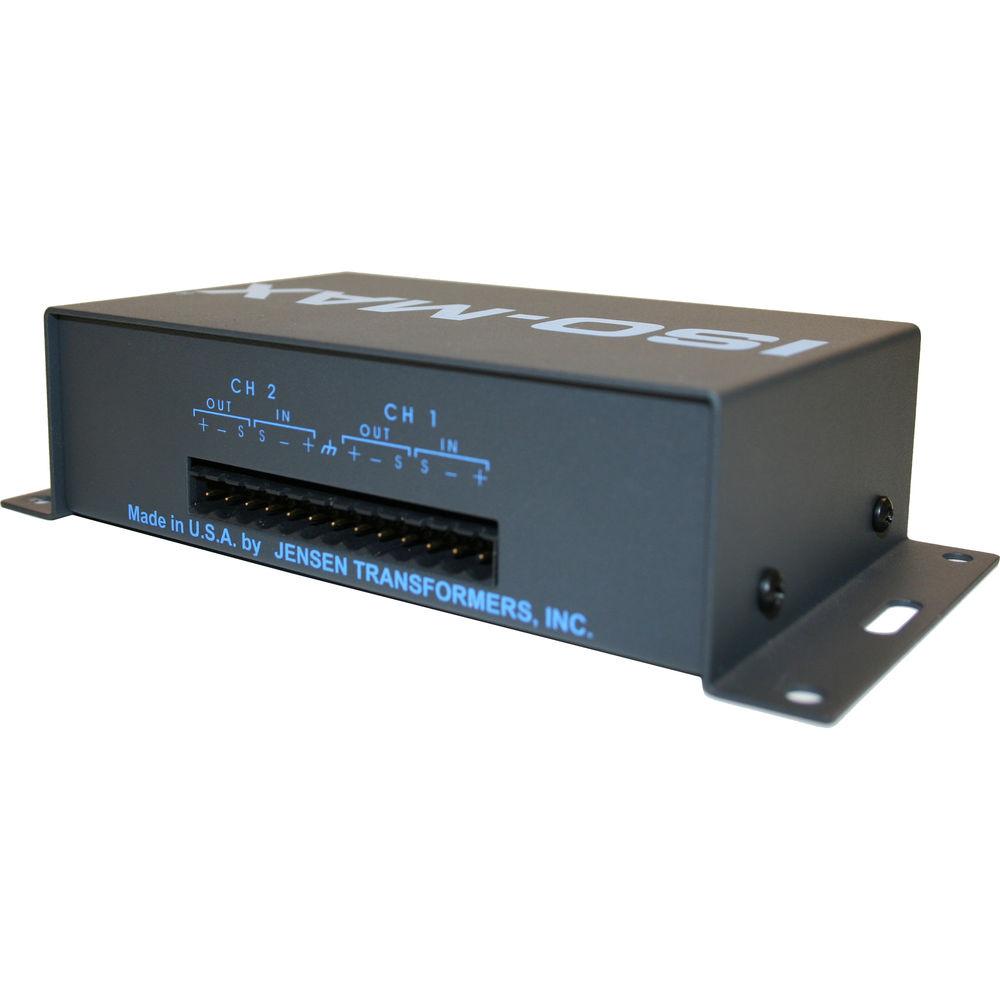

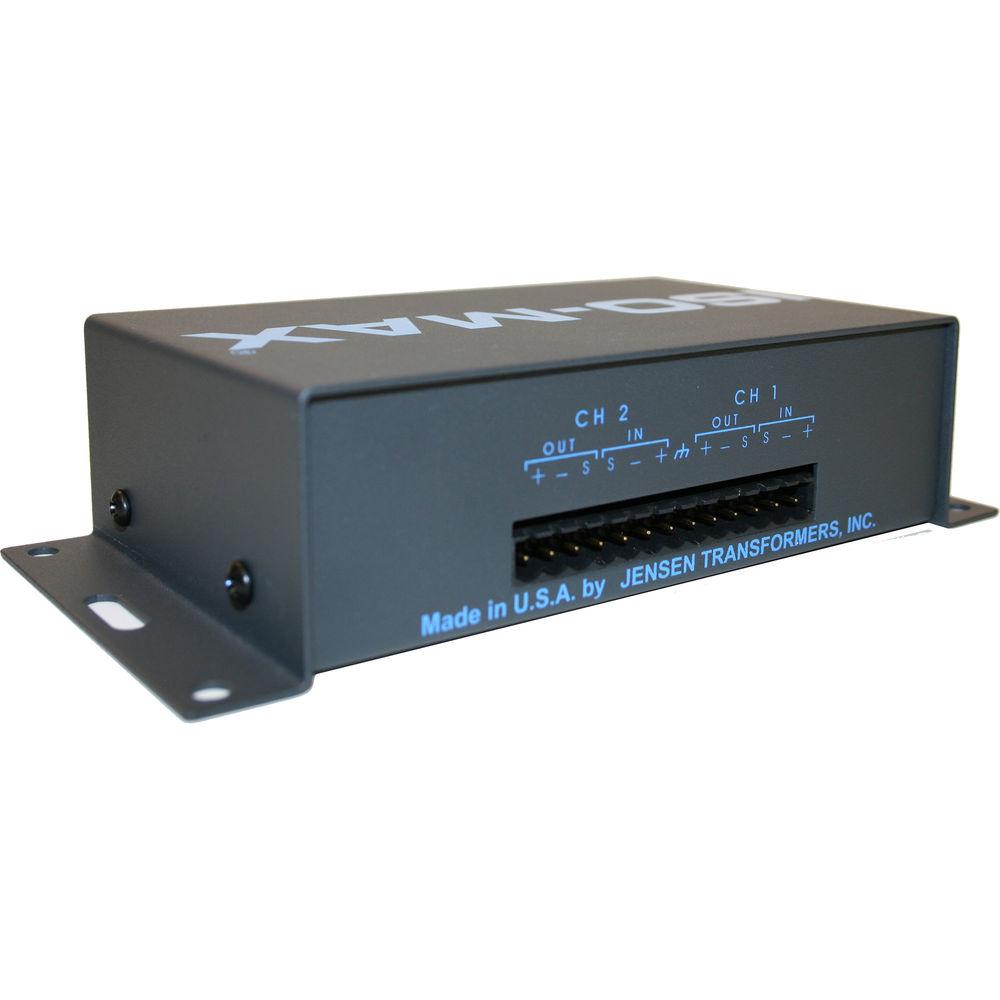

- Removable, screw-down barrier strip for easy installation in NEMA enclosures and 19” racks

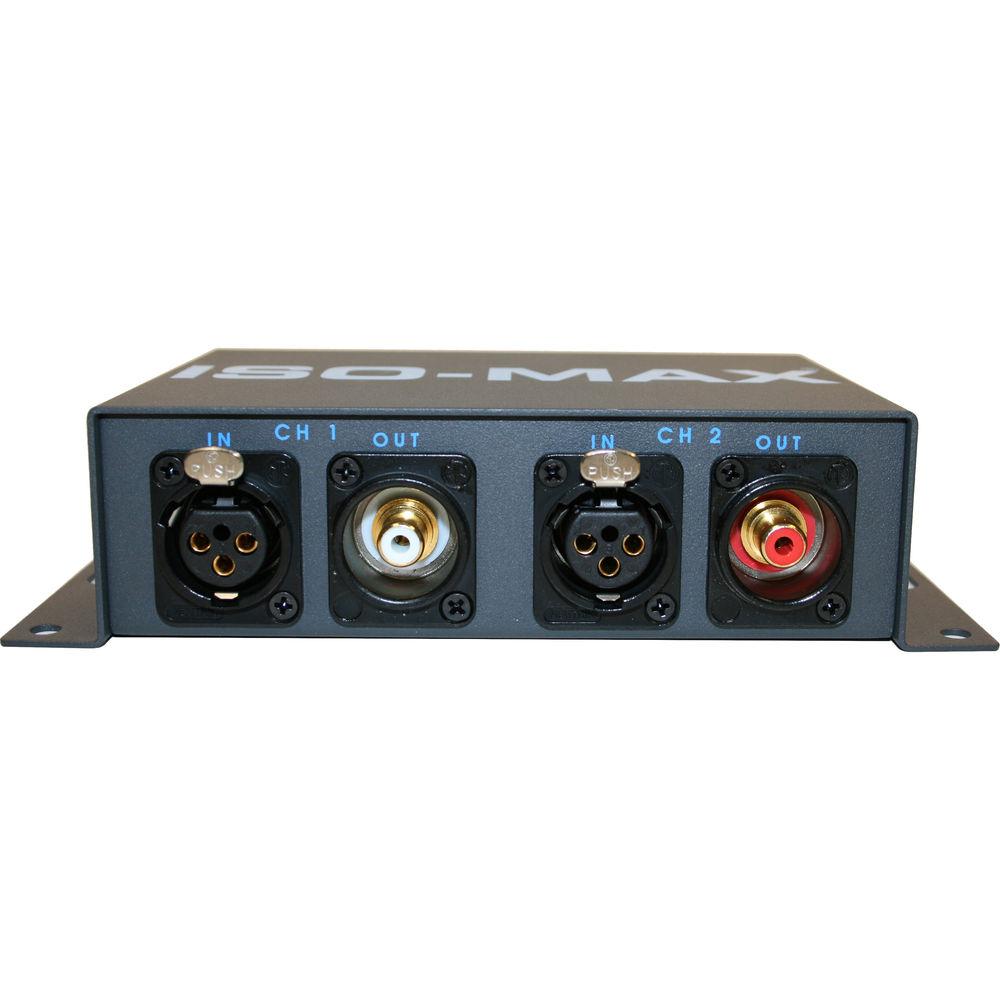

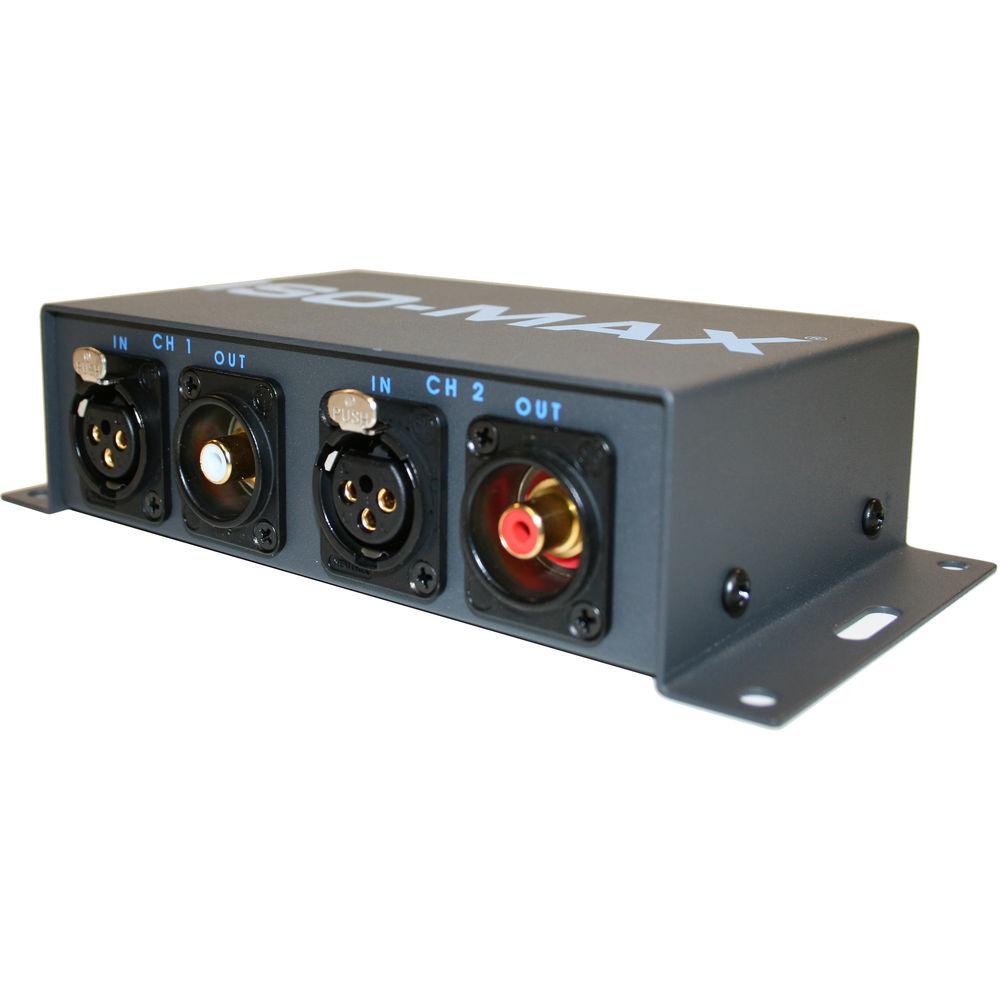

- Standard, gold-plated 3-pin XLR-female input connectors
- RCA output connectors for unbalanced systems

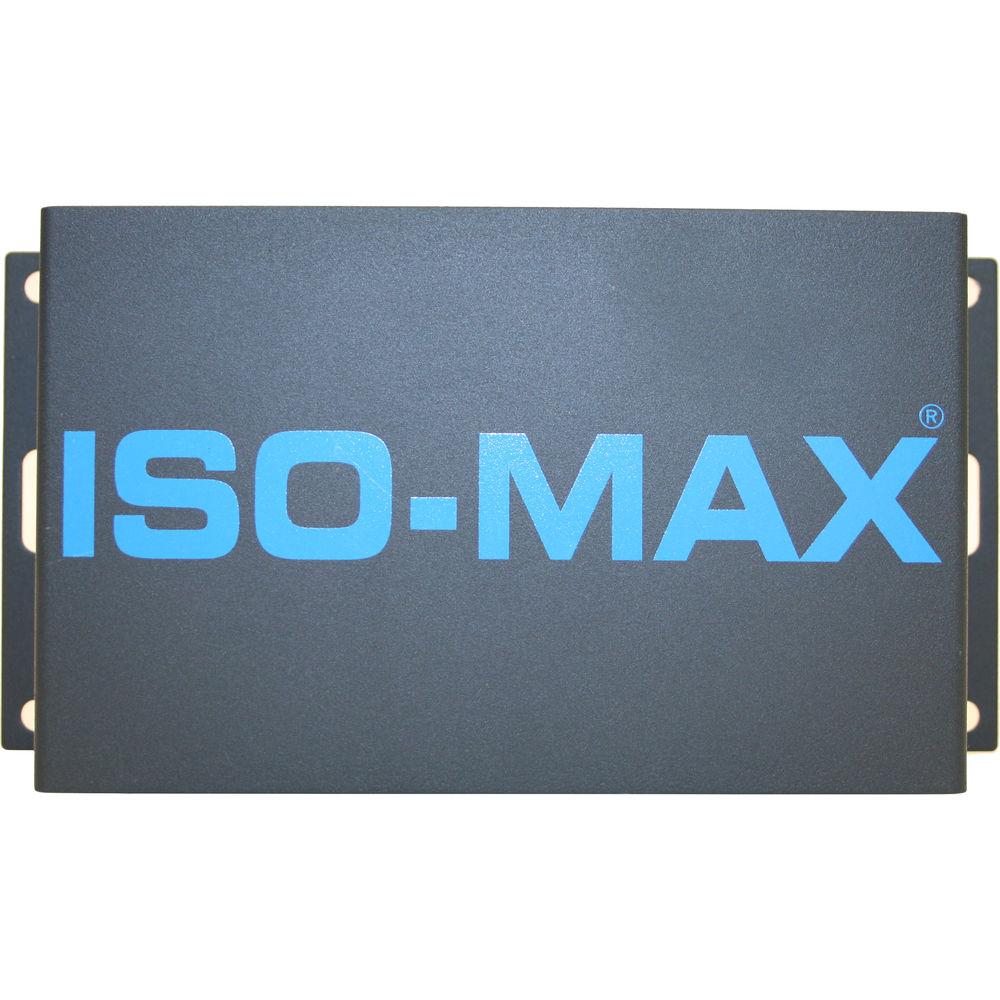

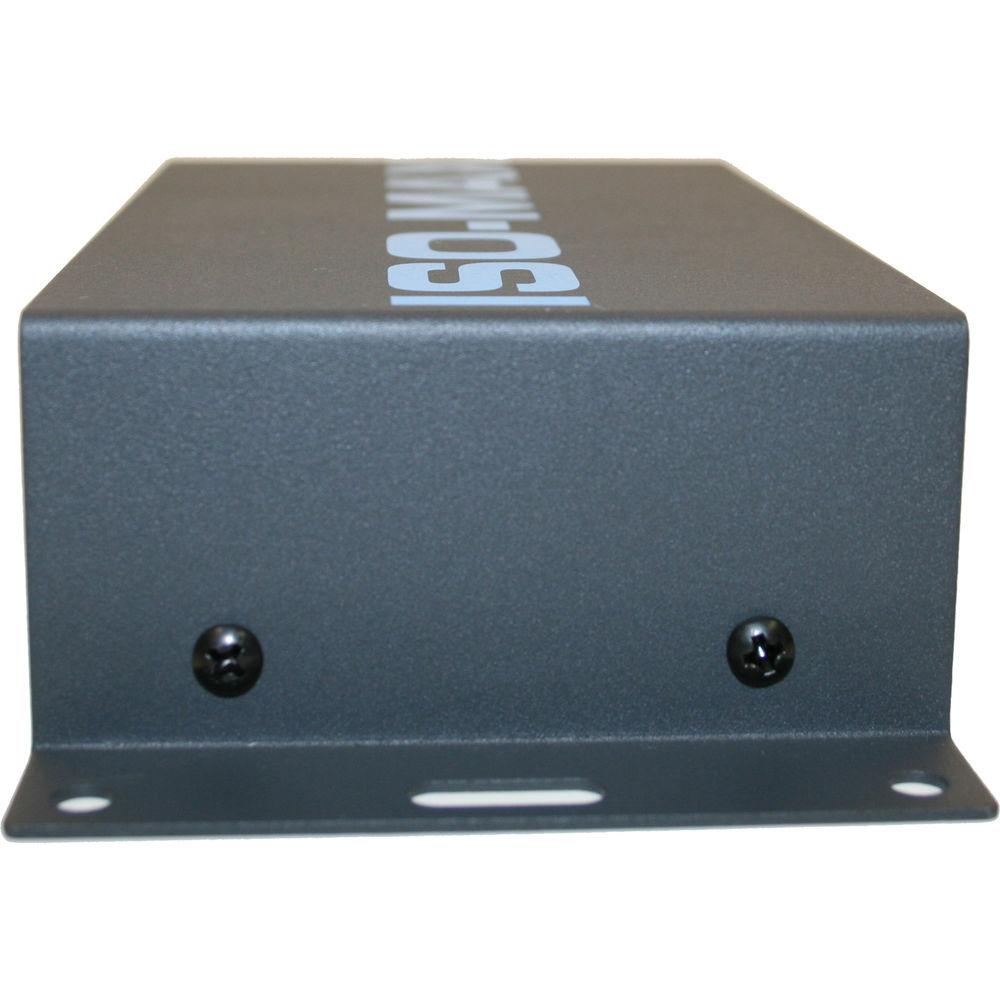

- Rugged, flanged-steel enclosure
- Plug-and-play, easy to use, no power required
UPC: 676101042197 In the Box Jensen Transformers Iso-Max PI-2XR - 2-Channel Line-Input Isolator (XLR In/RCA Out) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max PI-2XR - 2-Channel Line-Input Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers PI-2XR Specs | Type | Passive line-input isolator | | Channels | 2 | | Connectors | 2 x 3-pin XLR-female, gold-plated, balanced (inputs)
2 x RCA, unbalanced (outputs) | | Frequency Response | 5 Hz to 40 kHz | | Input Impedance | Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 22.0 kOhms
Typical: 23.5 kOhms
Maximum: 25.0 kOhms | | Insertion Loss | 1 kHz, +4 dBu, test circuit 1
Typical: 1.6 dB
Maximum: 2.0 dB | | Magnitude Response | 20 Hz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -0.15 dB
Typical: -0.03 dB
Maximum: ±0.0 dB
20 kHz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -1.0 dB
Typical: -0.70 dB
Maximum: ±0.0 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, +4 dBu, test circuit 1
Typical: +1.4 / -0°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, +4 dBu, test circuit 1
Typical: <0.001%
20 Hz, +4 dBu, test circuit 1
Typical: 0.04%
Maximum: 0.10% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: +17 dBu
Typical: +19 dBu | | Common Mode Rejection Ratio | 60 Hz, test circuit 2 / 3
Typical: 124 dB / 95 dB
3 kHz, test circuit 2 / 3
Minimum: 85 dB
Typical: 95 dB / 85 dB
(600 Ohms balanced / unbalanced source) | | Output Impedance | Zo, 1 kHz, test circuit 1
Typical: 4.65 kOhms | | Source Impedance | Minimum: 0 Ohm
Typical: 600 Ohms
Maximum: 2 kOhms
(Allowable output impedance of device driving the ISO-MAX input) | | Load Impedance | Minimum: 10 kOhms
Typical: 20 kOhms
(Allowable input impedance of device loading the ISO-MAX output) | | Load Capacitance | Minimum: 0 pF
Typical: 50 pF
Maximum: 100 pF
(Allowable cable and input capacitance loading the ISO-MAX output) | | Optimal Cable Length | Input
Typical: 3.3' / 1 m
Maximum: 9.8' / 3 m | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Maximum: 24 V RMS, 34 V peak
(Input to output, any input to any output shield or any shield to case, 60 Hz) | | Dimension (L x W x H) | 6.94 x 3.50 x 1.71" / 176.30 x 88.90 x 43.40 mm | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 3.4" |
