Jensen Transformers Iso-Max PI-XX - Single-Channel Line-Input Isolator Jensen Transformers Iso-Max PI-XX - Single-Channel Line-Input Isolator
User manual for the Jensen Transformers Iso-Max PI-XX - Single-Channel contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Jensen Transformers product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Jensen Transformers user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Jensen Transformers product will considerably shorten its lifespan!



Product description

The Jensen Transformers Iso-Max PI-XX is a passive, single-channel line-input isolator which prevents and eliminates hum and buzz by isolating the input of the connected device. It also attenuates electromagnetic interference (EMI) and radio frequency interference (RFI) problems, making it an ideal tool for use in recording studios, broadcast houses or performance venues. The PI-XX features a high-performance Jensen transformer with internal Faraday shield, which provides galvanic isolation between the input and output to eliminate ground loops and reduce common-mode noise by as much as 124 dB. The unit delivers a flat frequency-response from 5 Hz to 40 kHz, and can withstand signals in excess of +19 dB at 20 Hz, without introducing distortion, phase shift or artifact of any kind. Easy to set up, with no power required, the PI-XX features gold-plated XLR input/output connectors for applications with balanced audio systems. The device is equipped with a rugged, extruded aluminum case and is well-suited to stand up to the rigors of live use.
    Key Features
    • Passive, single-channel line-input isolator
    • Isolates the input of the connected device

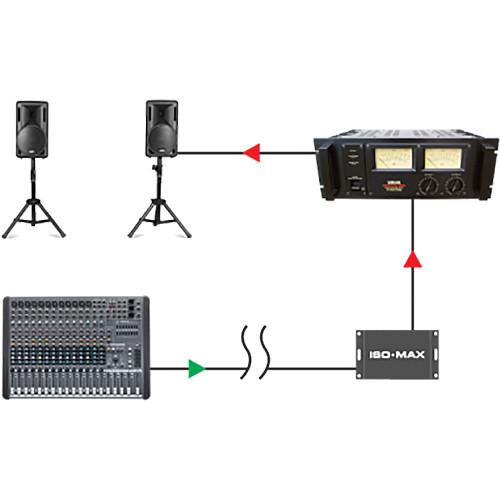

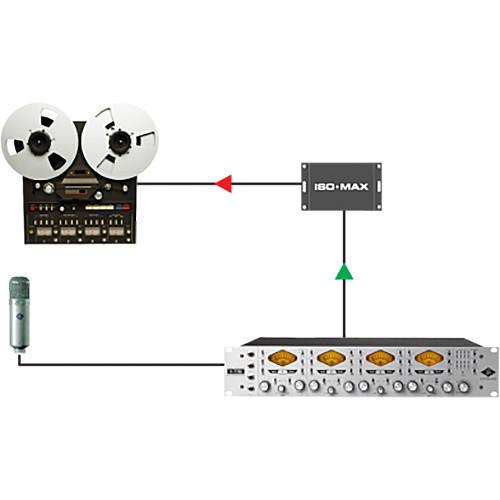

    • Connects between the source and the input destination to eliminate hum and buzz caused by ground loops
    • Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) problems
    • Jensen high-performance transformer with internal Faraday shield improve rejection of high-frequency buzz by a factor of 100 to 1000 (40 dB to 60 dB) over traditional transformers
    • Works without introducing distortion, phase shift or artifact of any kind
    • Ruler-flat frequency response from 5 Hz to 40 kHz
    • Handles signals in excess of +19 dB at 20 Hz, without discernible distortion
    • Rejects noise by as much as 124 dB
    • Standard, gold-plated 3-pin XLR-female input and XLR-male output connectors
    • Rugged, extruded aluminum case
    • Plug-and-play, easy to use, no power required
UPC: 676101041596 Table of Contents




Upload User Manual

Have you got an user manual for the Jensen Transformers Iso-Max PI-XX - Single-Channel Line-Input Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Jensen Transformers PI-XX Specs

Type Passive line-input isolator
Channels Single
Connectors 3-pin XLR-female, gold-plated, balanced (input)
3-pin XLR-male, gold-plated, balanced (output)
Frequency Response 5 Hz to 40 kHz
Input Impedance Zi, 1 kHz, +4 dBu, test circuit 1
Minimum: 22.0 kOhms
Typical: 23.5 kOhms
Maximum: 25.0 kOhms
Insertion Loss 1 kHz, +4 dBu, test circuit 1
Typical: 1.6 dB
Maximum: 2.0 dB
Magnitude Response 20 Hz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -0.15 dB
Typical: -0.03 dB
Maximum: ±0.0 dB

20 kHz, +4 dBu, test circuit 1, ref 1 kHz
Minimum: -1.0 dB
Typical: -0.70 dB
Maximum: ±0.0 dB
Deviation from Linear Phase 20 Hz to 20 kHz, +4 dBu, test circuit 1
Typical: +1.4 / -0°
Maximum: ±2.0°
Distortion (THD) 1 kHz, +4 dBu, test circuit 1
Typical: <0.001%

20 Hz, +4 dBu, test circuit 1
Typical: 0.04%
Maximum: 0.10%
Maximum Input Level At 20 Hz, 1% THD, test circuit 1
Minimum: +17 dBu
Typical: +19 dBu
Common Mode Rejection Ratio 60 Hz, test circuit 2 / 3
Typical: 124 dB / 95 db

3 kHz, test circuit 2 / 3
Minimum: 85 dB
Typical: 95 dB / 85 db

(600 Ohms balanced / unbalanced source)
Output Impedance Zo, 1 kHz, test circuit 1
Typical: 4.65 kOhms
Source Impedance Minimum: 0 Ohm
Typical: 600 Ohms
Maximum: 2 kOhms

(Allowable output impedance of device driving the ISO-MAX input)
Load Impedance Minimum: 10 kOhms
Typical: 20 kOhms

(Allowable input impedance of device loading the ISO-MAX output)
Load Capacitance Minimum: 0 pF
Typical: 50 pF
Maximum: 100 pF

(Allowable cable and input capacitance loading the ISO-MAX output)
Optimal Cable Length Input
Typical: 3.3' / 1 m
Maximum: 9.8' / 3 m
Temperature Range 32 to 158°F / 0 to 70°C

(Operation or storage)
Voltage Difference Maximum: 24 V RMS, 34 V peak

(Input to output, any input to any output shield or any shield to case, 60 Hz)
Dimension (W x D x H) 3.0 x 3.0 x 2.0" / 76.2 x 76.2 x 50.8 mm
Package Weight 1.15 lb
Box Dimensions (LxWxH) 4.7 x 3.4 x 3.2"
