Product description The Jensen Transformers Iso-Max SUB-1RR Single-Channel Subwoofer Isolator is a passive, unbalanced, and mono low-frequency isolator which prevents and eliminates hum and buzz caused by ground loops in subwoofers. It ensures that your music's low-end is faithfully delivered without distortion, coloration, or artifact when used with audiophile systems, home theaters, car audio installations, and more.The SUB-1RR features a high-performance Jensen transformer which rejects noise by as much as 100 dB, and handles low frequencies down to 20 Hz with less than 0.01% distortion. It also extends your program' subsonic response down to 1 Hz, for maximum bass impact.Easy to set up with no power required, the Iso-Max SUB-1RR comes with gold-plated RCA connectors that ensure optimal transfer of the audio signal. The unit is equipped with a rugged steel enclosure and fitted with screw-down flanges for mounting inside a rack, under shelves, or directly on the subwoofer. - Key Features
-
- Passive, unbalanced, mono, low-frequency isolator designed for use with subwoofers
- Eliminates hum and buzz caused by ground loops

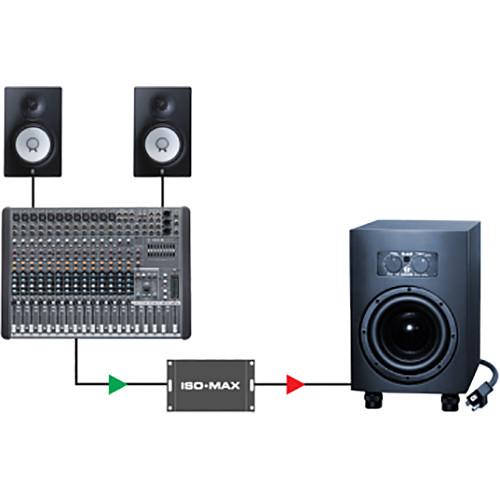

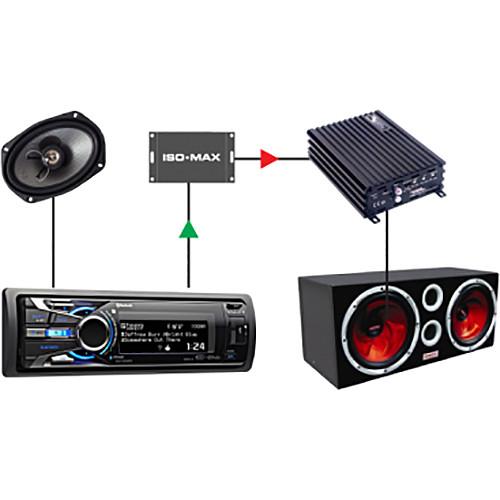

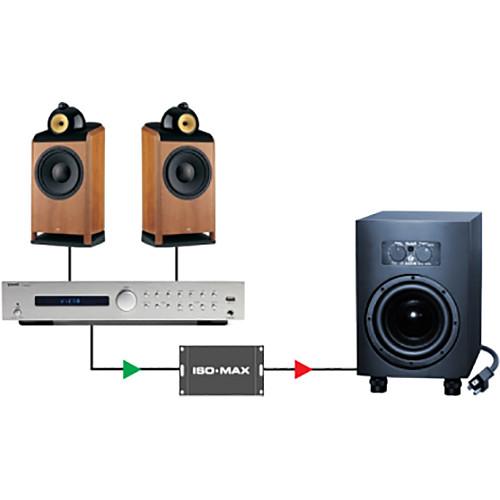

- For use with audiophile systems, home theaters, Hi-Z recording sound cards, car audio systems, and more
- Specially designed Jensen audio transformer rejects noise by as much as 100 dB
- Handles low frequencies down to 20 Hz with less than 0.01% distortion and less than 1° of phase shift
- Extended subsonic response down to 1 Hz—delivers powerful and articulated bass for maximum impact
- Low distortion—less than 1 dB of deviation, less than 0.05% harmonic distortion, and less than 2° phase-shift at all frequencies
- Standard, gold-plated RCA connectors ensure optimal signal transfer and prevent corrosion over time
- Rugged steel enclosure fitted with screw-down flanges for easy installation in racks, under shelves, or for attaching to cabinetry
- Plug-and-play, easy to use, no power required
UPC: 676101041411 In the Box Jensen Transformers Iso-Max SUB-1RR Single-Channel Subwoofer Isolator (RCA In/Out) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers Iso-Max SUB-1RR Single-Channel Subwoofer Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers SUB-1RR Specs | Type | Passive isolator | | Channels | 1 (mono) | | Connectors | Input:
1 x RCA, gold-plated, female, unbalanced
Output:
1 x RCA, gold-plated, female, unbalanced | | Frequency Response | Extended low-frequency response down to 1 Hz | | Input Impedance | Zi, 100 Hz, -10 dBV, test circuit 1
Minimum: 39.0 kOhms
Typical: 39.4 kOhms
Maximum: 39.8 kOhms | | Insertion Loss | 100 Hz, -10 dBV, test circuit 1
Minimum: -0.30 dB
Typical: 0.00 dB
Maximum: 0.30 dB | | Magnitude Response | 2 Hz, -10 dBV, test circuit 1, ref 100 Hz
Minimum: -0.25 dB
Typical: -0.11 dB
Maximum: -0.00 dB
20 kHz, -10 dBV, test circuit 1, ref 100 Hz
Minimum: -0.80 dB
Typical: -0.65 dB
Maximum: -0.50 dB | | Deviation from Linear Phase | 10 Hz to 2 kHz, -10 dBV, test circuit 1
Typical: +0.7 / -0°
Maximum: ± 2.0° | | Distortion (THD) | 100 Hz, -10 dBV, test circuit 1
Typical: < 0.001%
20 Hz, -10 dBV, test circuit 1
Typical: 0.01%
Maximum: 0.05% | | Maximum Input Level | At 20 Hz, 1% THD, test circuit 1
Minimum: +16 dBV
Typical: +18 dBV | | Common Mode Rejection Ratio | 60 Hz, test circuit 2
Typical: 105 dB
3 kHz, test circuit 2
Minimum: 50 dB
Typical: 65 dB | | Output Impedance | Zo, 100 Hz, test circuit 1
Typical: 5 kOhms | | Source Impedance | Minimum: 0 Ohm
Typical: 600 Ohms
Maximum: 2 kOhms
(Allowable output impedance of device driving the ISO-MAX input) | | Load Impedance | Minimum: 20 kOhms
Typical: 47 kOhms
(Allowable input impedance of device loading the ISO-MAX output) | | Load Capacitance | Minimum: 0 pF
Typical: 50 pF
Maximum: 1000 pF
(Allowable cable and input capacitance loading the ISO-MAX output) | | Optimal Cable Length | Input
Typical: 9.8' / 3 m
Maximum: 26.2' / 8 m
Output
Typical: 3.3' / 1 m
Maximum: 9.8' / 3 m | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Voltage Difference | Maximum: 24 V RMS, 34 V peak
(Input to output shield or either shield to chassis, 60 Hz) | | Dimension (L x W x H) | 4.32 x 2.6 x 1.45" / 109.7 x 66.0 x 36.8 mm | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 4.9 x 3.3 x 2.4" | Note: All levels are input unless noted, +4 dBu = 1.23 V RMS
