Product description

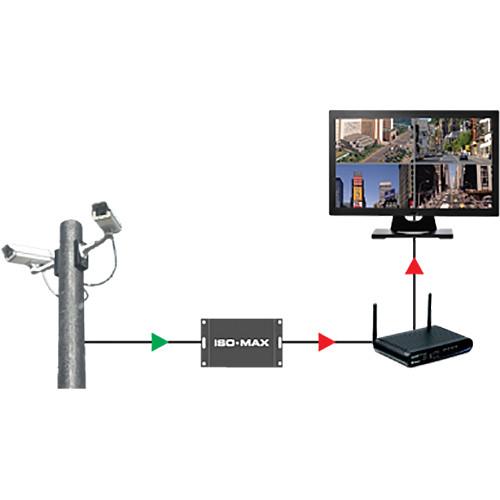

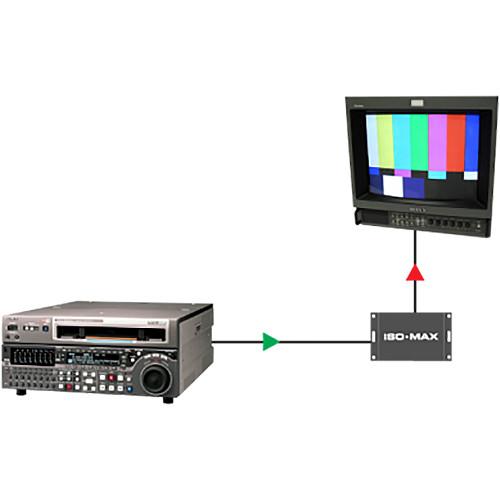

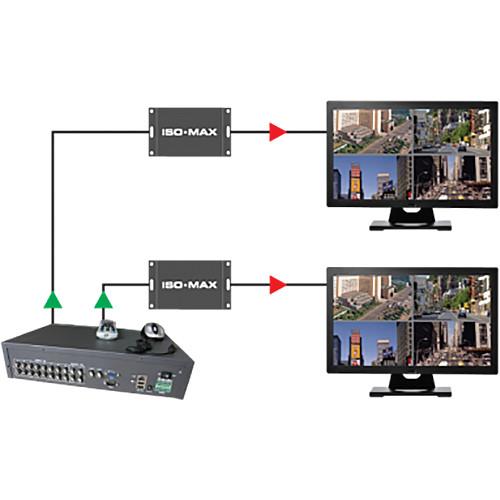

The single-channel Jensen Transformers Iso-Max VB-1RR is a passive, 75-Ohm isolator for composite (baseband) video, which prevents and eliminates hum bars caused by 60-cycle ground loops. It ensures that the video signal is faithfully delivered without noise, contamination, or artifact, even where ground voltage differences are very large such as in surveillance video systems, night clubs, video walls, broadcast stations, or industrial plants.The VB-1RR combines true 75-Ohm RCA connectors with a custom-wound Jensen transformer. This precise impedance-matched circuitry ensures minimal reflection while providing an exceptionally linear bandwidth from 10 Hz to 10 MHz, with 120 dB of ground noise attenuation.Easy to set up with no power required, the Iso-Max VB-1RR is housed in a rugged steel enclosure fitted with screw-down flanges for easy installation in 19" racks, inside a NEMA enclosure, under shelves, or for attaching to cabinetry.
  • Single-channel, 75-Ohm composite video passive isolator—eliminates hum bars caused by 60-cycle ground loops
  • No deterioration of picture quality
  • Precise impedance matching ensures minimal reflection—combines true 75-Ohms RCA connectors with a custom-wound Jensen transformer
  • Linear bandwidth from 10 Hz to 10 MHz, with virtually zero insertion loss
  • High ground isolation: 120 dB CMMR typical at 60 Hz
  • Rugged, electrically isolated steel enclosure fitted with screw-down flanges—for easy installation in racks, inside a NEMA enclosure, under shelves, or for attaching to cabinetry
  • Plug-and-play, easy to use, no power required
UPC: 676101041466 In the Box Jensen Transformers Iso-Max VB-1RR - Single-Channel Composite Video Isolator (RCA In/Out)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Jensen Transformers Iso-Max VB-1RR - Single-Channel Composite Video Isolator in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Jensen Transformers VB-1RR Specs

    Type Passive isolator, 75 Ohms
    Channels Single
    Connectors Input: 1 x RCA
    Output: 1 x RCA

    For use with standard RG59 coaxial cable
    Insertion Loss 10 kHz, test circuit 1
    Minimum: -0.50 dB
    Typical: -0.72 dB
    Maximum: -1.00 dB
    Differential Gain Typical: <0.02%
    Maximum: 0.05%
    (At 3.58 MHz, FCC/NTC-7 composite, Tektronix VM700A test set, pk-pk)
    Differential Phase Typical: < 0.02°
    Maximum: 0.05°
    (At 3.58 MHz, FCC/NTC-7 composite, Tektronix VM700A test set, pk-pk)
    Luminance Non-Linearity Typical: <0.01%
    Maximum: 0.02%
    (FCC/NTC-7 composite, Tektronix VM700A test set, pk-pk)
    Bandwidth LF -3 dB re 10 kHz, test circuit 1
    Typical: 10 Hz
    Maximum: 12 Hz

    HF -3 dB re 10 kHz, test circuit 1
    Minimum: 15 MHz
    Typical: 20 MHz
    Input VSWR 1 kHz to 8 MHz, HP 3577A analyzer & 35676A R/T test kit
    Typical: 1.20
    Maximum: 1.30

    3.58 MHz, HP 3577A analyzer & 35676A R/T test kit
    Typical: 1.10
    Maximum: 1.20
    Common-Mode Rejection Ratio 60 Hz, test circuit 2
    Minimum: 100 dB
    Typical: 120 dB
    DC Bias At Input
    Minimum: -1 V
    Typical: ±0
    Maximum: +16 V
    (None allowed at output, which has 2.6 Ohms DC resistance)
    Capacitance Input to output; 1 kHz
    Typical: 1.94 nF

    Input or output to case, 1 kHz
    Typical: 35 pF
    Temperature Range 32 to 158°F / 0 to 70°C
    (Operation or storage)
    Voltage Difference Minimum: 24 V RMS, 34 V peak
    (Input to output shield or either shield to chassis, 60 Hz)
    Dimension (L x W x H) 4.32 x 2.60 x 1.45" / 109.7 x 66.0 x 36.8 mm
    Package Weight 0.845 lb
    Box Dimensions (LxWxH) 4.9 x 3.45 x 2.4"
