Product description The Jensen Transformers Iso-Max SP-2SX is a 2-channel, "speaker-to-line-level" converter designed to convert a high-power signal from the output of an audio amplifier to a +4 dB, balanced line-level signal. It presents engineers with a range of solutions to expand existing audio systems without having to run additional line-level signals throughout a facility. The SP-2SX features two Jensen high-performance transformers that provide galvanic isolation between the input and output, to reduce hum and buzz caused by ground loops, and eliminate issues with "bridged" and "Class-D" power amp outputs. The unit delivers a flat frequency-response from 5 Hz to 20 kHz, and can withstand signals in excess of +19 dBu down to 20 Hz, without discernible distortion. The converter offers a series of input pad DIP switches that let you select the range to suit various power amps, including 25V and 70V line driver types. Easy to set up, with no power required, the SP-2SX comes with a removable screw-down barrier strip for quick installation in NEMA enclosures and 19" racks. The device is equipped with Speakon input connectors, gold-plated XLR output connectors, and a rugged, flanged-steel enclosure that is well-suited to stand up to the rigors of the road. - Key Features
-
- Converts high-power signals from an audio amplifier output to +4 dB (nominal) balanced line level signals

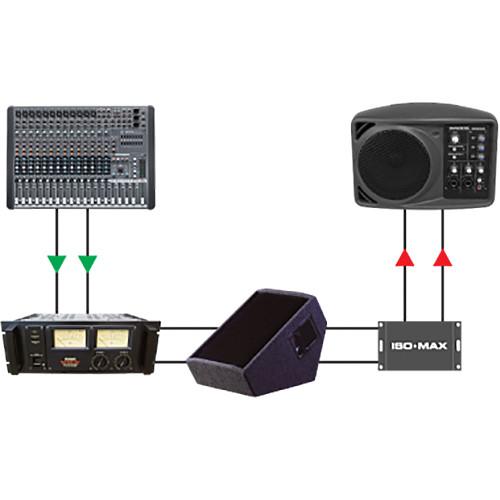

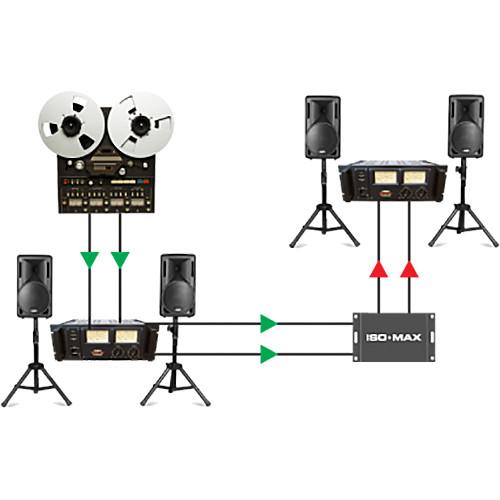

- Use to expand existing systems without having to run additional line-level signals throughout facility
- Passive, 2-channel
- Two Jensen high-performance transformers provide galvanic isolation between the input and output
- Eliminates hum and buzz caused by ground loops
- Ruler-flat frequency-response from 5 Hz to 20 kHz
- Handles signals in excess of +19 dBu at 20 Hz, without discernible distortion
- Input pad DIP switches let you select range to suit various power amps at 25W, 75W, 250W, 750W (maximum into 8 Ohms)
- Removable screw-down barrier strip for easy installation in NEMA enclosures and 19" racks
- Speakon input connectors, gold-plated 3-pin XLR-male input connectors
- Rugged, flanged-steel enclosure
- Plug-and-play, easy to use, no power required
UPC: 676101041725 In the Box Jensen Transformers SP-2SX - 2-Channel Speaker to Line Level Converter (Speakon In / XLR Out) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jensen Transformers SP-2SX - 2-Channel Speaker to Line Level Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJensen Transformers SP-2SX Specs | Type | Audio amplifier output to +4 dB (nominal) balanced line level converter
Passive line isolator | | Channels | 2 | | Connectors | 2 x Speakon (inputs)
2 x 3-pin XLR-male, balanced, gold-plated (outputs)
1 x removable screw-down barrier strip | | Frequency Response | 5 Hz to 20 kHz | | Input Impedance | Zi, 1 kHz, 1 kHz, 10 V, varies with power selection
Minimum: 1.1 kOhms
Maximum: 2.3 kOhms | | Voltage Gain | 1 kHz, input voltage = rated maximum
Minimum: +17.5 dBu
Typical: +18 dBu
Maximum: +18.5 dBu | | Magnitude Response | 20 Hz, 10 V, ref 1 kHz
Minimum: -0.15 dB
Typical: -0.03 dB
Maximum: ±0.0 dB
20 kHz, 10 V, ref 1 kHz
Minimum: -0.35 dB
Typical: -0.20 dB
Maximum: ±0.0 dB | | Deviation from Linear Phase | 20 Hz to 20 kHz, 10 V
Typical: +1.4 / -0.0°
Maximum: ±2.0° | | Distortion (THD) | 1 kHz, 15 dB below rated input voltage
Typical: < 0.001%
20 Hz, 15 dB below rated input voltage
Typical: 0.04%
Maximum: 0.10%
20 Hz, maximum rated input voltage
Typical: 0.8%
Maximum: 1.5% | | Common Mode Rejection Ratio | 60 Hz
Typical: 115 dB
3 kHz
Minimum: 80 dB
Typical: 90 dB | | Output Impedance | Zo, 1 kHz
Typical: 5.3 kOhms | | Amplifier Power Rating | 8 Ohms / rated maximum input voltage
S1 off, S2 off, S3 off
Maximum: 25 W, 14 V
S1 on, S2 off, S3 off
Maximum: 75 W, 25 V
S1 on, S2 on, S3 off
Maximum: 250 W, 44 V
S1 on, S2 on, S3 on
Maximum: 750 W, 77 V
Any switch settings, without damage
Maximum: 77 V | | Temperature Range | 32 to 158°F / 0 to 70°C
(Operation or storage) | | Breakdown Voltage | Minimum: 250 V RMS
(Speaker input to line output ground or chassis, 60 Hz, 1 minute test duration) | | Dimension (L x W x H) | 6.94 x 3.50 x 1.71" / 176.30 x 88.90 x 43.40 mm | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 7.8 x 5.4 x 3.4" |
