User Manual for JK Audio 4-Pin 5-Pin Female XLR Outerloop Wireless Intercom Belt Pack Click to enlarge the picture
Contents of the user manual for the JK Audio 4-Pin 5-Pin Female XLR
- Product category: Transmitters & Receivers JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Transmitters & Receivers
|
User manual for the JK Audio 4-Pin 5-Pin Female XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|

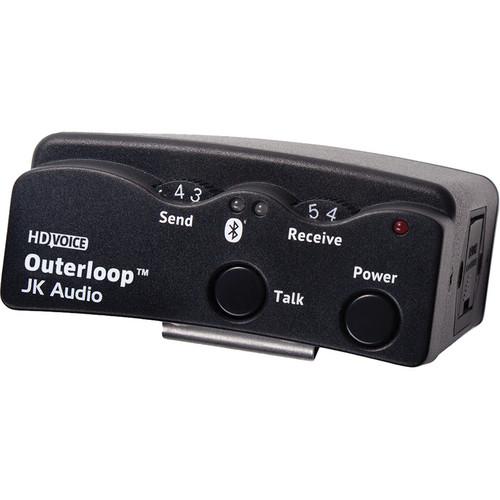

Product description JK Audio's 4-Pin/5-Pin Female XLR Outerloop Wireless Intercom Belt Pack functions as a wireless link to your intercom system. This universal belt pack provides connections for your existing 4-pin or 5-pin intercom headset, routing audio through your mobile device over a Bluetooth wireless connection. Use your cell phone to call into your intercom phone bridge or station phone coupler for a global wireless link.
Adapting to the mixed-up intercom world, this model features both 4-pin and 5-pin XLR headset jacks. Easy-to-use send and receive level controls, a push-on, push-off Talk button, as well as a recessed sidetone level control. All the comforts of a standard belt pack whether you are around the corner or around the world.
Outerloop also features a switch that selects between pairing to a phone or to a headset. In Phone mode, Outerloop pairs to your cell phone, notepad, or computer just like any other Bluetooth headset. In Headset mode, you can pair to another Outerloop or to a standard Bluetooth headset, providing a short range secure wireless point-to-point intercom. Outerloop to Outerloop connections default to HD Voice (50 Hz to 7 kHz) bandwidth. Many new Bluetooth wireless cell phones and headsets also provide HD Voice bandwidth. - Bluetooth Wireless Technology
- HD Voice (Wide-Band Speech) Compatible
- 2.4 GHz Encrypted Digital Wireless
- 3-pin XLR Male and Female Intercom Jacks
- Send and Receive Volume Controls
- Connects to Bluetooth Headsets, Phones, and Notebooks
- Intercom Powered with 9 Volt Battery Backup
UPC: 814170010772 Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio 4-Pin 5-Pin Female XLR Outerloop Wireless Intercom Belt Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio OTL-F Specs | Connectors | 4-Pin/5-Pin Female XLR | | Output Level | 0 dBv (775 mV) Nominal | | Pins | Pin 1: Common
Pin 2: Power (optional Power + Audio)
Pin 3: Audio | | Impedance | Microphone: 50-200 ohms
Earpiece: 50-600 ohms
Terminating: 200 ohms
Bridging: >15k ohms | | Bluetooth Specification | Standard: Bluetooth 3.0
Profile: Hands Free (HF)
Distance: 40' (12 m)
Frequency Response: 300 Hz - 3.4 kHz, 50 Hz - 7 kHz with HD Voice | | Power | +12 to +35 VDC, 55 mA with 9 Volt Battery Backup | | Dimensions | 4.7 x 3.75 x 1.65" (119.38 x 95.25 x 41.91 mm) | | Weight | 10 oz (283 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 2.3" |
