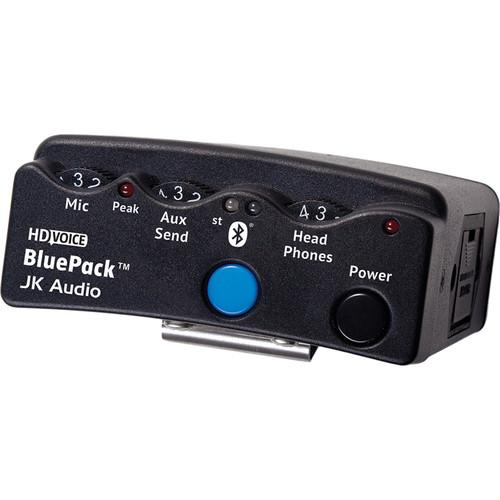

Product description - BluePack: Wireless Audio for Smartphone Vide
The BluePack from JK Audio allows you to send a live "on the street" interview back to a studio using your Bluetooth-enabled cell phone. Simply plug a microphone into the BluePack's XLR port, and the BluePack will use Bluetooth wireless technology to send the audio to your cell phone. Use the cell phone to call into a studio line, then toss the cell phone into a bag, and you're free to walk around conducting interviews using the compact belt-wearable BluePack.
In addition to the XLR input, an Aux mini input is provided for adding music or other audio to your live source. A mini stereo output is provided for sending audio to a portable recorder, and a standard 1/4" headphone jack provides easy monitoring. The simple interface includes individual level controls for the Mic, Aux Send, and Headphones. Only two buttons are needed for operation; a power button and a Bluetooth on/off button. The unit uses a single 9V battery and operates for up to 10 hours. - Compact and convenient way of sending live location interviews back to a studio
- Bluetooth wireless technology allows you to send audio from the BluePack to your cell phone at distances up to 25 feet
- XLR mic input accepts most professional-level microphones
- Mini 3.5mm Aux Send for adding music or other audio to your mix
- Mini 3.5mm stereo output for sending full-bandwidth audio to a portable recorder
- Standard 1/4" headphone output
- Individual level controls for Mic, Aux Send, and Headphones
- Operates for up to 10 hours on a single 9V battery
UPC: 814170010017 In the Box JK Audio BluePack Bluetooth Wireless Interview Tool 1-Year Limited Warranty User Manual PDF 862.1kbuyvazucqwtsesvwsttbweburzdddzcvdt Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio BluePack Bluetooth Wireless Interview Tool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio BluePack Specs | Connectors | 1 x XLR Mic Input
1 x 3.5mm Aux Send Input
1 x 3.5mm Stereo Out
1 x 1/4" Headphone Output | | Controls | 1 x Mic Level Control
1 x Aux Send Level Control
1 x Headphone Level Control | | Battery Type/Life | 1 x 9V Battery
Approx. 10 Hours Operation | | Dimensions (WxDxH) | 4.7 x 3.75 x 1.6" (120 x 95 x 42mm) | | Weight | 10 oz (275g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 2.4" |
