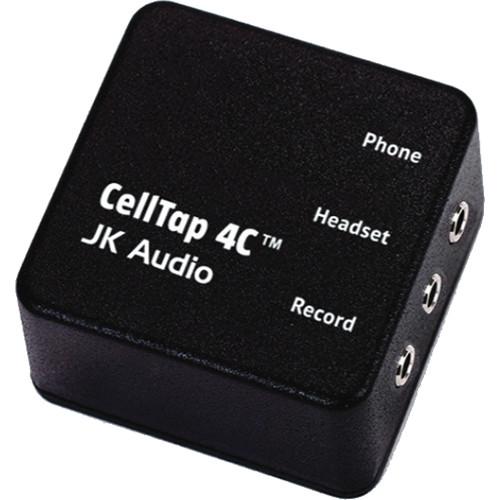

User Manual for JK Audio CellTap 4C Wireless Phone Audio Tap Adapter Click to enlarge the picture
Contents of the user manual for the JK Audio CellTap 4C Wireless Phone
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio CellTap 4C Wireless Phone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The CellTap 4C Wireless Phone Audio Tap Adapter from JK Audio is a passive device designed to allow you to record phone calls for interview and archival purposes. It's intended to be used in conjunction with a recording device or mixer.
Using a 3.5mm TRRS cable, you can route your phone's headset output into the Phone jack of the CellTap 4C. Then plug your TRRS-compatible headset into the jack marked, "Headset." Finally, connect the Record jack to a mic-level input on your recording interface or mixer to capture a stereo recording. The transformer coupled stereo output provides your microphone's audio on the left channel and the caller on the right channel, allowing you to split the signal and mix accordingly in a host DAW if you so choose. Note: A TRRS headset is required for operation. - Screwdriver caller-level adjustment
- Switch selects between popular TRRS configurations
- Passive, no AC or battery power needed
UPC: 814170010031 In the Box JK Audio CellTap 4C Wireless Phone Audio Tap Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio CellTap 4C Wireless Phone Audio Tap Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio CELLTAP4C Specs Connectors | 3.5 mm TRRS phone jack, headset input 3.5 mm TRRS phone jack, cable to device input 3.5 mm TRS phone jack, stereo microphone level output | Control | Internal switch, TRRS configuration setting | Output Impedance | 600 Ohms | Voltage | 2.4 mV RMS | Level | -50 dBu nominal | Dimensions | 2 x 2 x 1.3" / 5.1 x 5.1 x 3.3 cm | Weight | 3.5 oz / 99.2 g | | Package Weight | 0.46 lb | Box Dimensions (LxWxH) | 5.95 x 3.4 x 2.35" |
