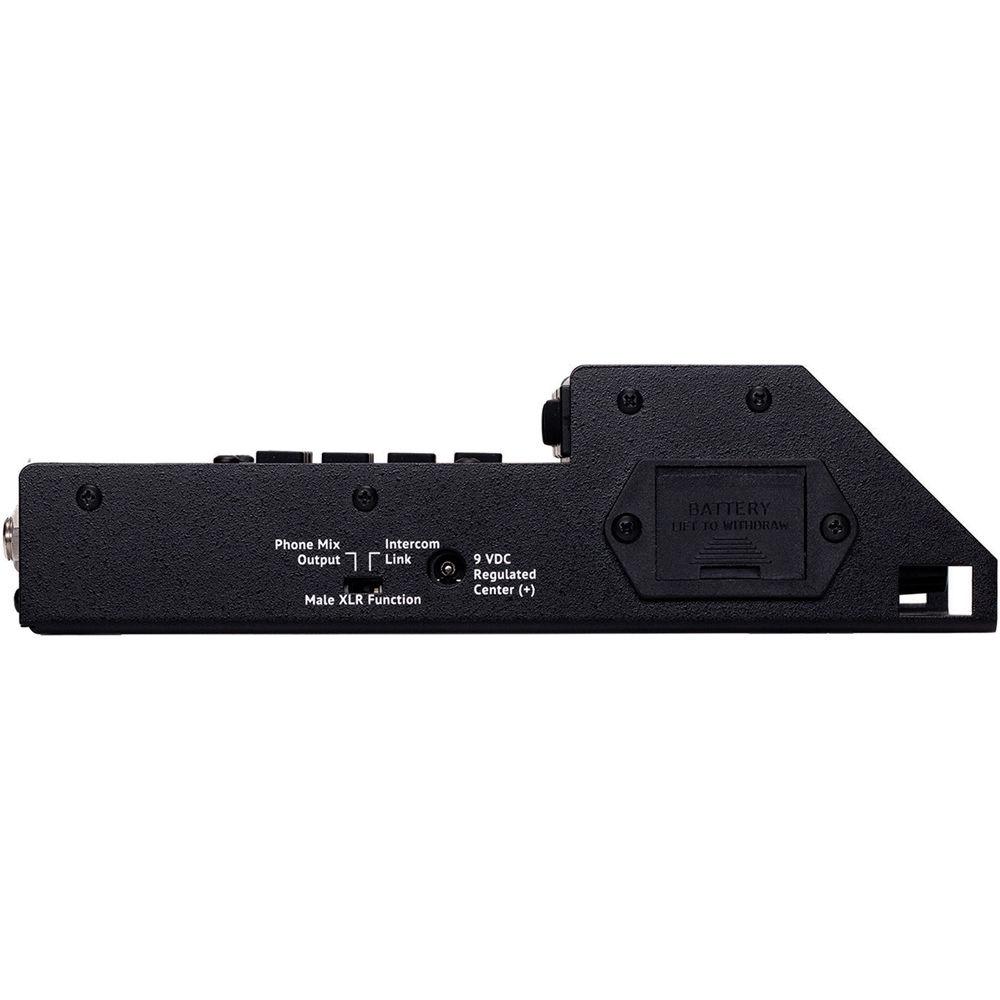

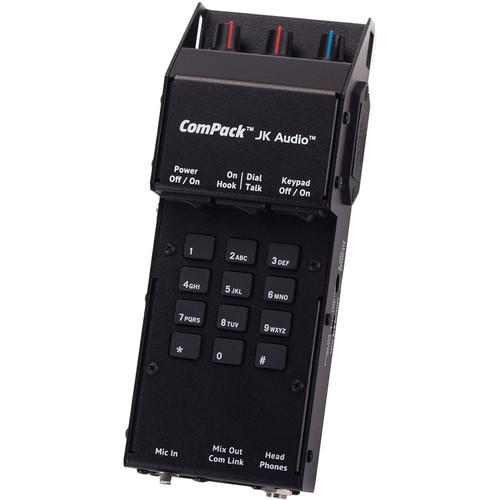

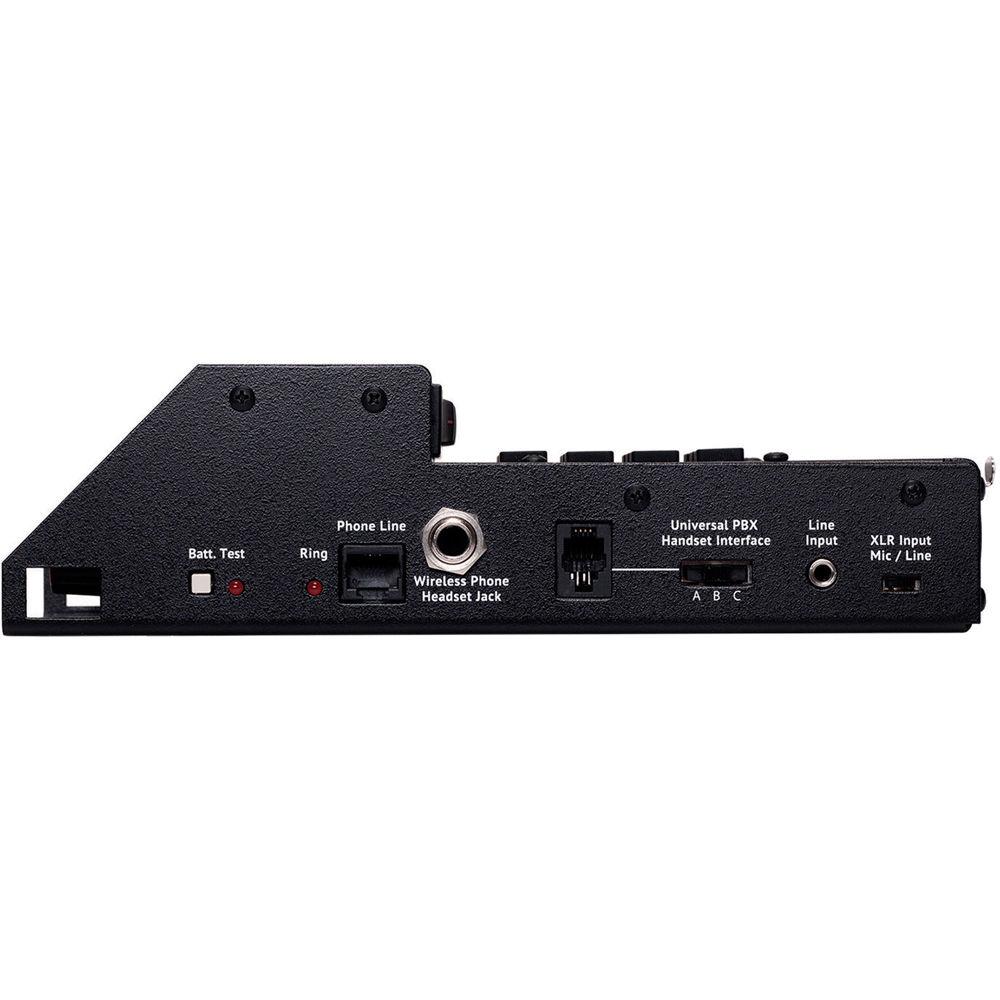

Product description The JK ComPack Universal Telephone Audio Interface bridges the gap between cell phones, analog phones, PBX systems, and professional audio sources. The ComPack is designed for remote broadcasts, IFB feeds, or telephone interviews. The provided balanced XLR input accepts signals from line level sources and microphones. The 2.5mm jack connects the ComPack to any cell phone with an ear-piece port. Standard analog phones can connect via the RJ-11 phone jack. The ComPak also functions as a simple telecom interface for an existing belt-pack intercom system. This feature provides a full-duplex, always-on connection to any telephone network. - Telephone / Audio Interface
- The ComPack is a complete interface between audio sources and analog phones and cell phones. It is designed for telephone interviews, broadcast, IFB, and more.
- Cell and Analog Phone Interface
- It features a standard RJ-11 jack for interfacing with analog phones, as well as a 2.5mm cell phone headset jack.
- Mic & Line Level Input
- The balanced XLR input accepts either microphone or line level signal. A Mic/Line switch is provided.
- Telecom Interface Feature
- As a bonus feature, an XLR intercom link is provided. This allows the ComPack to be used as a simple telecom interface for belt pack intercom systems.
- Extended Battery Life
- The ComPack is supplied with an AC power supply and will operate for up to 20 hours on a single 9 volt battery.
UPC: 814170010048 In the Box JK Audio COMP ComPack Universal Telecom Interface for Analog Phones, Cell Phones and BeltPack Intercom Systems AC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio ComPack Universal Telephone Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio COMP Specs | Input | Female XLR input (mic/line switchable)
3.5mm Line input | | Output | Male XLR output
1/4” TRS output | | Handset | 1/4" Phone output | | Isolation | 1500 VAC | | Phone Line | RJ11C | | Impedance | Inputs
XLR: 1 kOhms, -10 mV RMS (-35 dBm nom) mic, +5 dBm line
3.5 mm Mini: 20k Ohms, -10 dBm RMS
Outputs
XLR: 600 ohms balanced
1/4” TRS Connector: intercom mode - 3-Pin bidirectional unbalanced
Headphone: 8 Ohms, 500 MW | | Power Requirements | Operates for approximately 20 hours on one 9 V battery | | Dimensions (W x H x D) | 8.0 x 3.0 x 2.2" (20.3 x 7.6 x 5.6 cm) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 10.3 x 6.9 x 3.0" |
