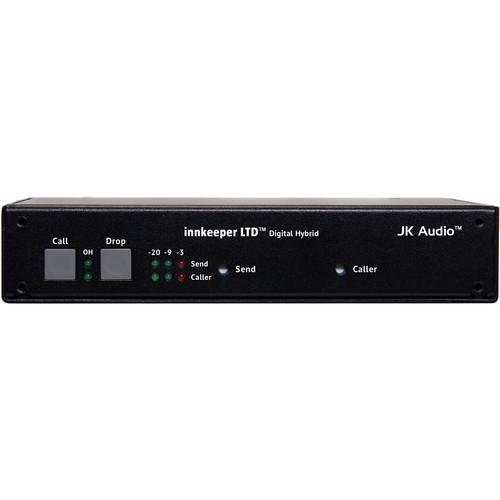

User Manual for JK Audio innkeeper LTD Digital Hybrid - Telephone Audio Interface Click to enlarge the picture
Contents of the user manual for the JK Audio innkeeper LTD Digital Hybrid
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio innkeeper LTD Digital Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The innkeeper LTD from JK Audio is an audio interface that enables you to cleanly separate the caller's voice from a telephone conversation on a standard telephone line for use in broadcasting, live sound, podcasting, and more. In addition to separating the caller's voice on a balanced XLR, the innkeeper LTD allows you to send a line-level signal into the phone line. The benefit of using the innkeeper LTD is that it automatically applies complex digital signal processing to keep out echoes and crosstalk to truly separate the audio signals. Because the innkeeper LTD accepts a line-level signal as its input, it's intended to be used with a mixing board, or a microphone preamplifier of some kind. Dialing outgoing calls can be made with a telephone connected to its auxiliary phone input, or with the separately available Guest Module 1. The innkeeper LTD can be set up to answer calls automatically, or with the Call button. Calls can be hung up with the Drop button, and 3-segment LED meters are provided to visually monitor its output levels. - Excellent separation of caller and talent voice
- Proprietary auto null algorithm, 50 dB null
- Send and caller signal level LEDs
- Guest module remote control jack
UPC: 814170010161 In the Box JK Audio innkeeper LTD Digital Hybrid - Telephone Audio Interface Power Supply 2 Year Limited Warranty User Manual PDF 486.2kbzvwfvrwyuccwczuxq Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio innkeeper LTD Digital Hybrid - Telephone Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio innkeeper LTD Specs | Inputs | 1 x Balanced Female XLR, 20k ohms, 500 mV RMS (-4 dBu nom) +12 dBu max | | Outputs | 1 x Balanced Male XLR, 200 ohms, 500 mV RMS (-4 dBu nom) +14 dBu max | | Phone Line | Phone Line: RJ11C Aux Phone: RJ11C | | Isolation | 1500 VAC | | Signal | Ringer: 0.8B REN | | Frequency Response | Telephone Side: 200 Hz - 3600 Hz | | Power | 120-240 VAC power supply (included) | | Dimensions | 7.6 x 5.3 x 1.5" (20 x 14 x 4 cm) | | Weight | 2.7 lbs (1.2 kg) | | | | Package Weight | 2.205 lb | | Box Dimensions (LxWxH) | 11.0 x 8.65 x 2.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
