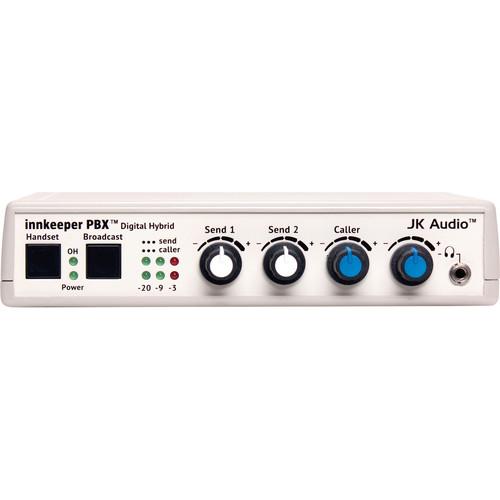

User Manual for JK Audio Innkeeper PBX Digital Hybrid Multi-Line Telephone Converter Click to enlarge the picture
Contents of the user manual for the JK Audio Innkeeper PBX Digital Hybrid
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio Innkeeper PBX Digital Hybrid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The JK Audio Innkeeper PBX is a professional telephone / audio interface that converts any multi-line PBX, ISDN or analog telephone into a broadcast, talk-show style console. The Innkeeper PBX connects between the handset and telephone base, incoming calls can be screened using the telephone handset.A front panel button marked "Broadcast" disables the handset and enables signal flow from the XLR Send input. This provides talk show style control for radio and television broadcast. 16-bit digital processing eliminates the signal "bleed" that occurs over phone lines, isolating the incoming and outgoing audio signal paths. The front panel features individual level control of Send 1, Send 2 and Caller audio signal. The rear of the unit features mic/line switchable XLR input, XLR caller output, 1/8" (3.5mm) mini mix output, 1/8" (3.5mm) mini Send 2 input. - Talk-Show Style Monitoring
- The Innkeeper PBX is an audio / telephone interface that converts multi-line PBX, ISDN and analog phones into talk-show style broadcast consoles. The unit features Handset and Broadcast switches that allow incoming calls to be screened and cued before broadcasting.
- Mic / Line Level Switchable Send
- Balanced XLR-female or 1/8" (3.5mm) mini Send inputs send audio through the telephone line to the caller. The balanced input features a mic / line level switch for direct connection of a microphone or console output.
- Handset Selector
- A handset selector switch enables compatibility with electret, carbon or dynamic handsets.
- Send and Receive Level LEDs
- 3-segment Send and Receive LED meters provide an accurate display of Send and Caller levels.
- Headphone Monitoring
- A 3.5mm mini stereo headphone jack is located on the front panel. The output also provides a dedicated level control and is useful for sending a mixed stereo signal to recorders or amplifiers.
UPC: 814170010178 In the Box JK Audio Innkeeper PBX Digital Hybrid Multi-Line Telephone Converter Power Supply 2-Year Limited Warranty User Manual PDF 556.8kbyqdtxxyxvuxwrsvzcxzeywwwwfsad Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio Innkeeper PBX Digital Hybrid Multi-Line Telephone Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio Innkeeper PBX Specs | Input | Send 1: Balanced XLR-Female
Send 2: 1/8" (3.5mm) mini mono | | Output | Balanced: XLR-Male
Unbalanced: 1/8" (3.5mm) stereo | | Handset | RJ11 Handset Jack | | Isolation | 1500 VAC | | Phone Line | RJ11 Phone Line | | Impedance | Inputs
Send 1: 1k ohms Send 2: 20k ohms
Outputs Balanced: 200 ohms
Unbalanced: 50 ohms Headphone: 8 ohms | | Power Requirements | 120-240 VAC power supply (included)
9 VDC regulated center + | | Dimensions | 7 x 6 x 1.6" (18 x 15 x 4.2cm) | | | | Package Weight | 2.08 lb | | Box Dimensions (LxWxH) | 10.95 x 8.65 x 2.15" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
