User Manual for JK Audio Interchange Intercom Phone Bridge Click to enlarge the picture
Contents of the user manual for the JK Audio Interchange Intercom Phone Bridge
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio Interchange Intercom Phone Bridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|

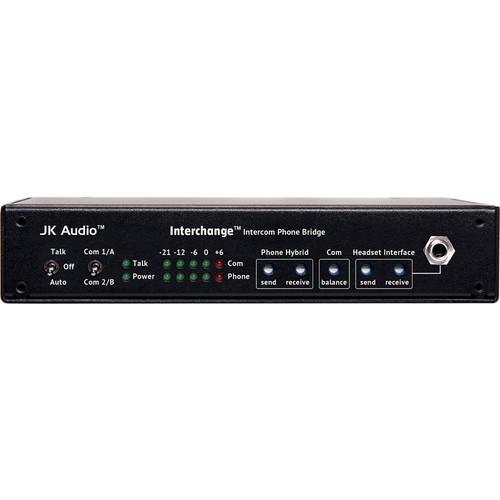

Product description The Interchange Intercom Phone Bridge from JK Audio is a professional half-rack interface designed to provide remote access to your party-line intercom through the JK Audio Innkeeper Series Digital Hybrids (sold separately). This unit provides a 4-wire audio interface and remote control connection to the JK Audio innkeeper LTD, innkeeper 1x/1rx, or innkeeper 2 Digital Hybrid (all sold separately). The front panel headset interface jack allows easy connection of your cell phone, tablet, or computer, thereby enabling remote access through a wireless phone or a conferencing app.This intercom phone bridge contains a sophisticated intercom hybrid in a low noise pro audio design. The Listen-Always design enables both the phone hybrid / 4-wire connection and the cell phone headset interface to monitor the intercom. It features a Listen mode, which is a high-impedance bridging tap on the intercom line. This unit also includes a Talk mode that is enabled via a front panel switch, either Off, On, or Auto. Auto follows the phone hybrid Auto-Answer mode. The Talk mode uses a solid-state relay to properly couple Talk audio from the phone line and cell phone interfaces, to the intercom channel. - Male and female 3-pin XLR intercom loop jacks
- Male and female 3-pin XLR 4-wire jacks
- Male XLR mix line out for monitoring
- Send and receive LED metering
- Front panel screwdriver level controls
- Front panel channel select
- Front panel cell phone interface
- Listen always, talk when talk-enabled
- Intercom and phone hybrid powered
UPC: 814170010796 In the Box JK Audio Interchange Intercom Phone Bridge Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio Interchange Intercom Phone Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio INTCHG Specs | Connection | Male & female 3-pin XLR | | Output Level | 0 dBu (775 mV) nominal | | Impedance | Terminating: 200 Ω
Bridging: >15 kΩ | | Pin Configuration | Pin 1: Common
Pin 2: Audio + 30 VDC (+12 VDC minimum) 50 mA
Pin 3: Audio | | Input | Balanced Female XLR: 20 kΩ / 500 mV RMS (-4 dBu, nominal) +12 dBu maximum | | Output | Balanced Male XLR: 200 Ω / 500 mV RMS (-4 dBu, nominal) +12 dBu maximum | | Dimensions | 7.6 x 5.3 x 1.5" (19.3 x 13.5 x 3.8 cm) | | Weight | 1.2 lb (0.5 kg) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.3 x 7.0 x 3.0" |
