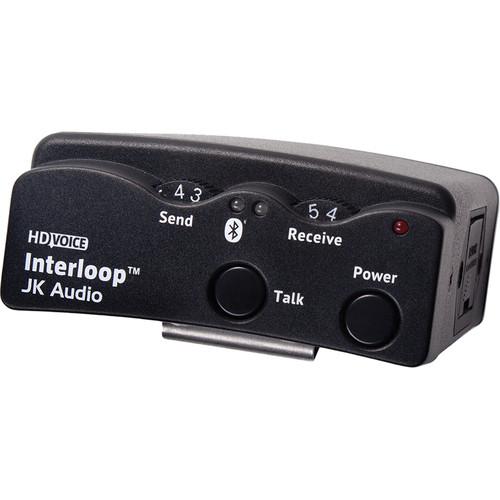

Product description Interloop from JK Audio combines Bluetooth wireless technology with two-wire intercom systems, housed in a rugged beltpack design. It works with industry standard two-wire, party-line intercoms, connecting to the existing intercom system like any other beltpack. Using Bluetooth technology allows wireless connection to a variety of audio devices. Additionally, the unit features HD Voice technology, allowing 7 kHz Wide-Band Speech when used with compatible headsets or phones on compatible networks.
A rear-panel switch selects headset or phone connection. Headset mode allows for connecting to a Bluetooth enabled headset for freedom of movement. Phone mode allows for connecting to a wireless phone to let others join in, or for connecting to a notebook or laptop to provide remote voice access using communications applications such as Skype.
The beltpack is powered by the intercom system, and includes 9 VDC battery backup for maintaining wireless connection while changing cables. The system will work with any Bluetooth-enabled headset. - Bluetooth wireless technology
- 2.4 GHz encrypted digital wireless
- Features HD Voice technology, allowing 7 kHz Wide-Band Speech when used with compatible headsets or phones on compatible networks
- 3-pin XLR male and female intercom jacks
- Send and receive volume controls
- Connects to Bluetooth headsets, phones and notebooks
- Intercom powered with 9 V battery backup
UPC: 814170010765 In the Box JK Audio Interloop - Wired/Wireless Intercom Beltpack Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio Interloop - Wired Wireless Intercom Beltpack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio INTER Specs | Bluetooth | Bluetooth: 2.0
Profile: Hands Free (HF)
Distance: 40 ft (12 m)
Frequency Response: 300 Hz to 3.4 kHz, 50 Hz to 7 kHz with HD Voice | | XLR Intercom Channel | Output Level: 0 dBV (775 mV) nominal
Terminating Impedance: 200Ω
Bridging Impedance: >15kΩ
Pin 1: Common
Pin 2: Power (optional Power + Audio)
Pin 3: Audio | | Power Requirements | +12 to +35 VDC, 55 mA, with 9 volt battery backup | | Dimensions (WxDxH) | 4.7 x 3.75 x 1.7" (120 x 95 x 42 mm) | | Weight | 10 oz (275 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 2.4" |
