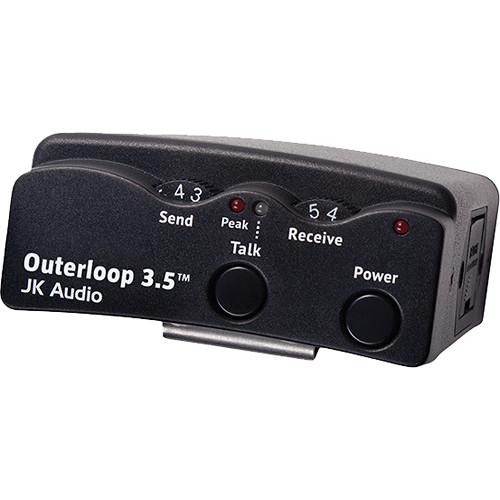

User Manual for JK Audio Outerloop 3.5 Universal Intercom Belt Pack Click to enlarge the picture
Contents of the user manual for the JK Audio Outerloop 3.5 Universal Intercom
- Product category: Wired Intercoms JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Wired Intercoms
|
User manual for the JK Audio Outerloop 3.5 Universal Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The JK Audio Outerloop 3.5 Belt Pack constitutes a bridge between your mobile device and a variety of 2-way intercom systems. With its included 3.5mm cable, you can plug your smartphone, computer, or other compatible device into the 3.5mm jack, and your favorite 4- or 5-pin XLR headset into its XLR-female socket. Send- and receive-level controls are provided, as are a push-on/push-off Talk button and a recessed sidetone level control.
The Outerloop 3.5 can last longer than 20 hours on a single 9V battery. It features wide-band, HD Voice technology for clearer speech. With this device, you can route your mobile device into an intercom phone bridge, a station phone coupler, or phone-based intercom apps. - Key Features at a Glance
- HD Voice (wide-band speech)
Connects to phones and computers with 3.5mm TRRS connection
Standard 4- and 5-pin XLR female jacks
Send and receive volume controls
Push-on/push-off talk button
Recessed sidetone level control
Lasts longer than 20 hours on a 9V battery UPC: 814170010949 In the Box JK Audio Outerloop 3.5 Universal Intercom Belt Pack (XLR Female) 3.5mm TRRS Cable for Phones & Computers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio Outerloop 3.5 Universal Intercom Belt Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio OTL3.5-F Specs | I/O | 1 x 4-pin XLR, female
1 x 5-pin XLR, female
1 x 1/8"/ 3.5 mm TRRS input jack, phone type | | Impedance | Headset Microphone: 50 Hz to 2 kHz Ohms
Headset Earpiece: 50 to 600 Ohms (load impedance) | | Power | Headset Earpiece: > 50 mW into 150 Ohms | | Frequency Response | 50 Hz to 15 kHz | | Power | 9 VDC Battery | | Dimensions | 4.7 x 3.8 x 1.7" / 12 x 9.5 x 4.2 cm | | Weight | 10 oz / 275 g |
