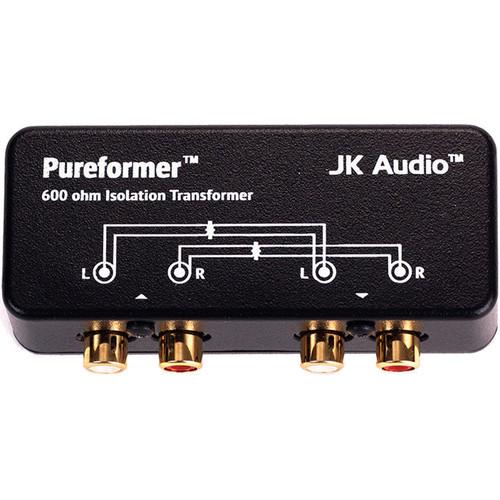

User Manual for JK Audio Pureformer Isolation Transformer Click to enlarge the picture
Contents of the user manual for the JK Audio Pureformer Isolation Transformer
- Product category: Hum Eliminators JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Hum Eliminators
|
User manual for the JK Audio Pureformer Isolation Transformer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The Pureformer from JK Audio is a stereo audio interface that employs transformers to provide hum and noise reduction for any two pieces of line level audio equipment. The unit removes ground loops and DC paths that can cause severe signal degradation. The Pureformer functions by isolating the electrical grounds of both pieces of equipment, allowing only the audio signal to pass between them. This is especially crucial when one of the pieces of equipment is a computer sound card, where the electrical noise from the computer can get into the rest of the audio system. The unit is also useful in the event that two pieces of equipment are DC coupled. If both input and output are DC coupled, the signal can easily distort, break-up, or simply disappear. The Pureformer safely isolates any combination of AC and DC coupled inputs and outputs. - Compact interface for removing hum and noise between any two pieces of audio equipment
- Especially useful when hooking up on-board computer sound cards with other audio equipment
- Pureformer can also help when input/output incompatibilities exist
- Utilizes high-quality, low-distortion, 600-Ohm audio transformers
- Durable die-cast aluminum construction
UPC: 814170010192 In the Box JK Audio Pureformer - Stereo Isolation Transformer Limited 2-Year Warranty User Manual PDF 58.3kbfttefzwx Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio Pureformer Isolation Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio Pureformer Specs | Frequency Response | 20 Hz to 20 kHz, ±0.1 dB | | Inputs | 2 x RCA | | Outputs | 2 x RCA | | Input Impedance | 600 Ohms | | Output Impedance | 600 Ohms | | Insertion Loss | 0.8 dB | | Isolation | 1500 VRMS | | Dimensions (WxDxH) | 3.6 x 1.3 x 1.8" (91 x 33 x 46 mm) | | Weight | 5 oz (142 g) | | | | Package Weight | 0.525 lb | | Box Dimensions (LxWxH) | 5.7 x 3.35 x 2.3" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
