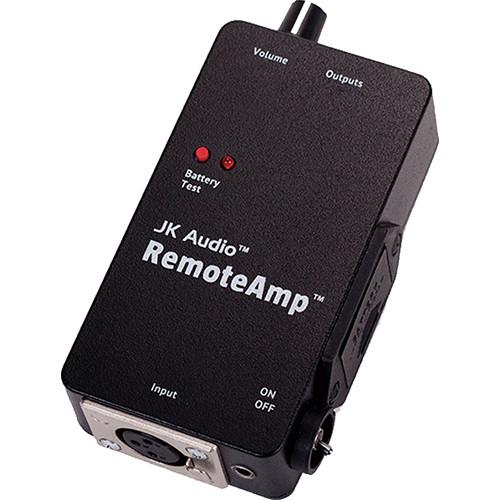

User Manual for JK Audio RemoteAmp Headphone Earpiece Amplifier Click to enlarge the picture
Contents of the user manual for the JK Audio RemoteAmp Headphone Earpiece Amplifier
- Product category: IFB & Cueing JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio IFB & Cueing
|
User manual for the JK Audio RemoteAmp Headphone Earpiece Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The JK Audio RemoteAmp is a battery-powered personal amplifier that can be used as an IFB (Interruptible Fold-Back) earpiece or headphone amplifier, or as an on-stage monitor headphone amplifier. The 1W amplifier provides sufficient power to cut through surrounding noise without distortion.The amplifier can be clipped to a belt and accepts, via an XLR or 3.5mm connector, a mono input from a mixer, distribution amplifier, telephone line hybrid, or a handset interface like JK Audio's QuickTap IFB. A separate power switch allows the user to set and leave the volume control at a comfortable level. The 3.5mm earpiece jack is current-limited to prevent excessive signals. -
- Compatible with TW (Two-Wire) party-line intercoms (listen-only)
- XLR line-level input
- 3.5mm stereo line input jack
- Master level control
- 1/4" stereo headphone jack
- 3.5mm stereo headphone jack
- Stainless-steel belt clip
- >20 hours on a single 9V battery
- Made in America
UPC: 814170010246 In the Box JK Audio RemoteAmp Personal Battery-Powered Headphone/Earpiece Amplifier Limited 2-Year Warranty User Manual PDF 28.2kbbetrdzzsecrdtvdrbvwzfbdzfecrxqcrzu Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio RemoteAmp Headphone Earpiece Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio RemoteAmp Specs | Number of Channels | Single | | Input Connections | 1 x XLR
1 x 1/8" / 3.5 mm | | Input Impedance | XLR: 4 kOhms
Line In 1/8" / 3.5 mm: 50 Ohms | | Input Level | XLR: 100 mV RMS (-18 dBu nom, +12 dBu max)
Line In 1/8" / 3.5 mm: -10 dBu | | Maximum Gain | XLR: 46 dB | | Output Connectors | 1 x 1/8" TS phone
1 x 1/4" TRS phone (mono/stereo) | | Output Impedances | Mono/Stereo 1/4" / 6.35 mm: 8 Ohms
Mono 1/8" / 3.5 mm: 150 Ohms | | Maximum Output Level | Mono 1/8" / 3.5 mm: 100 mW nominal
Mono/Stereo 1/4" / 6.35: 1 W max | | Controls | Volume | | Frequency Response | 30 Hz to 20 kHz, ±1 dB | | Power Requirements | 9 V battery (alkaline) | | Dimensions (L x W x D) | 5.1 x 2.7 x 1.3" / 13.0 x 6.9 x 3.3 cm | | Weight | 10.0 oz / 283.5 g | | Specialties | Separate power switch | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 6.8 x 3.4 x 2.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
