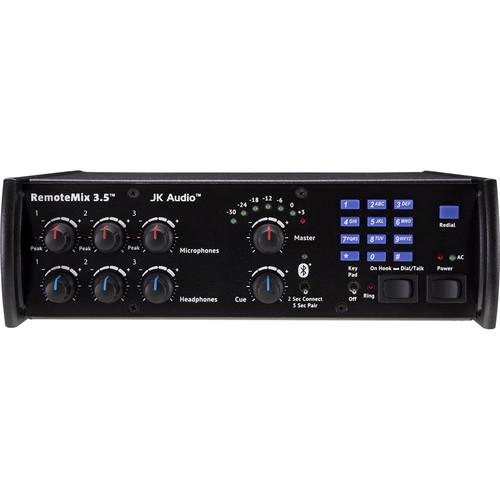

User Manual for JK Audio RemoteMix 3.5 - Broadcast Field Mixer Click to enlarge the picture
Contents of the user manual for the JK Audio RemoteMix 3.5 - Broadcast
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio RemoteMix 3.5 - Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The RemoteMix 3.5 from JK Audio is a three-channel field mixer and headphone amplifier, as well as a universal communications interface. The unit features a phone line hybrid and keypad, a PBX handset interface, and both wired and wireless cell phone interfaces.
The mixer is perfect for sports remotes and can be used as a phone line hybrid, for calling in to a studio talk show hybrid. Or it can be used as a front-end mixer for the user's POTS, ISDN, IP or smartphone codec. Three 1/4" IFB (Interruptible Foldback ) headphone feeds are perfect for TV work - send and receive interview audio and pull IFB out of any business phone system, even a cell phone or notebook.
A soft limiter prevents overdriving the phone line interfaces, while the XLR output is pre-limiter and full range. Convenient 3.5 mm send and receive jacks are provided for recording a show, or mixing in an MP3 player. The Bluetooth interface will connect in hands-free mode, allowing a two-way 3.4 kHz telecom bandwidth connection. The Bluetooth interface can also connect in wireless headphone mode offering a 20 kHz audio bandwidth, listen-only connection. - Three XLR microphone jacks
- Three 1/4" headphone jacks with individual level controls
- 3.5 mm send and receive jacks
- Phone line hybrid with DTMF keypad
- Universal PBX handset interface
- Wired phone headset interface (2.5 mm and 3.5 mm)
- Bluetooth wireless technology
- Powered via dual 9 V batteries or included 100~240 VAC external power supply
UPC: 814170010741 In the Box JK Audio RemoteMix 3.5 - Broadcast Field Mixer External Power Supply Detachable Power Cable 2.5 mm 3-Conductor Wireless Interface Cable 3.5 mm 4-Conductor Wireless Interface Cable 18" RJ22 Modular Handset Cord 60" RJ11 Phone Cord Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio RemoteMix 3.5 - Broadcast Field Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio RM3.5 Specs | Inputs | 3 x XLR Microphone
1 x 1/8" (3.5 mm) TRS mini Stereo Line
1 x 1/4" TRS Headphone Cue | | Input Impedance | Microphone: 2kΩ
Line: 20kΩ
Headphone Cue: 20kΩ | | Nominal Input Level | Microphone: -25 dBu (channel 3: Mic/Line pad switch = +6 dBu maximum)
Line: -10 dBm
Headphone Cue: -10 dBu | | Outputs | 1 x XLR (full 20 Hz to 20 kHz, +/-1.0 dB bandwidth)
1 x 1/8" (3.5 mm) Stereo Line
3 x 1/4" TRS Headphone | | Output Impedance | Stereo Line: 100Ω
Headphone: 8Ω | | Output Level | XLR: +16 dBu maximum
Stereo Line: -10 dBu nominal
Headphone: 1/3 W per channel | | Bluetooth | Frequency Response
Headset: 300 Hz to 3400 Hz
Headphone Mode: 30 Hz to 17 kHz | | Phone Line | Connector: RJ11C
PBX Interface: RJ22
Ringer: 0.5B REN
Isolation: 1,500 VAC | | Power Requirements | 100~240 VAC, 50/60Hz via included external power adapter or 2 x 9 VDC batteries | | Dimensions (WxDxH) | 9.5 x 8 x 3" (241 x 203 x 76 mm) | | Weight | 3.8 lb (1.7 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 13.2 x 9.6 x 4.3" |
