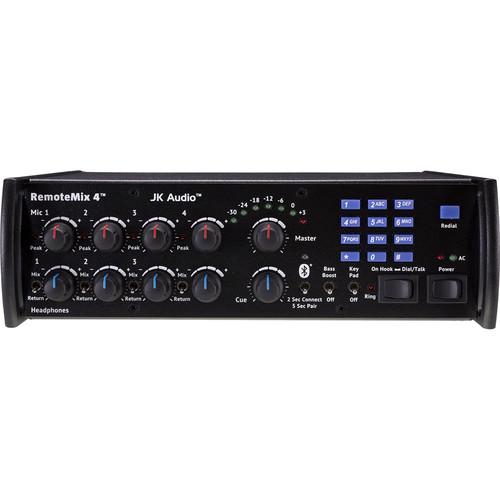

User Manual for JK Audio RemoteMix 4 Portable Broadcast Mixer with Phone Line Hybrid Click to enlarge the picture
Contents of the user manual for the JK Audio RemoteMix 4 Portable Broadcast
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio RemoteMix 4 Portable Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The RemoteMix 4 from JK Audio is a 4-channel field mixer, headphone amplifier, and communications interface, packed into a rugged enclosure that's smaller than a lunchbox. Designed to work together in the field with minimal setup, the components of the RemoteMix 4 are ideal for radio, television, or filmmaking.
The unit features a phone line hybrid and keypad, as well as a PBX handset interface, and a cell phone interface, providing terrific phone options for radio call-ins or live remotes. Four IFB feeds allow you to send and receive interview audio, as well as pull IFB from a business or cell phone.
The RemoteMix 4 first tries to connect to cell phones via Bluetooth wireless technology. If a connection can't be made, a 2.5mm jack allows a hard-wired connection. Other connectors include 4 XLR inputs with phantom power, an XLR line output, 4 1/4" headphone jacks, a 1/4" line input, and 3.5mm send and receive jacks.
The device also includes intelligent power management features. It offers two 9V battery bays, as well as an AC power supply. Since phantom power is not always needed, the phantom generator only operates when switched on via the rear panel. The AC power supply will only override the batteries if it is supplying power, so if the power goes out, the unit will automatically switch to battery power. One or 2 batteries can be used, and separate compartments are provided for hot-swapping batteries. - Compact and rugged design
- Field mixer, headphone amp, and communications interface in a single unit
- Ideal for radio and television applications
- Phone line hybrid, keypad, PBX interface, and cell phone interface are ideal for phone interviews and call-in programs
- Bluetooth wireless technology and 2.5mm jack provide cell connectivity options
- Mic input with phantom power via 4 XLR inputs
- Headphone connection via 4 1/4" jacks
- Separate headphone source selection and level controls
- XLR and 1/4" line outputs
- Standard 3.5mm send/receive jacks for recording audio or mixing in external audio sources
- Bass boost and soft limiter functions
- Separate 9V battery bays for hot-swapping, as well as an AC power supply
UPC: 814170010307 In the Box JK Audio RemoteMix 4 Portable Broadcast Mixer with Phone Line Hybrid Power Supply Cell Phone Connector Cable (36") 1-Year Limited Warranty User Manual PDF 303.8kbxrvxdcrrzvrrrtdzbs Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio RemoteMix 4 Portable Broadcast Mixer with Phone Line Hybrid in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio RemoteMix4 Specs | Connectors | 4 x XLR Mic Inputs w/ 48V Phantom Power
1 x XLR Line Mixer Output
1 x 1/4" Line Headphone Cue Input
4 x 1/4" Headphone Jacks
1 x 3.5mm Line Input
1 x 3.5mm Line Output
1 x 2.5mm Phone Input
1 x PBX Handset Interface
1 x Phone Jack
1 x Power Input | | Power | 2 x 9V Battery Bays
120-240 VAC | | Dimensions (WxDxH) | 9.5 x 8 x 3" (241 x 203 x 76mm) | | Weight | 3.8 lbs (1.7kg) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 13.228 x 9.764 x 4.173" |
