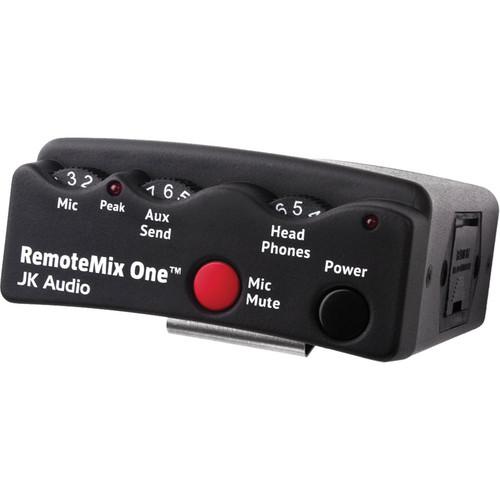

User Manual for JK Audio RemoteMix One - Field Interview Tool Click to enlarge the picture
Contents of the user manual for the JK Audio RemoteMix One - Field
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio RemoteMix One - Field contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The RemoteMix One from JK Audio is a flexible communications interface in a rugged beltpack design for field reporters and live remote talent. The unit allows for performing live, single-person interviews through a cell phone, and using the wired headset jack can provide two-way IFB connections through a cell phone or notebook for flexible remote monitoring.
A professional microphone preamp and a headphone amplifier provide excellent sound quality and a 3.5 mm stereo line input jack allows the recordings to be mixed into a broadcast. The 3.5 mm stereo line output jack provides the full bandwidth microphone signal on the left channel, and the return audio on the right channel.
The stereo headphone output provides a mix of the XLR microphone input, 3.5 mm input, and return audio. The 0.5 watt stereo headphone amplifier will cut through any crowd noise. The unit can be used as a headset replacement for normal voice calls, or to transmit full-bandwidth audio using third-party CODEC apps. Replaceable interface cables connect to most phones and notebooks. - 3.5 mm stereo line input and output
- 1/4" stereo headphone jack
- 3-Conductor 2.5 mm headset interface for most legacy phones
- 4-Conductor 3.5 mm headset interface for iPhone, most Android phones, and notebooks
- Over twenty hours of operation using a single 9 V alkaline battery
UPC: 814170010758 In the Box JK Audio RemoteMix One - Field Interview Tool Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio RemoteMix One - Field Interview Tool in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio RM1 Specs | Input | 1 x XLR Microphone
1 x 1/8" (3.5 mm) TRS mini Stereo Line | | Input Impedance | XLR: 2kΩ
Line: 20kΩ | | Nominal Input Level | XLR: -35 dBu
Line: -10 dBu | | Output | 1 x 1/8" (3.5 mm) TRS mini Stereo Line
1 x 1/4" TRS Headphone | | Output Impedance | Line: 100Ω
Headphone: 8Ω | | Output Level | Line: -10 dBu nominal
Headphone: 0.5 W per channel | | Power Requirements | 9 V battery (not included) | | Dimensions (WxDxH) | 4.7 x 3.75 x 1.7" (120 x 95 x 42 mm) | | Weight | 10 oz (275 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.7 x 5.4 x 2.4" |
