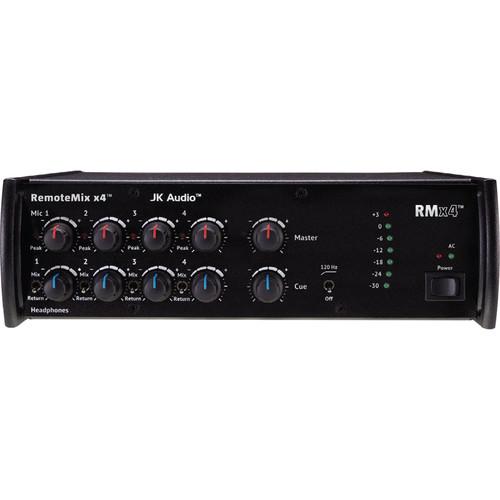

User Manual for JK Audio RemoteMix x4 Field Mixer Click to enlarge the picture
Contents of the user manual for the JK Audio RemoteMix x4 Field Mixer
- Product category: Field Mixers JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Field Mixers
|
User manual for the JK Audio RemoteMix x4 Field Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The RemoteMix x4 Field Mixer from JK Audio combines a four-channel field mixer with a four-channel headphone amplifier. The mixer includes four active balanced microphone inputs, direct drive DC coupled with XLR outputs, a soft limiter, and 1/8" send and receive jacks for recording or playing back of recorded material. The RMx4 is designed for news, sports, and live remotes, and can be used as a front-end mixer for your POTS, ISDN, IP, or smartphone. - Four XLR microphone jacks
- Individually switchable 48V phantom power
- Wired phone headset interface with 1/8" TRRS plug
- Powered via dual 9V batteries or included external power supply
UPC: 814170010895 In the Box JK Audio RemoteMix x4 Field Mixer Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio RemoteMix x4 Field Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio X4 Specs | Inputs | 4 x XLR female, microphone
1 x 1/8" (3.5 mm) jack, stereo Line
1 x 1/4" (6.35 mm) jack, headphone Cue | | Input Impedance | Microphone: 2 kOhms
Line: 20 kOhms
Headphone Cue: 20 kOhms | | Nominal Input Level | Microphone: -25 dBu nominal (Channel 3 & 4 have -40 dB Mic/Line pad switch Line level = 50k ohms, +20 dBu maximum)
Line: -10 dBu nominal
Headphone Cue: -10 dBu | | Phantom Power | 48 VDC with 6.8 kOhms supply resistance | | Outputs | 1 x XLR male, balanced audio
1 x 1/8" (3.5 mm) jack, line
4 x 1/4" (6.35 mm) jack, stereo Line | | Output Impedance | XLR: 50 Ohms
Line: 100 Ohms
Headphones: 8 Ohms | | Output Level | XLR: +16 dBu maximum (20 Hz - 20 kHz +/-1dB, 0.04% THD @ +16 dBu)
Line: -10 dBu nominal
Headphones: 1/3 W per channel | | Format | N/A | | Sampling Rate | N/A | | USB | N/A | | Power Requirement | 120 - 240 VAC, 50 - 60 Hz external power supply (included) or two 9 VDC batteries | | Dimensions | 9.5 x 8 x 3" (24 x 20 x 8 cm) | | Weight | 3.6 lb (1.6 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 13.2 x 9.6 x 4.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
