User Manual for JK Audio TAP-1 - Telephone Audio and Power Interface Click to enlarge the picture
Contents of the user manual for the JK Audio TAP-1 - Telephone Audio
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
 |
User manual for the JK Audio TAP-1 - Telephone Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|

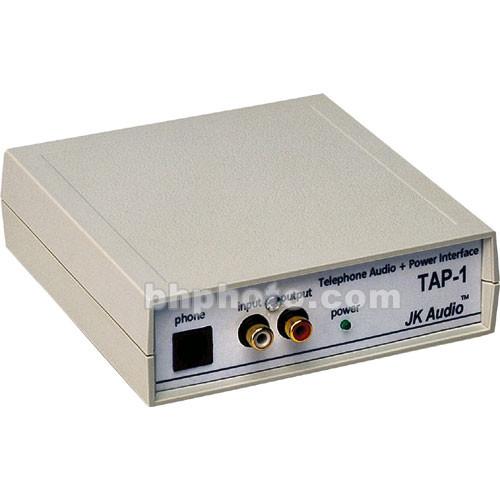

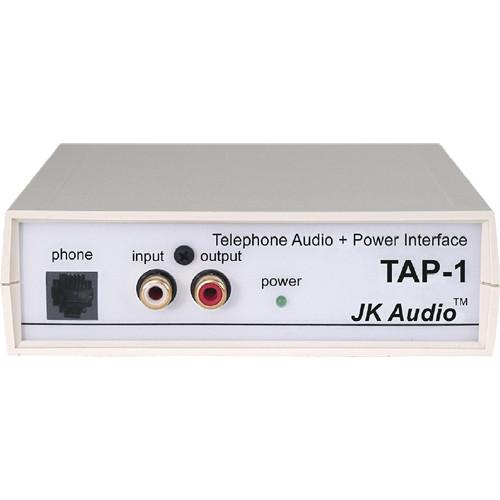

Product description The TAP-1 from JK Audio is a telephone interface box that provides the same electrical characteristics as a regular analog phone line, without having to connect to a phone line. The standard RJ-11 phone line jack found in most homes provides -48 volts DC that is sent from the phone company to power the phone, in addition to the incoming and outgoing audio signals. The TAP-1 provides the necessary interface and the -48 volt supply required by a telephone and then separates audio into transmit and receive signals. The unit can be used on a TV or film studio set, where a regular or cordless telephone is required and genuine sounding phone conversations need to be recorded. It can also act as a phone interface when using computer VoIP, to test telephone and voice coding algorithms, or to test phone line equipment. Note: The TAP-1 should not be connected to a regular phone line. - Interface box the provides the same electrical characteristics of a standard analog phone line
- Allows for recording true telephone "quality" into a computer or other recorder
- Can also be used with a cordless phone for use in VoIP applications

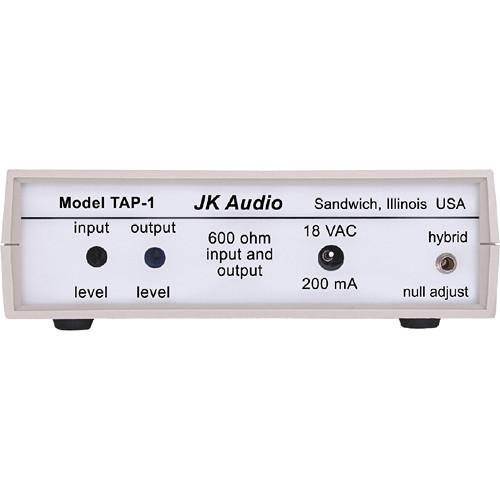

- Recessed input and output volume controls
- Hybrid null adjustment optimizes transmit and receive separation to >50dB
UPC: 814170010338 In the Box JK Audio TAP-1 - Telephone Audio and Power Interface External Power Supply Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio TAP-1 - Telephone Audio and Power Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio TAP1 Specs | Input | 1 x RCA | | Output | 1 x RCA | | Handset | RJ-11 | | Isolation | Not specified by manufacturer | | Phone Line | Not for use with a phone line. Emulates a wall jack connected to a phone line | | Impedance | 600Ω | | Power Requirements | 18VAC, 160mA (power adapter supplied) | | Dimensions (WxDxH) | 5.1 x 5.2 x 1.6" (130 x 132 x 41mm) | | Weight | 1 lbs (0.45 kg) | | | | Package Weight | 1.51 lb | | Box Dimensions (LxWxH) | 9.0 x 6.5 x 3.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
