User Manual for JK Audio THAT-2 Telephone Handset Audio Tap Click to enlarge the picture
Contents of the user manual for the JK Audio THAT-2 Telephone Handset Audio
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio THAT-2 Telephone Handset Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|

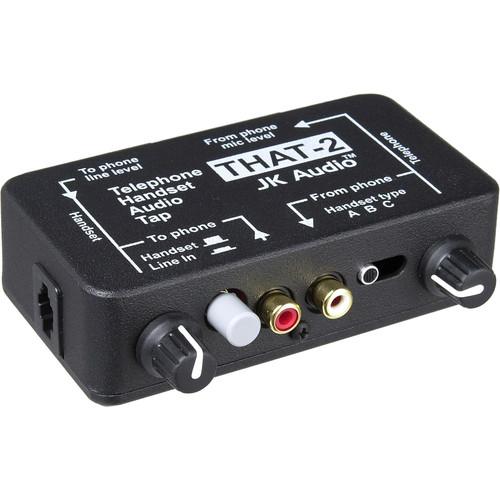

Product description The JK Audio THAT-2 is a telephone audio interface that connects between the telephone receiver and base. THAT-2 is designed to capture audio to record and play sound bytes or to send IFB dialog over phone lines. The compact telephone tap features balanced and unbalanced XLR and RCA I/O connectors.The audio connections are used for sending line level signal down phone lines or capturing a mix of send and receive audio. A 3-position switch enables THAT-2 to be used with either a carbon, dynamic or electret style receiver (receivers with keypads are not compatible). Level adjust dials provide control over send and receive levels. THAT-2 is a compact, passive device that requires no external power source. - Convenient Design
- THAT-2 is a compact telephone tap that connects between the receiver and base of any standard analog telephone. The tap allows users to send line level feeds down telephone lines or capture send and receive signal for sound byte recording.
- Handset Selector
- THAT-2 is compatible with dynamic, electret or carbon style receivers (handsets with keypads are not compatible).
- Balanced I/O
- A choice of balanced XLR and RCA unbalanced connections allow seamless integration with professional or consumer level audio gear.
UPC: 814170010352 In the Box JK Audio THAT-2 Telephone Handset Audio Tap 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio THAT-2 Telephone Handset Audio Tap in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio THAT2 Specs | Input | Balanced: XLR Female
Unbalanced: RCA Phono Jack | | Output | Balanced: XLR Male
Unbalanced: RCA Phono Jack | | Handset | Compatible with various carbon, dynamic and electret handsets.
Not for use with handsets that have keypads | | Isolation | Isolation 1500V | | Phone Line | RJ11C | | Impedance | Line Input: 10k ohms, 250 mV RMS, +12dBM
Line Output: 600 ohms, 100 mV RMS, -16dBm | | Power Requirements | Passive | | Dimensions | Not Specified by Manufacturer | | | | Package Weight | 0.77 lb | | Box Dimensions (LxWxH) | 5.75 x 4.4 x 2.25" |
