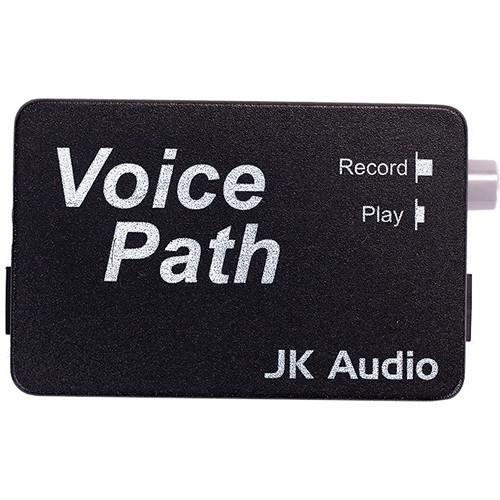

User Manual for JK Audio VOICE - Telephone Handset Audio Tap for Phone Conversation Recording to Computer Sound Cards Click to enlarge the picture
Contents of the user manual for the JK Audio VOICE - Telephone Handset
- Product category: Telephone Audio Interfaces JK Audio
- Brand: JK Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JK Audio Telephone Audio Interfaces
|
User manual for the JK Audio VOICE - Telephone Handset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JK Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JK Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JK Audio product will considerably shorten its lifespan!
|
Product description The JK Audio Voice Path is a simple telephone tap designed for perfect integration between telephones and a PC or MAC audio sound card. The idea behind the Voice Path allows users to capture conversations over telephone lines and record them to any DAW workstation without the use of expensive hardware. The unit is ideal for telephone interviews, transcription applications, weather and traffic reports, Ad creation and proofing and more. The Voice Path connects between the headset and telephone base, allowing passage of send and receive telephone audio. Stereo mini output and input cables (hardwired to unit) transfer line level signal between the Voice Path and computer sound card. A Play / Record toggle switch dictates signal flow from the Voice Path to the sound card and vice versa. - DAW Soundcard Solution
- The Voice Path conveniently bridges the gap between telephone lines and computer sound cards. The unit is designed to seamlessly send telephone audio directly to the sound card of a PC or MAC based DAW.
- Hardwired I/O Cable
- The unit features hardwired 1/8" (3.5mm) stereo mini cables that send and receive audio to and from a sound card I/O.
UPC: 814170010369 In the Box JK Audio VOICE - Telephone Handset Audio Tap for Phone Conversation Recording to Computer Sound Cards 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JK Audio VOICE - Telephone Handset Audio Tap for Phone Conversation Recording to Computer Sound Cards in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJK Audio VOICE Specs | Input | 1/8" (3.5mm) TRS Cable | | Output | 1/8" (3.5mm) TRS Cable | | Handset | Compatible with various carbon, dynamic and electret handsets.
Not for use with cellular phones or handsets that have keypads | | Isolation | Isolation 1500 Volts | | Phone Line | Modular 4pin/4wire handset jacks | | Impedance | Input: 10k ohms, 250mV RMS, +12dBM
Output: 2800 ohms, 100mV RMS, -16dBM | | Power Requirements | Passive | | Dimensions | not specified by manufacturer | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.7 x 4.4 x 2.2" |
