User Manual for JLCooper Eclipse BTX Midnight Click to enlarge the picture
Contents of the user manual for the JLCooper Eclipse BTX Midnight
- Product category: Edit Controllers JLCooper
- Brand: JLCooper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JLCooper Edit Controllers
 |
User manual for the JLCooper Eclipse BTX Midnight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JLCooper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JLCooper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JLCooper product will considerably shorten its lifespan!
|

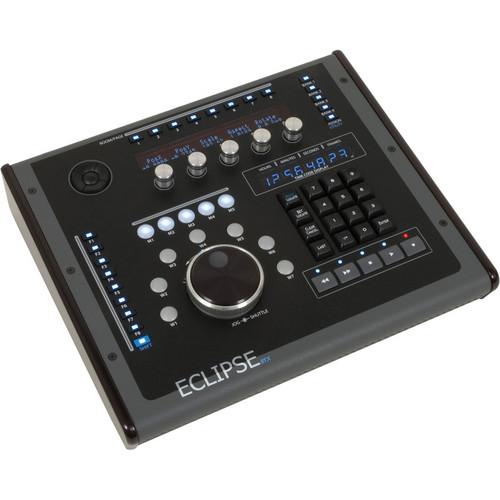

Product description The JLCooper Eclipse BTX Midnight is a primary transport controller for video editing applications such as Apple Final Cut Pro and provides a tactile control surface. It also sports a black finish and allows you to arrange your workspace to include tablets, keyboards, and other expansion options like the Eclipse MX Midnight, when it is combined with Eclipse SX.Incorporating a custom-made optically encoded jog dial/wheel, the controller offers professional transport buttons along with a set of 23 function keys illuminated by a white backlight. Endowed with a compact design (13.5 x 11.5 x 3.25"), the BTX Midnight still manages to easily house 2 interface card slots. Interface compatibility is offered for RS-232, RS-422, Quad RS-422, USB, Ethernet, and GPI (8 in / 8 out) interface cards. Peripheral connectivity is augmented via an expansion port that allows you to connect the BTX with other Eclipse and MCS-3000 devices. The Eclipse BTX Midnight is RoHS compliant. - Primary transport controller offers a tactile control surface for video editing applications
- Supports video editing applications such as Apple Final Cut Pro
- Sports a black/midnight finish
- Allows you to arrange your workspace to include tablets, keyboards, and other expansion options like the Eclipse MX Midnight, when it is combined with Eclipse SX
- Includes a custom-made optically encoded jog dial/wheel
- Offers professional transport buttons along with a set of 23 function keys illuminated by a white backlight
- Compact design - 13.5 x 11.5 x 3.25"
- 2 interface card slots support RS-232, RS-422, Quad RS-422, USB, Ethernet, and GPI (8 in / 8 out) cards
- Offers augmented connectivity via an expansion port allowing you to connect with Eclipse and MCS-3000 devices
In the Box JLCooper Eclipse BTX Midnight User Manual Power Supply Power Cord 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JLCooper Eclipse BTX Midnight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

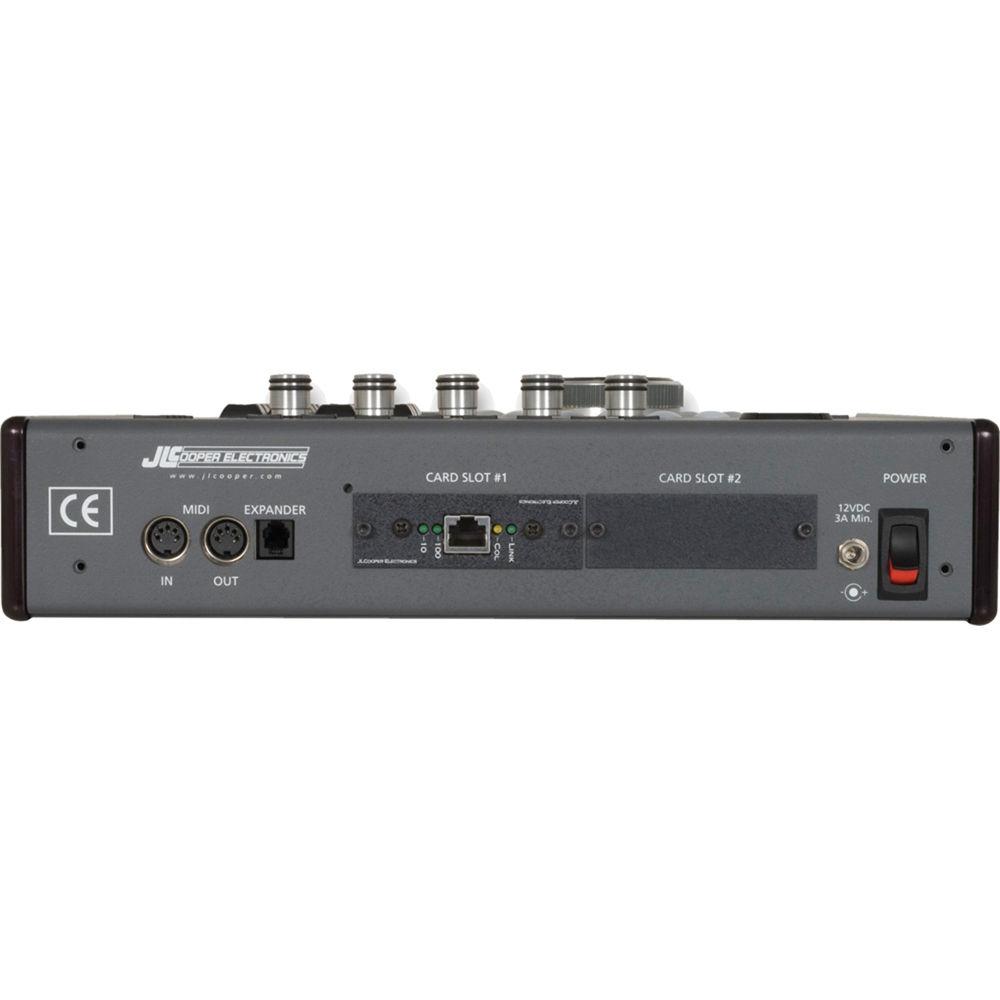

Technical parametersJLCooper BTX Specs | MIDI | 1 in, 1 out | | Expander | Expander port | | Card Slot | 2 card slots for optional MCS-interface cards available in:
RS-232
RS-422
Quad RS-422
USB
Ethernet
GPI (8 in / 8 out) | | Dimensions (WxHxD) | 13.5 x 3.3 x 11.5" (34.3 x 8.3 x 29.2cm) |
