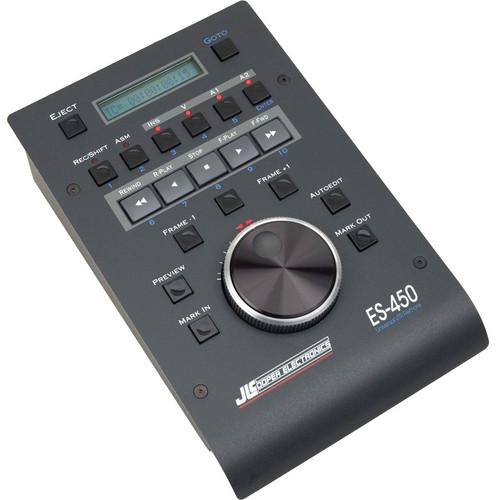

User Manual for JLCooper ES-450 J4 RS-422 4-Channel Jog Shuttle Remote Click to enlarge the picture
Contents of the user manual for the JLCooper ES-450 J4 RS-422 4-Channel Jog
- Product category: Jog Shuttle Controllers JLCooper
- Brand: JLCooper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JLCooper Jog Shuttle Controllers
|
User manual for the JLCooper ES-450 J4 RS-422 4-Channel Jog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JLCooper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JLCooper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JLCooper product will considerably shorten its lifespan!
|
Product description The JLCooper ES-450 J4 RS-422 Dual Channel Jog/Shuttle Remote is an independent machine controller with a 4-channel RS-422 interface for controlling 4 VTRs (video-tape recorders), DDRs (direct-to-disc recorders) or server channels. It is ideal for professional and semi-professional VTRs / DDRs that support Sony 9-pin protocol (P2 protocol). Featuring an ergonomic design, the JLCooper Dual Channel remote has a concentric jog wheel and shuttle ring that allow convenient picture search operations. The function buttons have a natural-feeling key arrangement with clear labels and the transport keys are easily reachable. It is equipped with a numeric keypad for direct time-code entry, a backlit LCD for time-code display, and supports drop, non-drop, VITC/LTC, and CTL time-codes. The JLCooper Dual Channel Jog/Shuttle remote allows for remote track arming and forward/reverse frame bumps. It features 7 locate points for sending transports instantly, and supports 24/25/29.97/30 fps. Besides being compatible with 9-pin equipped VTRs / DDR's, the Jog/Shuttle remote also supports servers from Sony, Panasonic, JVC, Doremi, Grass Valley, Harris, and others. - Independent machine controller with a dual channel RS-422 interface for controlling 4 VTRs (video-tape recorders), DDRs (direct-to-disc recorders) or server channels
- Ideal for professional and semi-professional VTRs (video-tape recorders) / DDRs (direct-to-disc recorders) that support Sony 9-pin protocol (P2 protocol)
- Concentric jog wheel and shuttle ring for convenient picture search operations
- Function buttons - natural-feeling key arrangement and clear labels
- Numeric keypad for direct time-code entry and backlit LCD for time-code display
- Supports drop, non-drop, VITC/LTC, and CTL time-codes
- Allows for remote track arming and forward/reverse frame bumps
- Supports 24/25/29.97/30 fps
- Compatible with 9-pin-equipped VTRs / DDR's
- Supports servers from Sony, Panasonic, JVC, Doremi, Grass Valley, Harris, and others
In the Box JLCooper ES-450 J4 RS-422 4-Channel Jog/Shuttle Remote 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JLCooper ES-450 J4 RS-422 4-Channel Jog Shuttle Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJLCooper ES-450J2 Specs | Construction | All metal construction | | Control Interface | Two channel RS-422 (9-pin) | | Dimensions | 6.5 x 10.5 x 3.5" (165 x 267 x 89mm) | | Weight | 4 lbs (1.8kg) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 14.2 x 8.1 x 6.3" |
