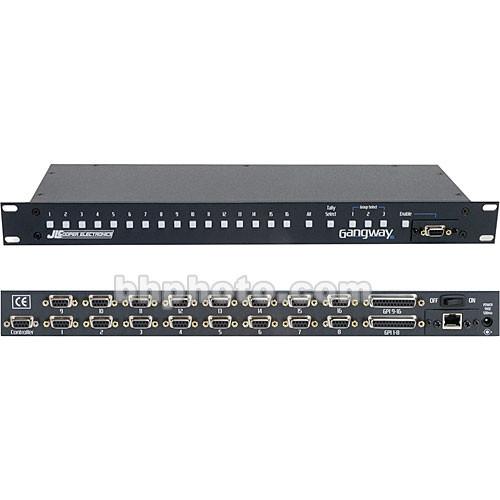

Product description The GangWay16 from JL Cooper is a compact, easy-to-use, one-port RS-422 gang roll switcher and GPI trigger box. It allows you to control up to 16 decks or video servers from a single 9-pin controller. The front panel includes a lighted button for clear indication as to the status of each machine, a gang roll button to quickly enable all machines, 3 user preset groups, and a tally select button. The 22 illuminated push button switches show configuration and the port routing. A front mounted RS-422 port provides a convenient connection for a jog/shuttle remote or other device. The unit has 16 RS-422 ports on the rear panel and a rear mounted RS- 422 control input. The rear panel also includes two 25-pin D-Sub connectors for GPI I/O, a power switch and an additional interface slot. The interface slot can accept an optional interface card which can act as a master Input, connecting the GangWay16 to either 10/100 Ethernet, USB, RS-232 or RS-422. This can be used to remotely change the switching configuration of the GangWay16 itself, or as the source of commands for controlling connected VTRs, DDRs or servers. - 16-port "gang roll" router for RS-422 decks
- Allows you to control up to 16 decks or video servers from one 9-pin controller
- 22 illuminated pushbutton switches to configure and show the port routing.
- Connections include two 9-pin D-Sub connectors for controllers (one on the rear panel, one on the front panel) and sixteen 9-pin D-Sub connectors for devices such as VTR decks, video servers and switchers
- You can communicate with GangWay16 over LAN or over the internet, for remote control and switching functionality - ideal for remote truck or studio applications
- A new feature allows the ES-SloMo - Universal Instant Replay Controller to directly interface with GangWay16 to provide for control up to 16 RS-422 machines or server channels, using the GangWay16 as the machine interface
In the Box JLCooper GangWay16 - Gang Roll Switcher/GPI Trigger Box External Power Supply One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JLCooper GangWay16 - Gang Roll Switcher GPI Trigger Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJLCooper GANGWAY-16 Specs | Connectors | 1 x 9-pin D-Sub (front panel)
17 x 9-pin D-Sub (rear panel)
2 x 25-pin D-Sub GPI I/O
1 x RJ-45 Ethernet | | Power Requirements | 9VDC at 500mA (0.5A) center positive (via included external power supply) | | Dimensions (WxDxH) | 19 x 5.5 x 1.7" (483 x 140 x 43mm) | | Weight | 5 lbs (2.3kg) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.5 x 7.1 x 4.3" |
