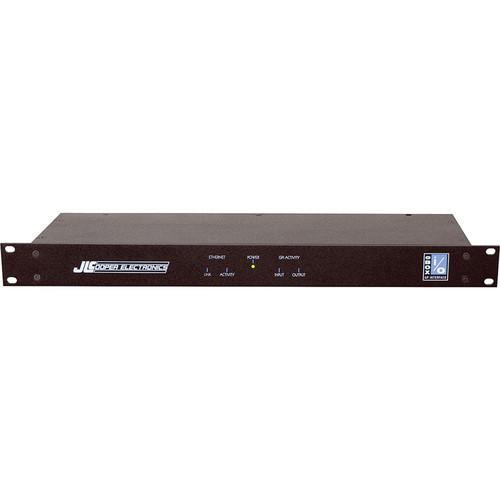

User Manual for JLCooper gBox - GP Mega Interface Click to enlarge the picture
Contents of the user manual for the JLCooper gBox - GP Mega Interface
- Product category: Controller Options JLCooper
- Brand: JLCooper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JLCooper Controller Options
|
User manual for the JLCooper gBox - GP Mega Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JLCooper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JLCooper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JLCooper product will considerably shorten its lifespan!
|
Product description The JLCooper gBox - GP Mega Interface is a hardware interface offering 48 GPI inputs and 48 outputs. A compatible interface card is required to be incorporated for proper operation. You can use any of the following four JLCooper interface cards (sold separately), depending on your needs:
MCS-3000 Series 9-Pin/RS-422 Interface Card (model # 920465)
MCS-3000 Series RS-232 Interface Card (model # 920466)
MCS-3000 Series USB Interface Card (model # 920467)
MCS-3000 Series Ethernet Interface Card (model # 920394)
Depending on which card you use, you can enjoy extended control over 10/100 Base-T (Ethernet), USB, RS-422, or RS-232.
Up to 8 gBox units can be connected to control up to 432 inputs and 432 outputs. This gBox is also compatible with the eBox I/O for opto-isolated inputs and relay outputs and is equipped with a locking power connector and a universal power supply. - Key Features
-
- Hardware interface with 48 GPI inputs and 48 outputs
- A compatible MCS-3000 Interface Card is required for proper operation (Ethernet, USB, RS-422, or RS-232)
- Up to 8 gBox units can be connected for control of a maximum of 432 inputs and 432 outputs
- Compatible with the eBox I/O for opto-isolated inputs and relay outputs
- Equipped with locking power connector and universal power supply
In the Box JLCooper gBox - GP Mega Interface Universal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JLCooper gBox - GP Mega Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJLCooper GBOX Specs | GPI | 48 inputs
48 outputs | | Dimensions | 19 x 1.8" (48 x 4.6 cm) | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 21.3 x 7.0 x 4.3" |
