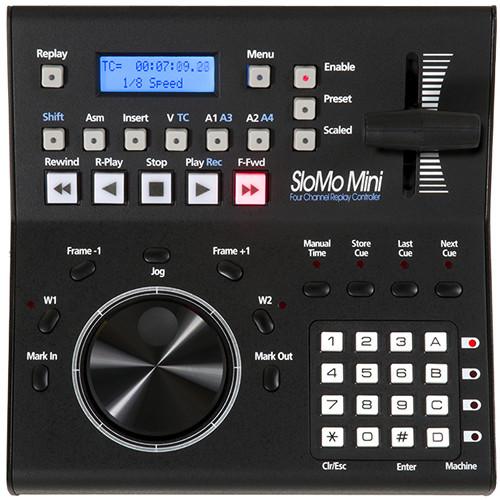

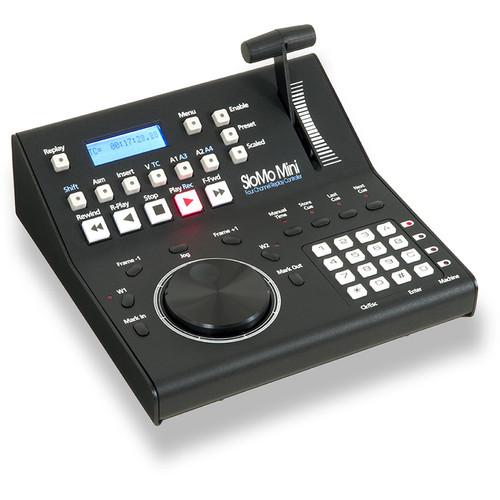

User Manual for JLCooper SloMo Mini Four Channel Replay Controller Click to enlarge the picture
Contents of the user manual for the JLCooper SloMo Mini Four Channel Replay
- Product category: Jog Shuttle Controllers JLCooper
- Brand: JLCooper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JLCooper Jog Shuttle Controllers
 |
User manual for the JLCooper SloMo Mini Four Channel Replay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JLCooper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JLCooper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JLCooper product will considerably shorten its lifespan!
|
Product description Designed for news, sports, scoreboard, and other slow-motion editing scenarios, the JLCooper SloMo Mini is an instant-replay controller capable of interfacing with up to four VTR decks simultaneously via RS-422 connections. Using the programmable jog wheel or numeric keypad, specific footage can be cued and then manipulated with the T-bar in real-time. Using the included 4-way breakout/power cable, the SloMo Mini is compatible with many standard VTR decks and servers that support the RS-422 control protocol including the AJA KiPro, Blackmagic Design HyperDeck Studio, and VideoDevices PIX 250i, 260i, and 270i. Further expansion via separately available Gangway 16 and Gangway 32 boxes allow for simultaneous control of many more decks than with the standard included cable. Features - Simultaneous Control of up to 4 VTRs or DDRs via standard 9 pin (P2) protocol
- Simultaneous Control of up to 16 VTRs or DDRs with the addition of the separately available Gangway16 or Gangway32
- T-Bar control for slow motion control using Shuttle, Jog or Variable Play commands
- Dynamic slow motion replays directly accessed from integrated T-Bar mechanism
- User programmable T-Bar limits and behavior
- Full size numeric keypad to enter and recall cue locations and timecode
- Easy to read 2 line x 16 VF Display
- Capacity to store 1000 cue points or 400 in and out points with varispeed
- Ability to transfer cues to/from another SloMo Mini or computer for backup or editing
- 2 user assignable buttons
- Log operation for QC Applications
- 16 variable replay speeds
- Controls most VTRs and hard disk based systems
- Direct support for Doremi Video Servers
- Direct support for Odetics compatible video servers

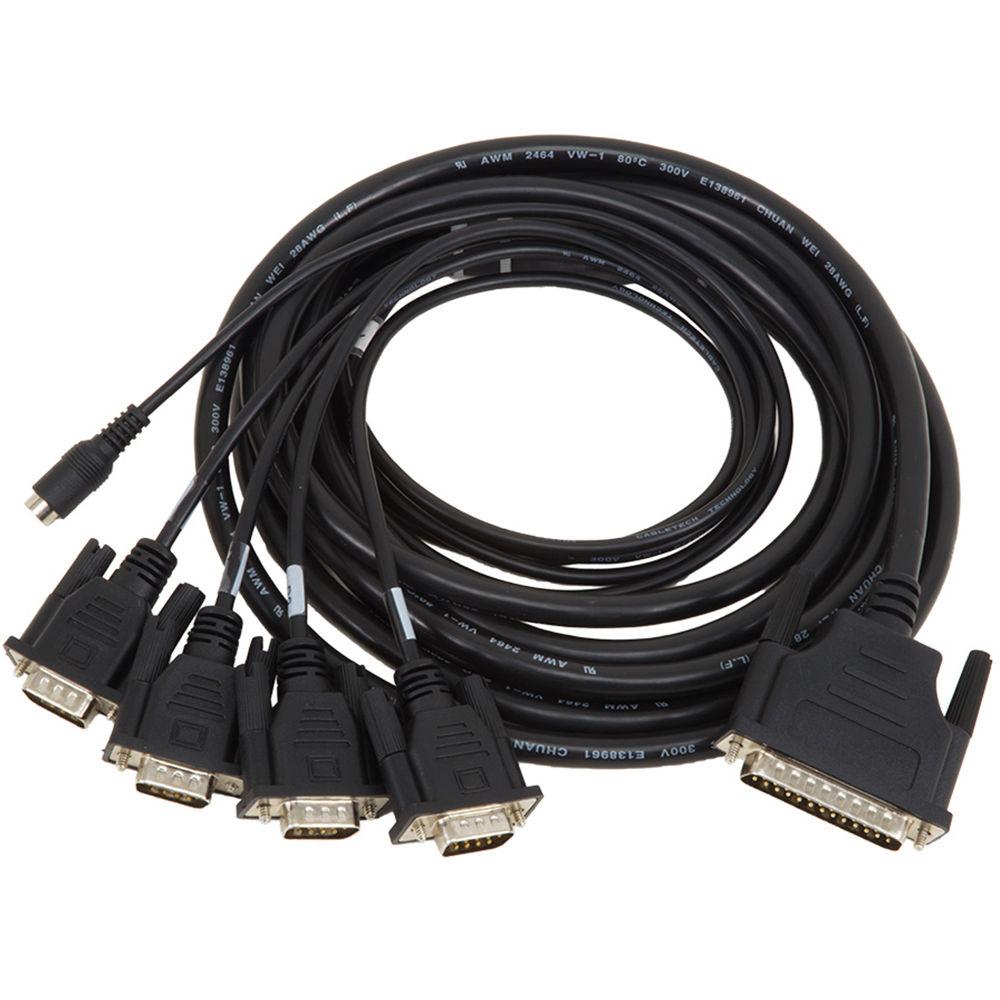

In the Box JLCooper SloMo Mini Four Channel Replay Controller 10' 4-Channel Breakout/Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JLCooper SloMo Mini Four Channel Replay Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJLCooper SLOMO MINI Specs | Dimensions | 7.75 x 7.75 x 3.75" / 197 x 197 x 95 mm | | Weight | 2.0 lb / 1.7 kg | | | | Package Weight | 5.26 lb | | Box Dimensions (LxWxH) | 10.15 x 9.85 x 6.85" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
