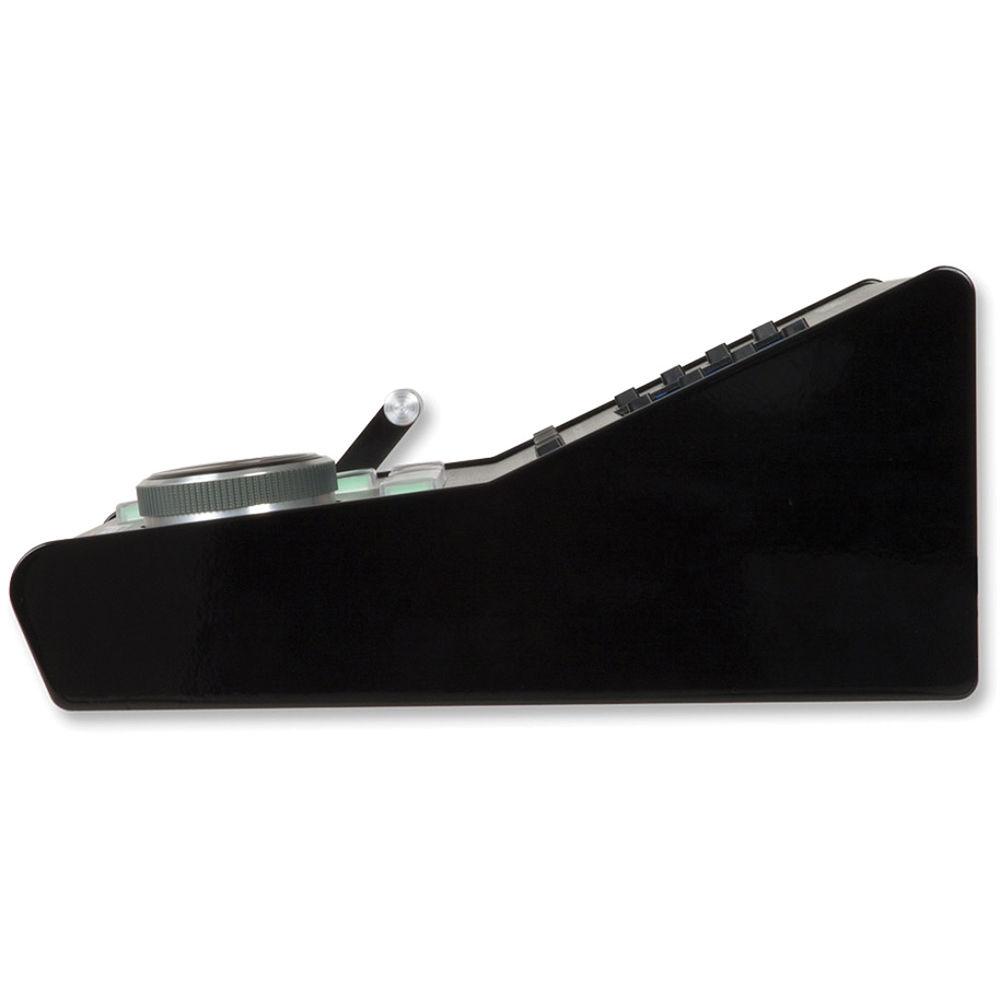

User Manual for JLCooper SM-JLLSN SloMo Elite Video Server Controller with JLCooper Optical Jog Shuttle Click to enlarge the picture
Contents of the user manual for the JLCooper SM-JLLSN SloMo Elite Video Server
- Product category: Event Controllers JLCooper
- Brand: JLCooper
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JLCooper Event Controllers
 |
User manual for the JLCooper SM-JLLSN SloMo Elite Video Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JLCooper product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JLCooper user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JLCooper product will considerably shorten its lifespan!
|

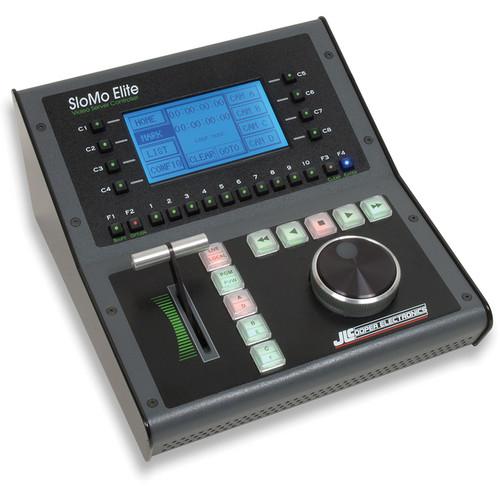

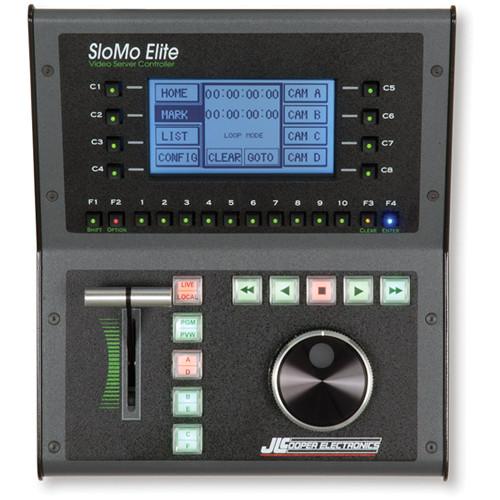

Product description The SM-JLLSN SloMo Elite Video Server Controller with JLCooper Optical Jog / Shuttle from JLCooper is a customizable slow motion controller for software developers and OEMs, with the JLCooper Optical jog/shuttle and dual color LED relegendable key switches. The SM-JLLSN closely integrates with your proprietary software, creating an elegant and complete control package for daily broadcast, sports, instant replay, scoreboard, and other applications. The controller utilizes USB 2.0 and Ethernet interface, and requires code level support from application developers. - JLCooper Optical jog/shuttle mechanism
- Standard T-Bar, Detented T-Bar, Touch Sensitive Motorized T-Bar
- Dual-color LED relegendable key switches
- 4.5 x 2.5" LED backlit white graphic display, 240 x 128 pixels
- USB 2.0 dull speed drivers & libraries for Windows and Mac
- USB Serial Port Emulation
- 10/100 standard Ethernet interface
- Supports TCP (Client/Server) & UDP: Static or DHCP configuration
- Standard internal international switching power supply
- IAP: Field Software Updates can be installed via USB or Ethernet
In the Box JLCooper SM-JLLSN SloMo Elite Video Server Controller with JLCooper Optical Jog / Shuttle Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JLCooper SM-JLLSN SloMo Elite Video Server Controller with JLCooper Optical Jog Shuttle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

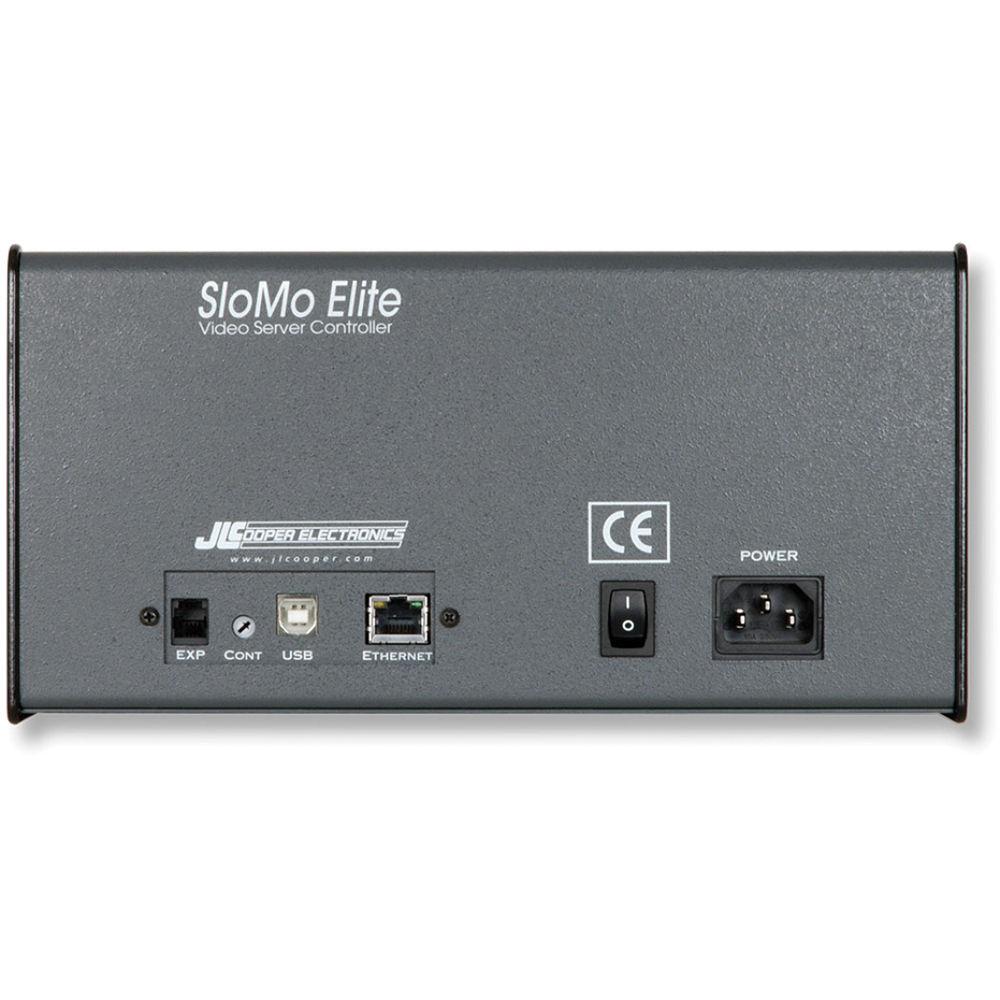

Technical parametersJLCooper ELITE-SM-JLLSN Specs | Connectors | 1 x USB 2.0, port
1 x RJ45, 10/100 port
Power jack | | LED Display | Dimensions: 4.5 x 2.5" (11.4 x 6.4 cm)
Resolution: 240 x 128 pixels | | Supports | TCP (Client/Server) & UDP - Static or DHCP Configuration | | Dimensions | 13.5 x 11.5 x 3.25" (34.29 x 29.21 x 8.26 cm) | | Weight | 7.35 lb (3.33 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 16.8 x 12.6 x 8.2" |
