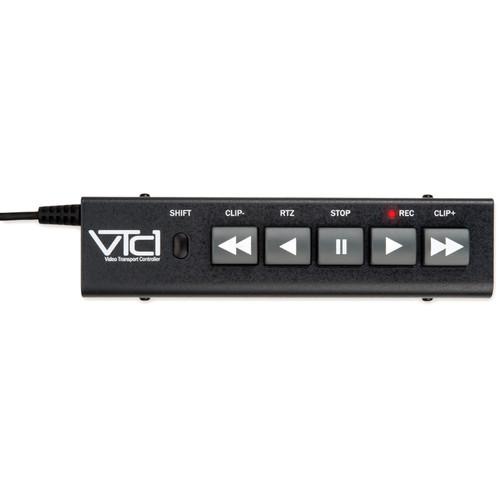

JLCooper VTC1 Video Transport Controller

Search your instruction manual in PDF to download

User Manual for JLCooper VTC1 Video Transport Controller

Click to enlarge the picture
JLCooper VTC1 Video Transport Controller Contents of the user manual for the JLCooper VTC1 Video Transport Controller
  • Product category: Jog Shuttle Controllers JLCooper
  • Brand: JLCooper
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for JLCooper Jog Shuttle Controllers

User manual for the JLCooper VTC1 Video Transport Controller contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any JLCooper product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official JLCooper user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a JLCooper product will considerably shorten its lifespan!



Product description

The VTC1 Video Transport Controller from JLCooper allows you to control file based recorders such as the Black Magic Hyperdeck, AJA Ki Pro, Sound Devices Pix 260, FFV Micron, DataVideo, Sony, and more. It provides remote control of standard transport functions like play forward, play reverse, still, stop, rewind, and fast forward. The controller automatically configures itself to provide clip browsing on Ki Pro, Micron, DataVideo, Sony, and other decks that support this feature, thus providing a shortcut to quickly skip 10 seconds forward or back in time. The VTC1 is a low power controller that can typically be powered from the RS-422 port of the device. If an external power supply is needed, the optional JLCooper PSDC117 (North America/Japan) or PSDC230 (Europe) are recommended. Alternately, you can use a power supply rated for 9-12VDC at 100mA or greater. The VTC1 also features an all metal construction and professional transport buttons. It connects easily using the included 9.8' cable with 9-pin / RS-422 connectors.
  • Compact universal RS-422 remote
  • Comes with play, reverse play, still, stop, record controls, and 2x, 4x, 8x, 16x shuttle speed controls
  • Supports frame +/- with most recorders
  • Steel enclosure with professional transport buttons
  • No external power supply required
  • Automatically configures for clip browsing on Ki Pro, Micron, sound devices, and other decks controls
  • Supports most disk-based video recorders
  • Can be powered from the RS-422 port
In the Box JLCooper VTC1 Video Transport Controller
  • Cable
  • Guides & Manuals Table of Contents




    Upload User Manual

    Have you got an user manual for the JLCooper VTC1 Video Transport Controller in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for JLCooper VTC1 Video Transport Controller can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for JLCooper VTC1 Video Transport Controller can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the JLCooper VTC1 Video Transport Controller can be downloaded in PDF format at the link stated below.
    Download PDF user manual - JLCooper VTC1 Video Transport ControllerDownload PDF User Manual - JLCooper VTC1 Video Transport Controller
    (PDF file, 0.63 MB)


    Technical parameters

    JLCooper VTC1 Specs

    Compatibility Black Magic Hyperdeck Studio / Studio Pro, AJA Ki Pro / Rack, sound devices Pix 260, FFV Micron, DataVideo HDR-60/70 DN-600/700, Sony XDCAM, professional RS-422 / 9-pin VTRs, fast forward video Micron / Omega, video devices PIX 250i / 260i / 270i
    Controls Play forward, play reverse, still, stop, rewind, fast forward
    Speed 2x, 4x, 8x, 16x shuttle
    Material Metal
    Cable Type 9-pin / RS-422 cable
    Connector Type D-Subminiature connector with 2.1 mm power jack
    Power Supply 9 to 12 VDC at 100 mA or greater Power adapter not included
    Power Connector 2.1 mm barrel connector, center positive (polarity)
    Cable Length 9.8' (3.0 m)
    Dimensions 6.6 x 1.6 x 0.6" (16.8 x 4.1 x 1.6 cm)
    Weight 0.6 lb (0.3 kg)
    Package Weight 0.6 lb
    Box Dimensions (LxWxH) 8.5 x 2.5 x 2.2"
