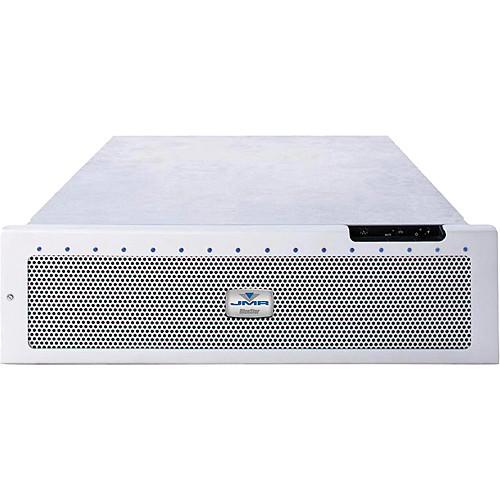

User Manual for JMR Electronics 32TB 16 Bay PCIe x8 Extender Split BP Storage System RAID Drives Cables Click to enlarge the picture
Contents of the user manual for the JMR Electronics 32TB 16 Bay PCIe
- Product category: Hard Drive Arrays JMR Electronics
- Brand: JMR Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JMR Electronics Hard Drive Arrays
|
User manual for the JMR Electronics 32TB 16 Bay PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JMR Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JMR Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JMR Electronics product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More ubrvtxtqxutvzcuwssx The JMR ELECTRONICS 32TB 16 Bay PCIe x8 Extender Split BP Storage System/ RAID/ Drives/ Cables is an Enterprise-class storage device that comes equipped with a RAID controller, 6.0 Gb/s SATA hard drives, and cables. The system boasts 32 TB of data storage capacity and up to 1750 MB/s data transfer rates. Its 16 hot-swappable disk drive bays are also capable of supporting 3.0 Gb/s SAS hard drives (not included).
The device is powered by dual 350 W (N+1) hot-swappable power supplies and also features four high-velocity hot-swappable cooling fans that provide an efficient thermal solution. Also present is an internal SAS Expander for single cable connection to a SAS host controller, as well as a 5-slot Gen 2 x8 PCI Express (PCIe) backplane offering expansion ports for all compatible user-installed PCIe cards. The backplane comes with a x16 PCIe host switch card.
The Extender's 16 hard disk drives are connected via an internal SAS controller that occupies 1 or 2 of the 5 PCIe slots. The other 3 or 4 PCIe slots are usable for any PCIe compatible cards, including NICs, HBAs, RAID controllers and more. Essentially, the Extender broadens your host server's PCI Express bus outside the server, offering extra slots for any application. The 16 drive storage subsystem in the common Extender enclosure may or may not be used, at the user's choice.
In order to connect the Extender to your server, you will need to have an x8 PCI Express external port on said server. A single low-cost plug-in card provides this port, occupying one PCIe slot in the host and creating an "external" x8 PCIe connector, making the x8 PCIe bus available to the Extender. - Enterprise-class storage device
- Comes equipped with a RAID controller
- 32 TB of data storage capacity
- Up to 1750 MB/s data transfer rates
- 16 hot-swappable disk drive bays are also capable of supporting 3.0 Gb/s SAS hard drives (not included)
- Powered by dual 350 W (N+1) hot-swappable power supplies
- 4 high-velocity hot-swappable cooling fans that provide an efficient thermal solution
- Internal SAS Expander for single cable connection to a SAS host controller
- 5-Slot Gen 2 x8 PCI Express (PCIe) backplane offering expansion ports for all compatible user-installed PCIe cards. The backplane comes with a x16 PCIe host switch card
- 16 hard disk drives are connected via an internal SAS controller that occupies 1 or 2 of the 5 PCIe slots. The other 3 or 4 PCIe slots are usable for any PCIe compatible cards, including NICs, HBAs, RAID controllers and more
- Extender broadens your host server's PCI Express bus outside the server, offering extra slots for any application. The 16 drive storage subsystem in the common Extender enclosure may or may not be used, at the user's choice
- To connect the Extender to your server, you will need an x8 PCI Express external port on said server. A single low-cost plug-in card provides this port, occupying one PCIe slot in the host and creating an "external" x8 PCIe connector, making the x8 PCIe bus available to the Extender
In the Box JMR Electronics 32TB 16 Bay PCIe x8 Extender Split BP Storage System/ RAID/ Drives/ Cables 6.0 Gb/s SATA Hard Drives Cables Table of Contents
|
Upload User Manual
Have you got an user manual for the JMR Electronics 32TB 16 Bay PCIe x8 Extender Split BP Storage System RAID Drives Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJMR Electronics EXTN-8 Specs | Capacity | 32 TB | | Hard Disk Drives | 6.0 Gb/s SATA (included) Also supports 3.0 Gb/s SAS drives (not included) | | Transfer Rate | Up to 1750 MB/s | | Connectivity | Internal SAS Expander for single cable connection to a SAS host controller | | Backplane | 5-Slot Gen 2 x8 PCI Express (PCIe) backplane offering expansion ports for all compatible user-installed PCIe cards
Drives connected via internal SAS controller that occupies 1 or 2 of 5 PCIe slots
x16 PCIe host switch card included | | Power Supply | 2x 620 W (N+1) hot-swappable supplies with Power Factor Correction
4x high-velocity internal hot-swappable cooling fans
Input: 100-260 VAC; 50-60 Hz
Output: +5.0 V @ 35 A; -5.0 V @ 0.5 A; +12 V @ 22 A; -12 V @ 0.8 A; +3.3 V @ 20 A | | Dimensions (HxWxD) | 5.21 x 19 x 21" (13.2 x 48.3 x 53.3 cm) | | Weight | 35.05 lb (15.9 kg) excluding drives | | | | Package Weight | 96.0 lb | | Box Dimensions (LxWxH) | 21.0 x 17.42 x 5.21" |
