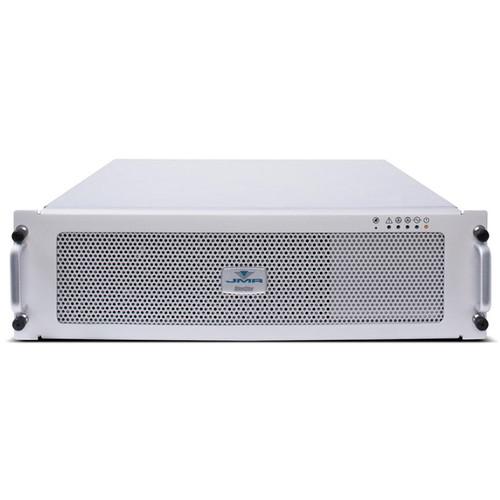

User Manual for JMR Electronics 5-Slot x8 PCIe Extender Click to enlarge the picture
Contents of the user manual for the JMR Electronics 5-Slot x8 PCIe Extender
- Product category: Expansion Chassis JMR Electronics
- Brand: JMR Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JMR Electronics Expansion Chassis
|
User manual for the JMR Electronics 5-Slot x8 PCIe Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JMR Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JMR Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JMR Electronics product will considerably shorten its lifespan!
|
Product description Provided by third party: The BlueStor 5 Slot x8 PCIe Extender is an ideal solution for adding multiple PCIe peripherals to your existing system.
The Enterprise-class 5 Slot x8 PCIe Extender features four high-velocity hot-swappable cooling fans, 1200W universal input power supply, an external PCIe connector for cable connection to a PCIe X8 host controller and a 5-slot PCI Express (PCIe) backplane providing expansion ports for any compatible user-installed PCIe cards. The five PCIe slots are x8 electrical and x16 physical PCIe 2.0 slots.
The five PCIe x16 slots (x8 electrically) are all full-length, full-height and double spaced to accommodate double-wide GPUs and other peripherals normally occupying the space of two slots, and may be used for any PCIe compatible cards including GPUs, capture cards, HBAs, RAID controllers, NICs and other devices. The BlueStor 5 Slot x8 PCIe Extender essentially extends your host server's PCI Express bus outside the server, providing additional slots for any application.
- Key Features
-
- Five PCIe 2.0 x16 (physically, x8 electrically) double-spaced slots
- PCIe 2.0/3.0 compatible host adapter included
- Support for PCIe devices requiring Auxillary PCIe power
Table of Contents
|
Upload User Manual
Have you got an user manual for the JMR Electronics 5-Slot x8 PCIe Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJMR Electronics EXTN-8S-G4-4U Specs | | | Product Type | System bus extender | | Width | 25 in | | Depth | 33 in | | Height | 17 in | | Weight | 67.9 lbs | | | | Expansion Slots | 5 (total) / 5 (free) x PCI Express x8 - full-length, full-height | | | | Features | 4 hot-swappable fans | | | | Power Device | Power supply | | Power Provided | 1200 Watt |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
