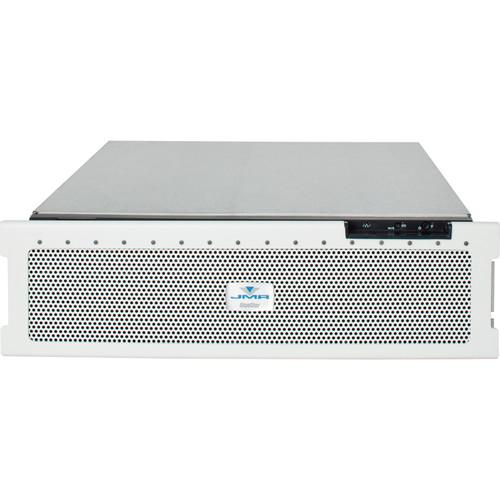

User Manual for JMR Electronics 64TB 3G BlueStor Sixteen-Bay SHARE Network Storage Server Click to enlarge the picture
Contents of the user manual for the JMR Electronics 64TB 3G BlueStor Sixteen-Bay
- Product category: Network Attached Storage Drives JMR Electronics
- Brand: JMR Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JMR Electronics Network Attached Storage Drives
|
User manual for the JMR Electronics 64TB 3G BlueStor Sixteen-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JMR Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JMR Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JMR Electronics product will considerably shorten its lifespan!
|
Product description JMR Electronics has built the 64TB (16 x 4TB) 3G BlueStor Sixteen-Bay SHARE Network Storage Server with a modular design that uses no cables in the data path. This design allows for easy service, improves airflow, and offers fewer points of failure. Each of its sixteen bays houses a 4TB 3.5" enterprise-class hard drive to deliver a total raw capacity of 64TB. These SATA III drives spin at a rate of 7,200 rpm and have 64MB of cache. In addition, the drives are vertically mounted and housed in vibration dampening canisters to increase signal integrity and airflow.
This 3 RU rackmounted system comes with two internal 6Gb SAS expanders, which are connected to a hardware RAID controller. This dual expander architecture allows JMR to configure the drives into a RAID 50 mode for increased performance. At the core, the 3G BlueStor NAS sports an Intel Z97 Express chipset, a 3.5 GHz quad-core Intel i7 processor, 32GB of DDR3 ECC memory, and six PCIe expansion slots. This combination of features allows data to be quickly transferred to a network via two Gigabit Ethernet and two 10 10 GbE ports.
Powered by euroNAS software OS, the BlueStor has AFP, NFS, SMB/CIFS, and FTP support as well as built-in iSCSI target and Fibre Channel target support for VMware ESX, Microsoft Hyper-V, and Citrix XEN solutions. It also offers asynchronous replication that copies storage data to another server, snapshot replication that transfers live data quickly and reliability, and point-in-time snapshots for recovering files to an earlier state.
To help provide always-available data, four N+1 configured high-velocity fans and two 620W N+1 hot-swappable power supplies keep the system as well as drives running. Furthermore, the BlueStor is SES 2.0 compliant and provides real-time status for every bay. You are alerted to activity and failures via indicators and audible alarms. - 3 RU 16-Bay SAS/SATA NAS server
- 16 X 4TB 3.5" enterprise-class hard drives
- Quad-core 3.5 GHz Intel Core i7 processor
- EuroNAS Ultra premium 64-bit operating system
- RAID 0/1/4/5/6/10/40/50/60
- 4 x GbE Network Ports (RJ45)
- Internal read and write transfers of up to 1800 MB/s
- Hot-swap drives, PSUs, cooling modules
In the Box JMR Electronics 64TB (16 x 4TB) 3G BlueStor Sixteen-Bay SHARE Network Storage Server Limited 3-Year Warranty Limited 5-Year Warranty Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JMR Electronics 64TB 3G BlueStor Sixteen-Bay SHARE Network Storage Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJMR Electronics RS3UD-EUZ87-G3-6-64T Specs | | | CPU | Intel Core i7 Quad-Core | | Total Installed Memory | 32 GB ECC DDR3 | | | | Total Raw Capacity | 64 TB | | Included Drives | 16 x 4 TB 3.5" HDD | | Interface | SATA III | | | | Number of Bays | 16 x 2.5"/3.5" | | Connections | 2 x RJ45 (10GbE)
2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SAS, SATA | | PCI Expansion | 3 x PCIe Gen 3 x16
3 x PCIe Gen 2 x1 | | Link Aggregation and Failover Support | Yes | | | | Supported Protocols | AFP
CIFS/SMB
FTP
NFS
iSCSI |
