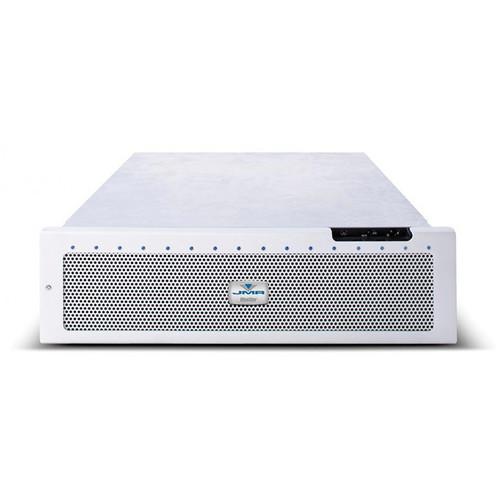

User Manual for JMR Electronics 96TB 16-Bay SAS Expander JBOD Array Click to enlarge the picture
Contents of the user manual for the JMR Electronics 96TB 16-Bay SAS Expander
- Product category: Hard Drive Arrays JMR Electronics
- Brand: JMR Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JMR Electronics Hard Drive Arrays
|
User manual for the JMR Electronics 96TB 16-Bay SAS Expander contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JMR Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JMR Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JMR Electronics product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More racqawcqvuexraecstvreqafeurrdtawxd Designed for demanding data recording, including video and audio streams, the 96TB 16-Bay SAS Expander JBOD Array from JMR Electronics provides users with sixteen 3.5" hot-swappable SAS-2/SATA III 6 Gb/s drive bays, each of which is equipped with a 6TB 3.5" hard drive, for a total storage capacity of 96TB. While this system does not contain any RAID controllers, they can be turned into a RAID once connected to a host-resident RAID controller. This model is for those who already have a RAID controller, or those who only need JBOD storage by using an SAS host bus adapter without RAID. Additionally, the dual SAS expanders within this array allow SAS expansion (daisy-chaining) from one unit to another, all connected to the same host computer, for up to seven total chassis (112 disk drives). This array has a 3 RU form factor and can be mounted in compatible rackmounts, where it interfaces with your setup using an SAS connection. It also features dual hot-swappable cooling and power modules, is SES 2.0 compliant, has a split backplane, and includes cables. Protection is provided by a limited 3-year warranty. General Features - 3 RU 16-Bay Rackmount Enclosure
- Sixteen 3.5" Disk Canisters
- Hot-Swappable Hard Drives
- Dual Hot-Swappable Cooling and Power Modules
- SAS/SATA 3 Gb/s or 6 Gb/s disk drive bays
In the Box JMR Electronics 96TB 16-Bay SAS Expander JBOD Array (16 x 6TB) Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JMR Electronics 96TB 16-Bay SAS Expander JBOD Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJMR Electronics SASS-JD-G3-6-96T-NO Specs Capacity | 96 TB (16 x 6 TB) | Drive Bays | 16 x 3.5" SAS-2/SATA III 6 Gb/s | Interface | Dual SAS | Form Factor | 3 RU | Cooling | Dual Hot Swappable Cooling Modules | Power | Dual Hot Swappable Cooling Modules | Compliance | SES 2.0 compliant | Dimensions | Not specified by manufacturer | Weight | 20 lb / 9.1 kg |
