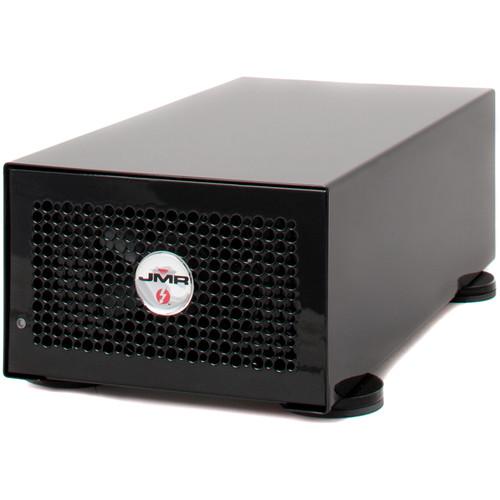

User Manual for JMR Electronics Lightning XD Dual-Slot PCIe to Thunderbolt 2 Expansion Chassis Click to enlarge the picture
Contents of the user manual for the JMR Electronics Lightning XD Dual-Slot PCIe
- Product category: Expansion Chassis JMR Electronics
- Brand: JMR Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JMR Electronics Expansion Chassis
|
User manual for the JMR Electronics Lightning XD Dual-Slot PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JMR Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JMR Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JMR Electronics product will considerably shorten its lifespan!
|
Product description The Lightning XD Dual-Slot PCIe to Thunderbolt 2 Expansion Chassis from JMR Electronics is equipped with two full-height, half-length PCIe slots that operate mechanically at x8 and electrically at x4. Each PCIe slot will only support bus powered PCIe cards. The advantage of this chassis having PCIe slots is that it will allow PCIe cards to be utilized with systems that do not have any available PCIe slots, such as the 2013 Mac Pro. Common applications of PCIe expansion cards include SAS/SATA and Fibre channel host bus adapters and RAID controllers, video capture cards, audio interface cards, 10GbE network cards, and more.
For connecting to your system, this chassis uses two Thunderbolt 2 ports. Both Thunderbolt 2 ports operate with bi-directional transfer speeds of up to 20 Gb/s, with one port being used to connect this expansion chassis to your system and the other being used to daisy chain compatible peripherals. Included with this Dual-Slot PCIe to Thunderbolt 2 Expansion Chassis is an 84W power supply and protection is provided by a limited 1-year warranty.
Please bear in mind that this chassis will not support full-height, full-length cards or cards that require additional power. Common Applications - SAS/SATA host bus adapters and RAID controller cards
- Fibre channel host bus adapters and RAID controller cards
- 10GbE network adapter cards
In the Box JMR Electronics Lightning XD Dual-Slot PCIe to Thunderbolt 2 Expansion Chassis 84W Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JMR Electronics Lightning XD Dual-Slot PCIe to Thunderbolt 2 Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJMR Electronics LTNG-XD-B Specs | | | Expansion Slots | 2 x PCIe x8 (x4 mode) | | Ports | 2 x Mini DisplayPort Thunderbolt 2 | | | | Power Source Type | 84 W Internal PSU | | | | Dimensions | 4.0 x 5.5 x 11.0" / 10.2 x 14.0 x 27.9 cm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 14.4 x 8.9 x 8.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
