User Manual for Jobu Design FB-TM2 Top-Mount Flash Bracket Click to enlarge the picture
Contents of the user manual for the Jobu Design FB-TM2 Top-Mount Flash Bracket
- Product category: Gimbal Head Accessories Jobu Design
- Brand: Jobu Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jobu Design Gimbal Head Accessories
 |
User manual for the Jobu Design FB-TM2 Top-Mount Flash Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jobu Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jobu Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jobu Design product will considerably shorten its lifespan!
|

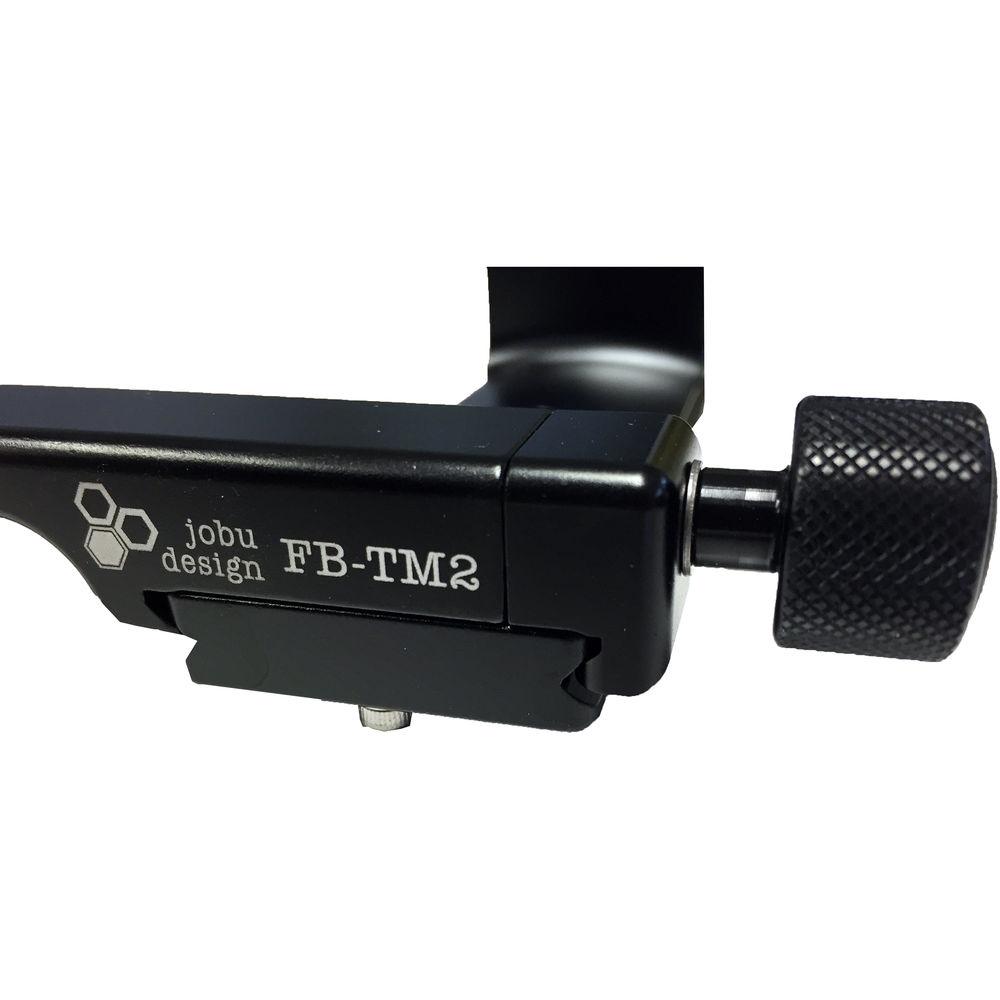

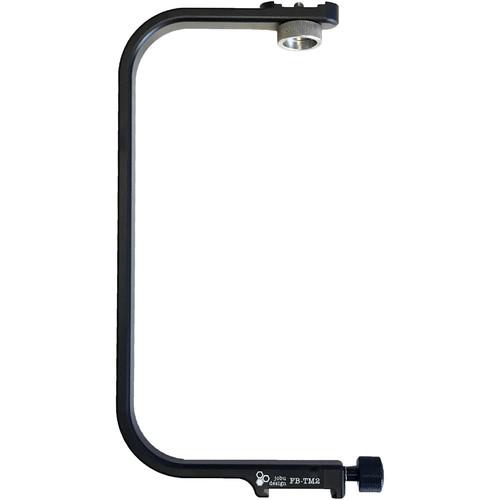

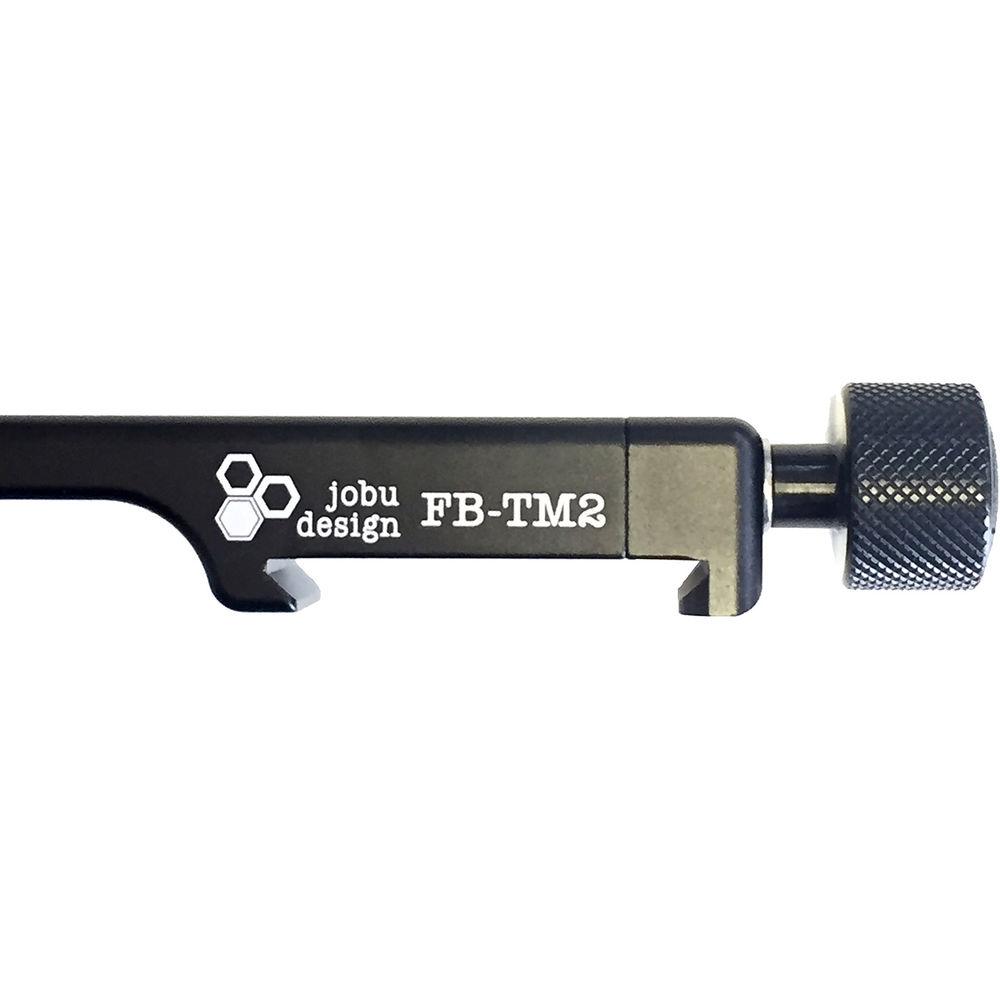

Product description The FB-TM2 Top-Mount Flash Bracket from Jobu Design is a straight flash bracket that is for use with a telephoto lens and a top-mount gimbal style head. It can also be used with a ball head or handheld. The bracket mounts directly to a replacement foot or lens plate, and therefore doesn't need to be adjusted to shoot in a vertical orientation. The clamp is Arca-type compatible, and it requires a plate with a double dovetail design. You need 0.75" of free room to attach the bracket to the plate. This allows the lens to shoot in a vertical orientation by simply releasing the lens collar lock and turning the camera. The flash bracket places the flash approximately 12" above the center of the telephoto lens, which extends the light higher and further for objects that are far away. The bracket is machined from a solid billet brick of 6061-T6 aluminum, and the clamp's locking knob is made of stainless steel. Also, the graphics are laser-engraved directly onto the bracket. Furthermore, the aluminum has been black anodized, which makes the bracket resistant to abrasions and corrosion. Most hot shoes mount right on the top of the bracket, but an ADPT-SC29 adapter is required for the Nikon SC-29 flash cord. - The clamp is Arca-type compatible, and mounts directly on a double dovetail plate
- Because the lens rotates on the lens collar, the straight bracket does not require movement
- Works seamlessly with Jobu Design gimbal heads
- Black anodized machined 6061-T6 aluminum is resistant to abrasions and corrosion
- The bracket places the flash ~12" above the center of the telephoto lens
UPC: 689076540032 In the Box Jobu Design FB-TM2 Top-Mount Flash Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jobu Design FB-TM2 Top-Mount Flash Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJobu Design FB-TM2 Specs | Material of Construction | 6061-T6 aluminumStainless steel | | Flash Mount | 1/4"-20 | | Dimensions | 11 x 0.75" (28 x 1.9 cm) | | Weight | 8.3 oz (235 g) | | | | Package Weight | 0.71 lb | | Box Dimensions (LxWxH) | 11.8 x 8.6 x 1.6" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
