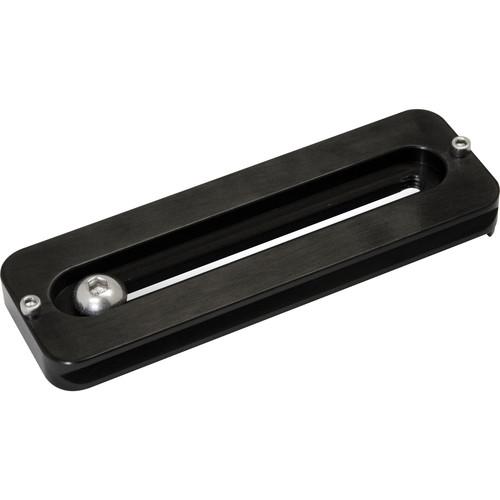

User Manual for Jobu Design NX2 Surefoot Lensplate Click to enlarge the picture
Contents of the user manual for the Jobu Design NX2 Surefoot Lensplate
- Product category: Tripods & Support Jobu Design
- Brand: Jobu Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Jobu Design Tripods & Support
|
User manual for the Jobu Design NX2 Surefoot Lensplate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Jobu Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Jobu Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Jobu Design product will considerably shorten its lifespan!
|
Product description The Jobu Design NX2 Surefoot Lensplate (4.5") is designed to safely mount and secure most small telephotos, such as a 300 mm F/4, 70-200 F/2.8 or F/4, 400 F/5.6, 300mm F/2.8 and other similar lenses, to your tripod. It features double safety-stops and a double-dovetail profile (for using quick release flash brackets), and it's compatible with all other North American Arca-Swiss-style lensplates. It also has a built-in anti-twist flange to prevent your lens from unscrewing during use. This lensplate is similar to the NX1, but offers an additional 1" of room for longer lens-feet, or for mounting accessories, or for more balance adjustment.
Pick a plate that is 1" longer than the mounting-foot on your lens to allow enough room for a flash bracket with quick release to be added. Most small lenses use 1 mounting screw. Most medium to large lenses use 2 or more mounting screws. - Double-dovetail design enables use of our Quick Release flash brackets (requires 3/4" of lensplate exposed past your lens foot)
- Curved hard-stop prevents rotation of lenses
- One 1/4"-20 captive screw, two safety-screws, and 5/32" and 3/32" Allen keys are included
- Hard-anodized black finish
- Compatible with all Arca-Swiss-style clamps
UPC: 689076162913 In the Box Jobu Design NX2 Surefoot Lensplate (4.5") 1/4"-20 Captive Screw 2 x Safety Screws 5/32" and 3/32" Allen Keys Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Jobu Design NX2 Surefoot Lensplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJobu Design SF-NX2 Specs | | | Package Weight | 0.22 lb | | Box Dimensions (LxWxH) | 4.5 x 1.4 x 0.6" |
